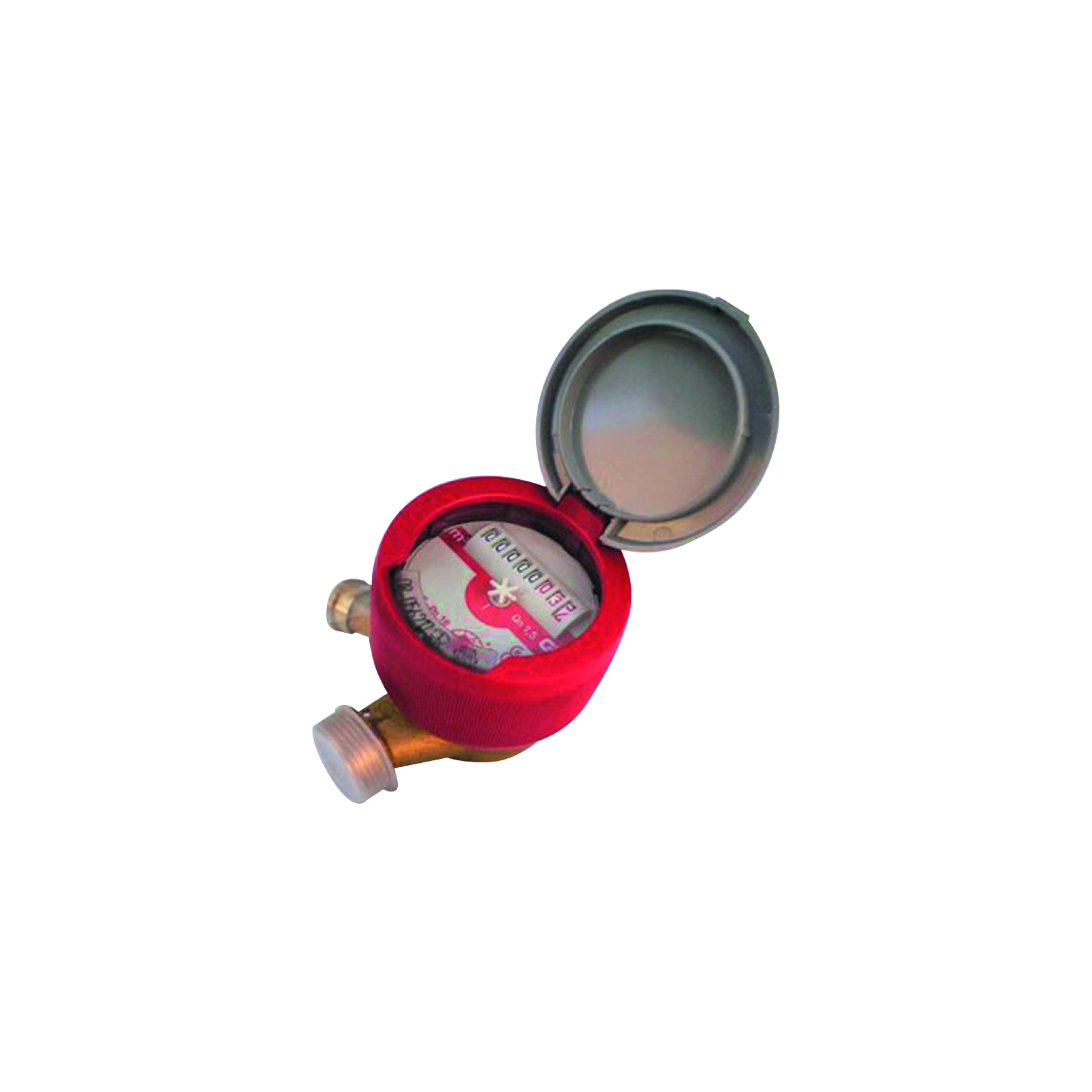

Hot Water Meter
Single jet hot water meter 8 rolls
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070505 |
HOT WATER METER - L. 110 mm - Ø 1/2" |
€54,75 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070506 |
HOT WATER METER - L. 130 mm - Ø 3/4" |
€74,55 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070507 |
HOT WATER METER - L. 160 mm - Ø 1" |
€197,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Hot water meter with dry dial-plate and 8 rolls.
Product features
- single jet
- MID homologated (Excluding SKU 70507)
- class B
- complete with fittings and metric stamp
Technical Features
| SKU 70505 | |
|---|---|
| MAX CAPACITY | 3 m3/h |
| NORMAL CAPACITY | 1,5 m3/h |
| MINIMUM CAPACITY | 15 l/h |
| MINIMUM READING | 0,05 l/h |
| MAX PRESSURE | 16 bar |
| WORKING TEMPERATURE | 30°C ÷ 90°C |
| DIAMETER | Ø 1/2" |
| LENGTH | 110 mm |
| SKU 70506 | |
|---|---|
| MAX CAPACITY | 5 m3/h |
| NORMAL CAPACITY | 2,5 m3/h |
| MINIMUM CAPACITY | 25 l/h |
| MINIMUM READING | 0,05 l/h |
| MAX PRESSURE | 16 bar |
| WORKING TEMPERATURE | 30°C ÷ 90°C |
| DIAMETER | Ø 3/4" |
| LENGTH | 130 mm |
| SKU 70507 (NOT MID APPROVED) | |
|---|---|
| MAX CAPACITY | 7 m3/h |
| NORMAL CAPACITY | 3,5 m3/h |
| MINIMUM CAPACITY | 35 l/h |
| MINIMUM READING | 0,05 l/h |
| MAX PRESSURE | 16 bar |
| WORKING TEMPERATURE | 30°C ÷ 90°C |
| DIAMETER | Ø 1" |
| LENGTH | 160 mm |
