Hidden Reducer
For single wall rigid system
UNI EN 14471 - UNI 11528 - UNI 7129 RULES
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000051388 |
HIDDEN REDUCER - M Ø 60 mm - F Ø 50 mm |
€12,25 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051364 |
HIDDEN REDUCER - M Ø 80 mm - F Ø 50 mm |
€13,15 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000051369 |
HIDDEN REDUCER - M Ø 80 mm - F Ø 60 mm |
€10,35 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

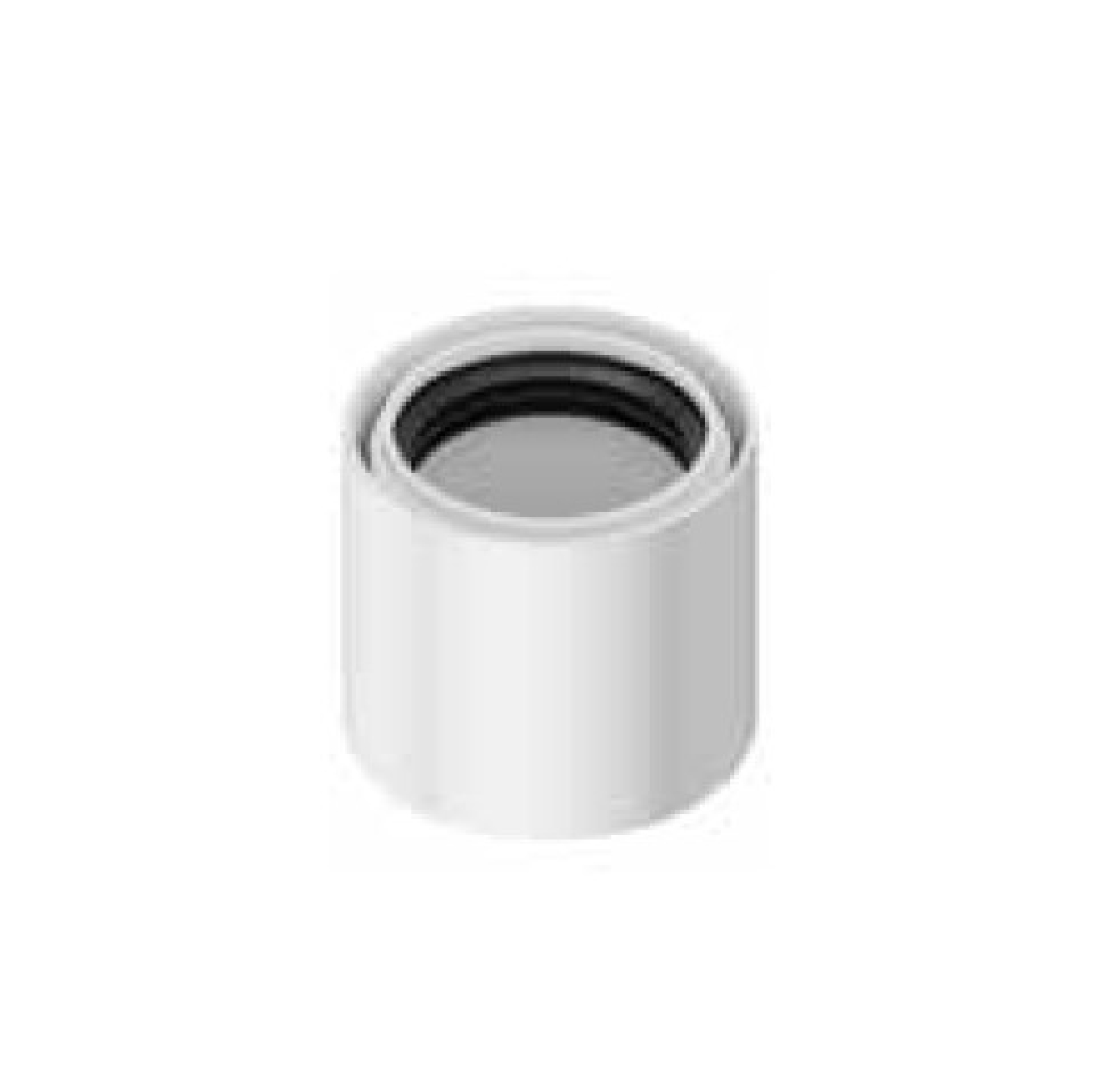

Hidden reducer of small dimensions for the connection of two sections of the visible pipes.
Product features
- ideal for boilers located in small spaces
- the pipe fits inside the reduction, without increasing the length of the pipe section
- made in the diameters: M Ø 60 mm - F Ø 50 mm / M Ø 80 mm - F Ø 50 mm / M Ø 80 mm - F Ø 60 mm
- finished in RAL9010 color
Technical Features
| DESIGNATION | T120 H1 W 2 O00 LI E U |
|---|---|
| TYPE OF MATERIAL | self-extinguishing PPs |
| PRESSURE RESISTANCE | with EPDM gaskets conforming to the EN 14241 standard |
| APPLICATION RANGE | condensing boilers and cooking steam exhaust |
| CORROSION RESISTANCE | type 2 |
| SUITABLE FUELS | methane gas |
| FIRE REACTION | Class "E" (according to EN 13501-1) |
| OPERATING TEMPERATURE | continuous operation up to 120°C wet under pressure with EPDM gasket |

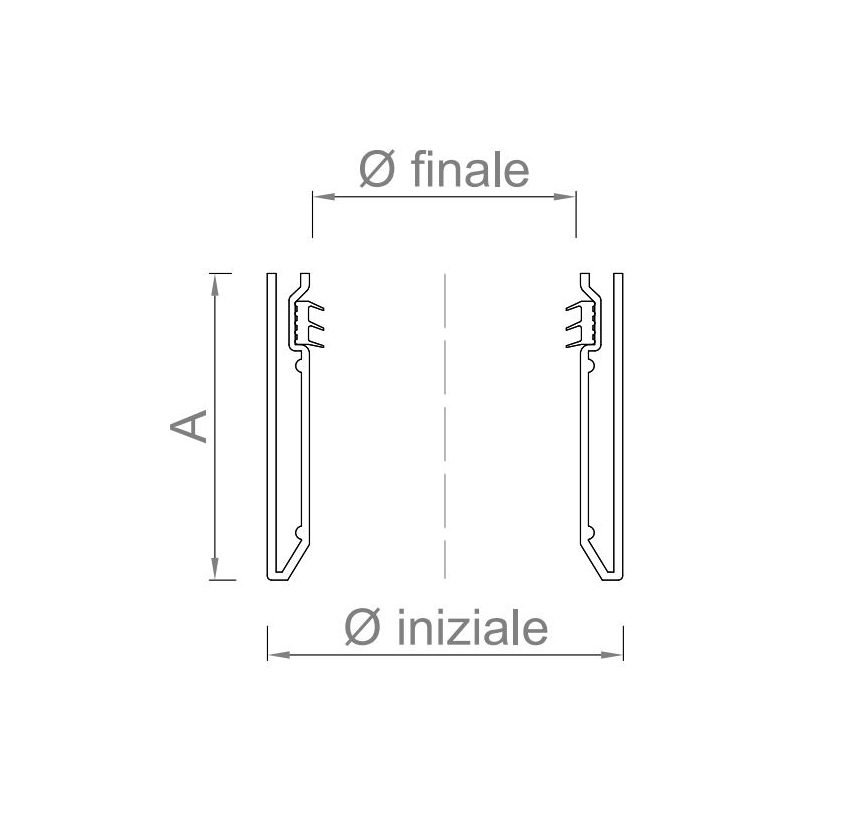

| SKU | Ø M initial | Ø F final | A |
|---|---|---|---|
| 51388 | Ø 60 mm | Ø 50 mm | 69 |
| 51364 | Ø 80 mm | Ø 50 mm | 69 |
| 51369 | Ø 80 mm | Ø 60 mm | 69 |
