Double Line Reduction Group for LPG
Version 2ND Stage with/without OPSO shut-off valve, flow rate 500 kg/h
ON REQUEST, AVAILABLE MAX PRESSURE 100 MBAR
FOR HIGHER FLOW RATE OR DIFFERENT MODELS, PLEASE ASK OUR SALES DEPARTMENT FOR INFORMATION
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000013050 |
 DOUBLE LINE REDUCING GROUP FOR LPG 2ND STAGE - flow rate 500 kg/h |
€7.258,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000013051 |
 DOUBLE LINE REDUCING GROUP FOR LPG 2ND STAGE - flow rate 500 kg/h - WITH OPSO SHUT-OFF VALVE |
€8.360,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Double line reduction group for LPG version 2ND Stage with/without OPSO shut-off valve, consisting of two identical lines, one service and one relief line.

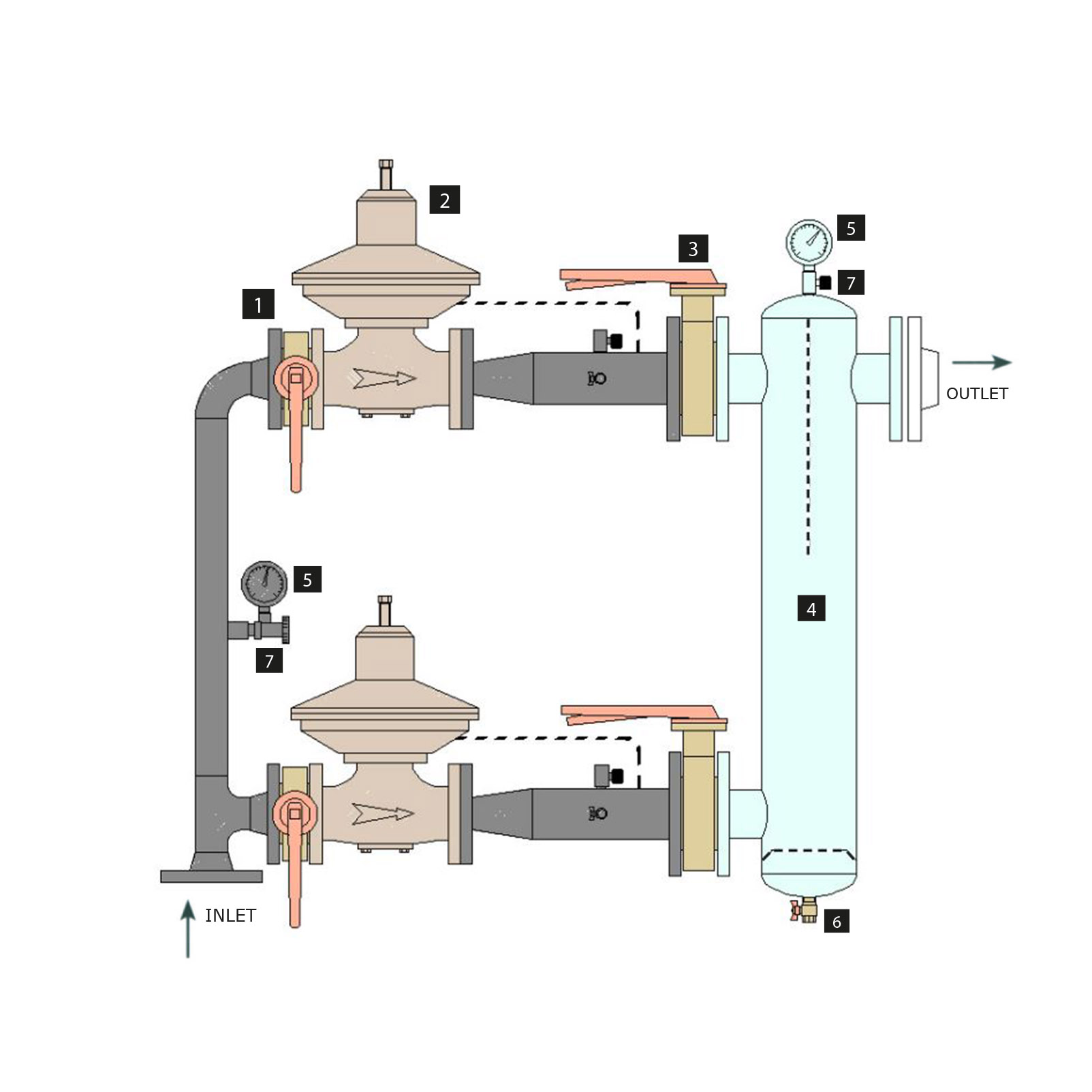

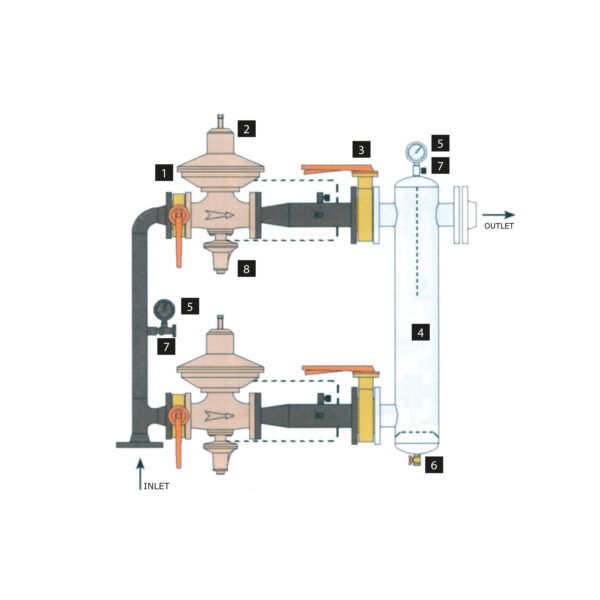

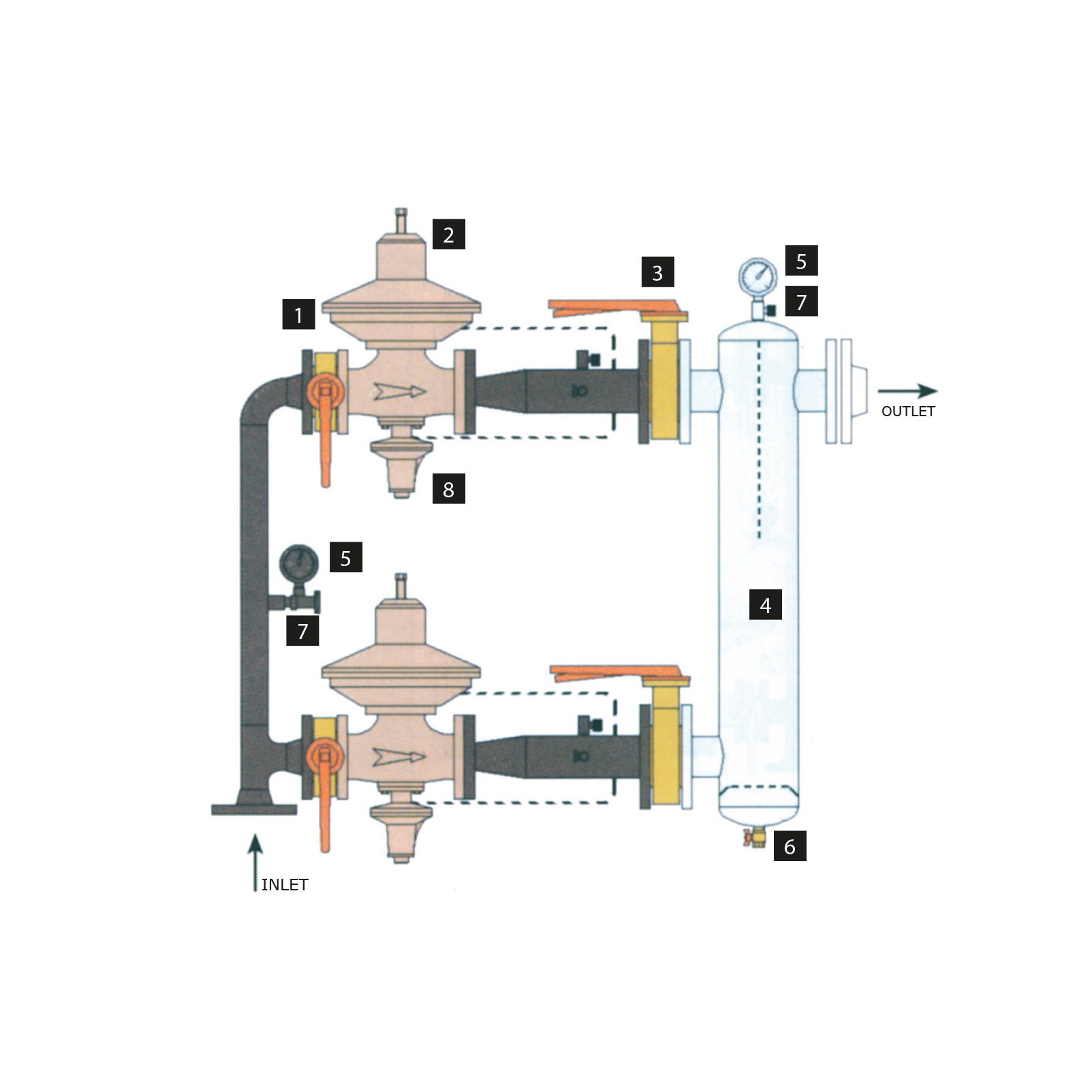

| STRUCTURE OF THE REDUCTION GROUP | ||||
|---|---|---|---|---|
| 1 | butterfly valve | |||
| 2 | regulator | |||
| 3 | butterfly valve | |||
| 4 | condensate tank | |||
| 5 | pressure gauge | |||
| 6 | discharge ball valve | |||
| 7 | needle tap | |||
| 8 | max pressure shut-off valve - present only in sku 13051 | |||
Technical Features
| FLOW RATE | 500 kg/h |
|---|---|
| INLET CONNECTION | DN 50 |
| OUTLET CONNECTION | DN 80 |
| INLET PRESSURE | 0.5 ÷ 5 bar |
| OUTPUT PRESSURE | 35 mbar |
| TYPE OF REGULATOR | ALFA 50 BP model |
| TYPE OF PRESSURE GAUGE | Ø 60 - 1/4" radial connection |
| BUTTERFLY VALVE | DN 50 - PN 16 |
| DISCHARGE BALL VALVE | 1/4" connection - PN 16 |
| CONDENSATE TANK DIAMETER | Ø 6" |
| MAX PRESSURE SHUT-OFF VALVE | OPSO - present only in sku 13050 |
| NEEDLE TAP | 1/4"- PN 40 |
