LPG Reduction Group
1ST and 2ND Stage version – P2 35 mbar
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000013032 |
LPG REDUCTION GROUP 1ST AND 2ND STAGE - flow rate 100 kg/h |
€2.280,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000013033 |
LPG REDUCTION GROUP 1ST AND 2ND STAGE - flow rate 200 kg/h |
€2.508,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000013034 |
LPG REDUCTION GROUP 1ST AND 2ND STAGE - flow rate 500 kg/h |
€5.543,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

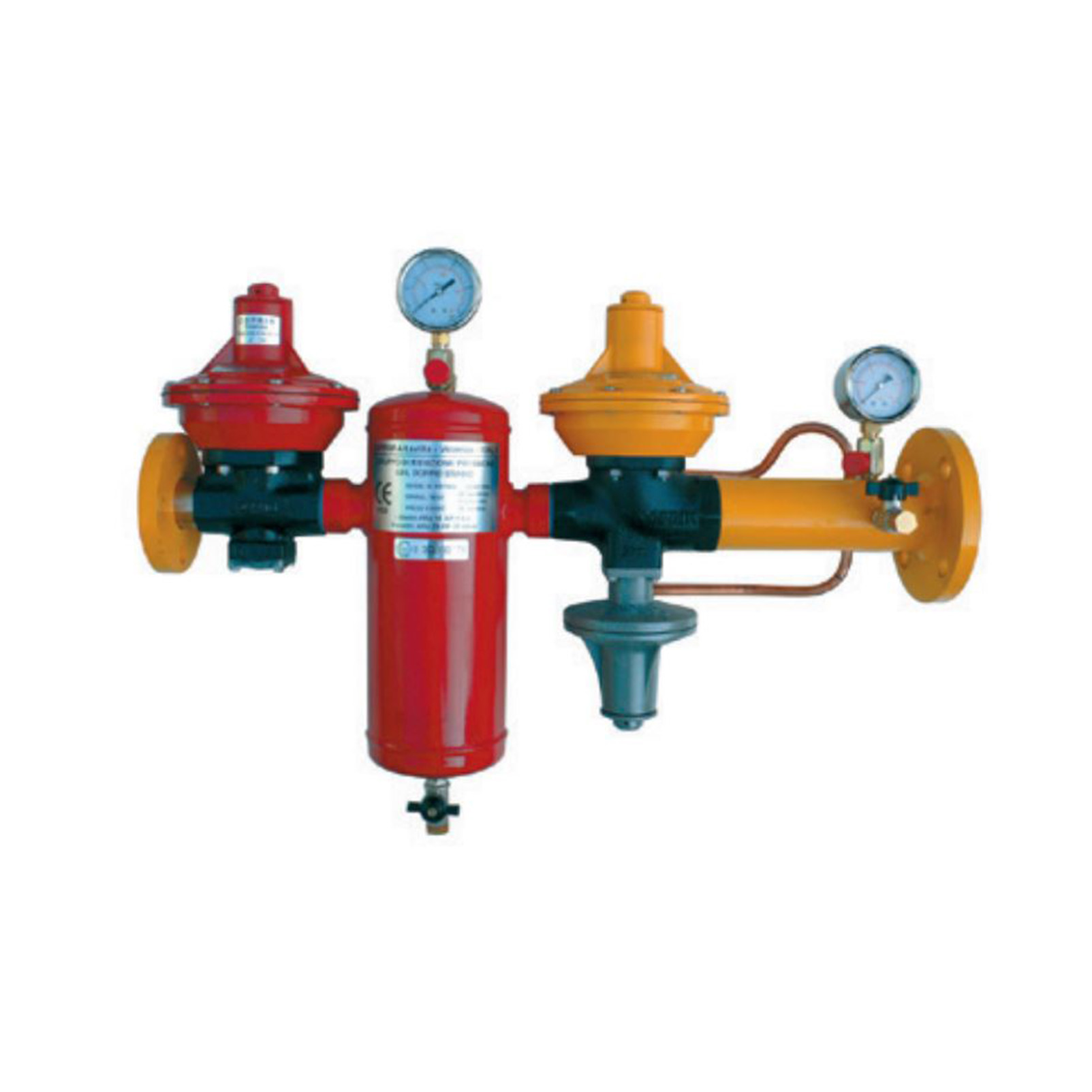

LPG reduction group, version 1ST and 2ND Stage, consisting of a complete line composed by high pressure regulator, condensate tank, needle tap, pressure gauges, safety valve,ball valve, low pressure regulator and max. block valve.

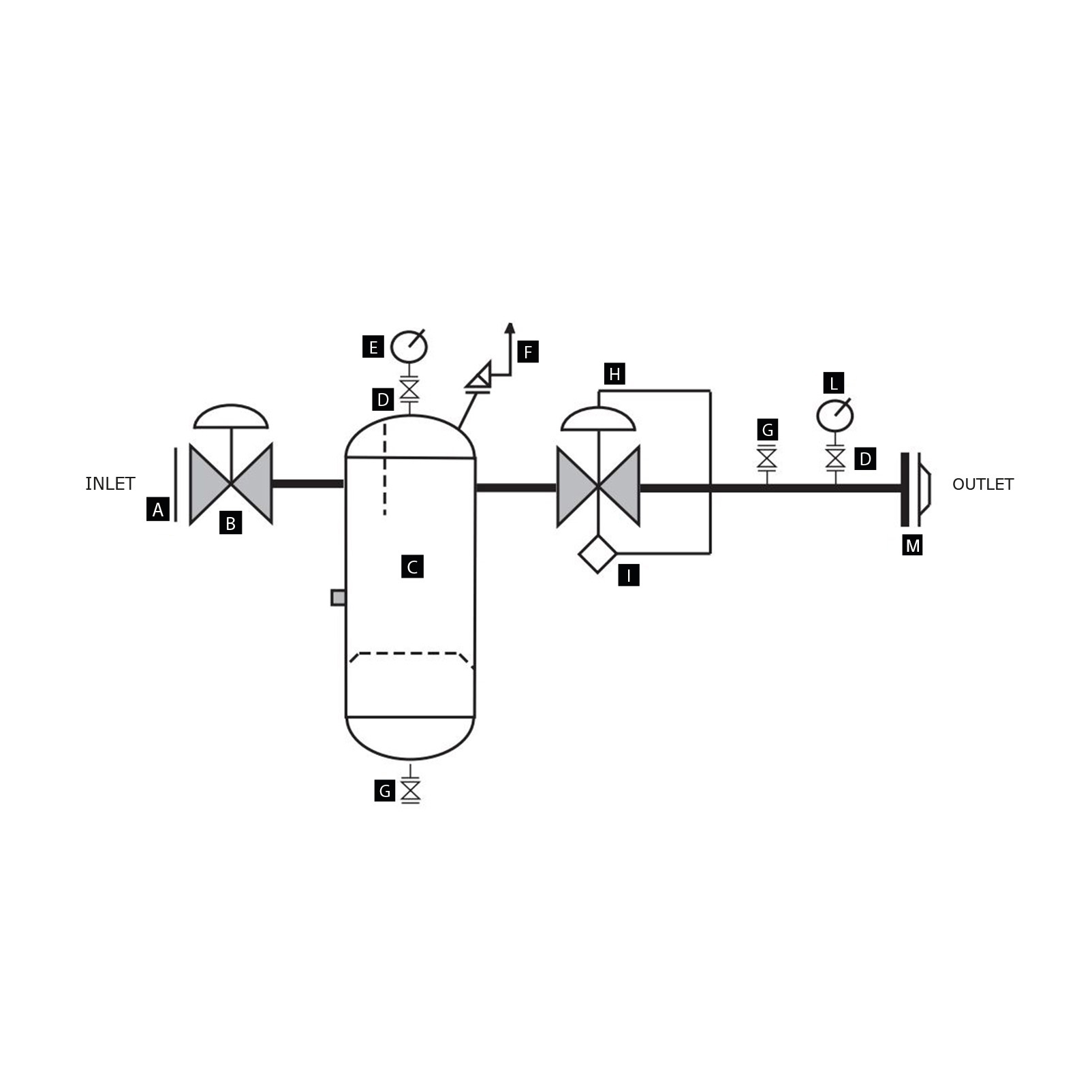

| STRUCTURE OF THE REDUCTION GROUP | ||||
|---|---|---|---|---|
| A | DN inlet | |||
| B | high pressure regulator | |||
| C | condensate tank | |||
| D | needle tap | |||
| E | pressure gauge | |||
| F | safety valve | |||
| G | ball valve | |||
| H | low pressure regulator | |||
| I | max block valve | |||
| L | pressure gauge | |||
| M | DN outlet | |||
Technical Features
| SKU | FLOW RATE | INLET CONNECTION | OUTLET CONNECTION | INPUT REGULATOR TYPE | OUTLET REGULATOR TYPE | CONDENSATE TANK DIAMETER | TYPE OF PRESSURE GAUGE | SAFETY VALVE | BALL VALVE | INLET PRESSURE | OUTLET PRESSURE | MAX BLOCK VALVE | NEEDLE TAP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13032 | 100 kg/h | DN 25 | DN 40 | ALFA 10 AP model | ALFA 20 BP model | Ø 4" |
|
1/4" - setting 3 bar | M/F 1/4" | 2 ÷ 18 bar | 35 mbar | 90 mbar | steel, 1/4" |
| 13033 | 200 kg/h | DN 25 | DN 50 | ALFA 20 AP model | ALFA 20 BP model | Ø 4" | |||||||
| 13034 | 500 kg/h | DN 40 | DN 80 | ALFA 40 AP model | ALFA 40 BP model | Ø 5" |
