Float Switch
For black waters
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070176 |
FLOAT SWITCH - CABLE 5 m |
€115,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070177 |
FLOAT SWITCH - CABLE 10 m |
€140,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

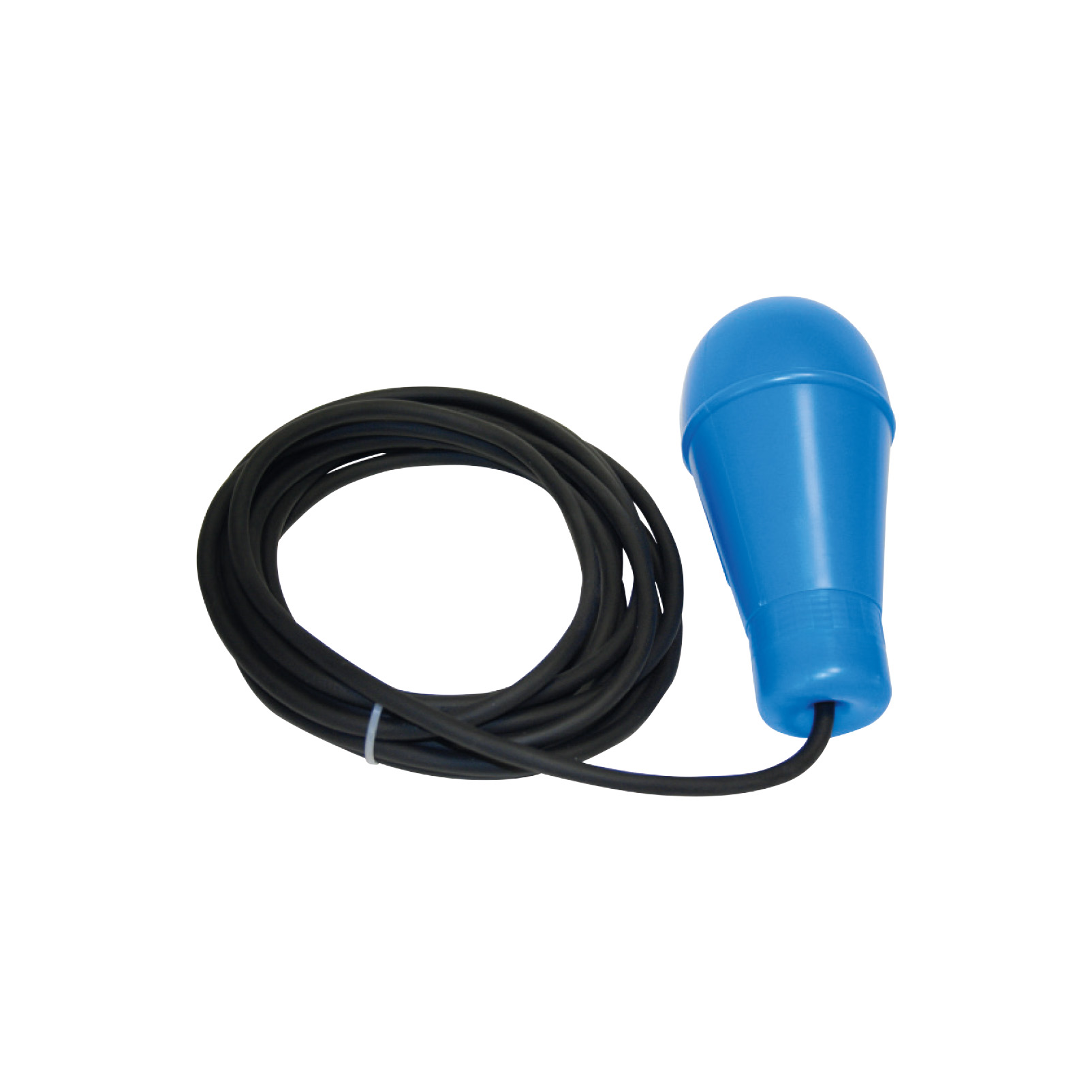

Float level regulator insensitive to humidity and condensation, designed for the regulation of particularly turbulent industrial waters with suspended agglomerate residues, or sewage-laden waters.
Product features
- watertight up to 100 m depth with electric contacts and microswitch / commutator
- electric control switch, with self-cleaning contacts with high opening distance
- equipped with internal weight for moving the center of gravity towards the cable entry and for determining the pivot point
- an injection of closed-cell and non-hygroscopic polyurethane is carried out inside the regulator, this injection eliminates all air particles and seals everything
- mercury free
Technical Features
| OPERATING VOLTAGE | 230 Vac 50 Hz |
|---|---|
| MAX RESISTIVE LOAD | 10 A 250V a.c. |
| MAX PRESSURE | 10 bar |
| ELECTRIC CONTACT | SPDT com + N.C. + N.0 |
| WORK CORNER | 15° |
| DEGREE OF PROTECTION | IP68 (protected against prolonged immersion in water and completely hermetic against dust and fumes) |
| WATER TEMPERATURE | 45°C |
| MATERIALS |
|
| DIMENSIONS | 195 x 81 x 81 mm (HxWxD) |
