Digital Differential Pressure Gauge
Model SI-PM3
FOR FURTHER SPECIFIC INFORMATION DEDICATED TO THE ITEM, CONTACT OUR TECHNICAL DEPARTMENT
COMPLIANCE WITH DIRECTIVES 2011/65/EU RoHS (EU) 2015/863, 2012/19/EU WEEE AND 214/53/EU RED
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000R01610 |
DIGITAL PRESSURE GAUGE - Si-PM3 |
€391,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

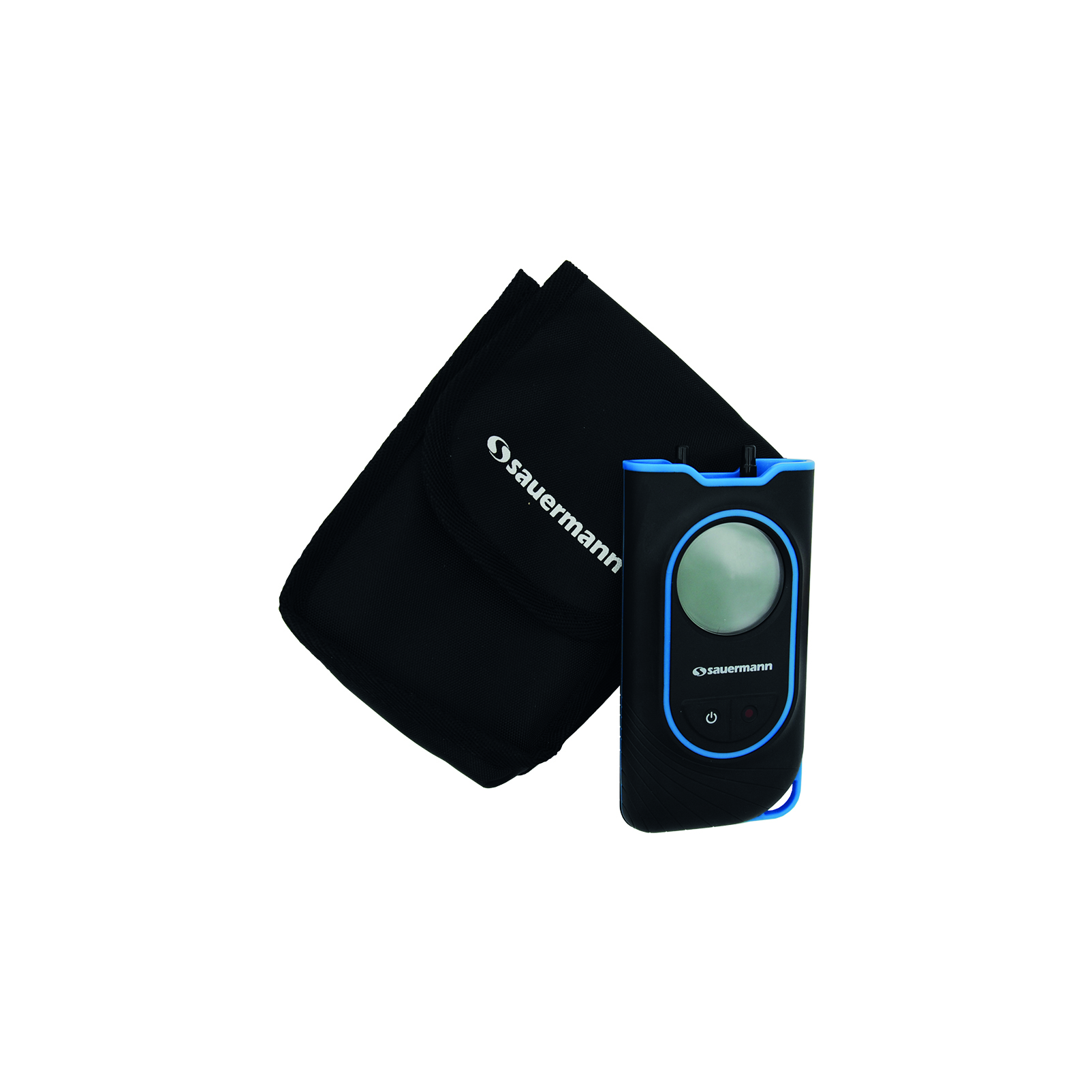

Digital differential pressure gauge for easy measurement of differential pressure, air velocity and air flow.
Product features
- backlit LCD screen
- magnetic backing for easy attachment
- speed and airflow with Pitot pipes (optional)
- supplied with carrying bag
- Si-HVACR measuring application: free Bluetooth® application for smartphones
Mobile application for Si-HVACR measurement
The Si-HVACR measurement mobile application allows you to view and log measurements in real time
- easily displays different parameters
- browse the history of saved measurements and data graphs (average, min and max values etc..)
- create reports (PDF, CVS or XML) and add up to 4 photos
Download here!
- https://play.google.com/store/apps/details?id=com.sauermann.SiHVACR
- https://apps.apple.com/fr/app/si-hvacr-measurement-mobileapp/id1475739979
The kit includes
- 2 transparent pipes Ø 4 x 6 mm, length 1 m
- certificate of conformity
- quick start guide
- 3 LR03 AAA 1.5V alkaline batteries
- carrying bag
Technical Features
| MEASUREMENT RANGE | - 150 ÷ + 150 hPa (- 60 ÷ + 60 in H2O) |
|---|---|
| MEASURING ELEMENT | piezoresistive sensor |
| ALLOWABLE OVERPRESSURE | 750 mbar (301 in H2o) |
| CONNECTION | graduated connectors from Ø 5.1 to 6.2 mm |
| DISPLAY | Integrated 7 section 2 line backlit monochrome LCD display |
| KEYBOARD | 1 ON/OFF button - backlight |
| POWER SUPPLY | 3 alkaline batteries LR03 AAA 1.5 V |
| POWER SOURCE | 4.5 V |
| BATTERY LIFE | 170 hours (without backlight and wireless communication) |
| PROTECTION | IP40 (not protected against the ingress of liquids, protected against the ingress of solid objects larger than 1 mm) |
| WIRELESS COMMUNICATION |
|
| ENVIRONMENTAL CONDITIONS | air and neutral gases |
| OPERATING CONDITIONS | from 0°C to 50°C (under non-condensing conditions) |
| STORAGE TEMPERATURE | - 20°C ÷ + 70°C |
| AUTO SHUT-OFF | 10 minutes (can be deactivated) |
| WEIGHT | 200 g (batteries included) |
| DIMENSIONS | 70 x 141 x 33 mm (WxHxD) |
Download
