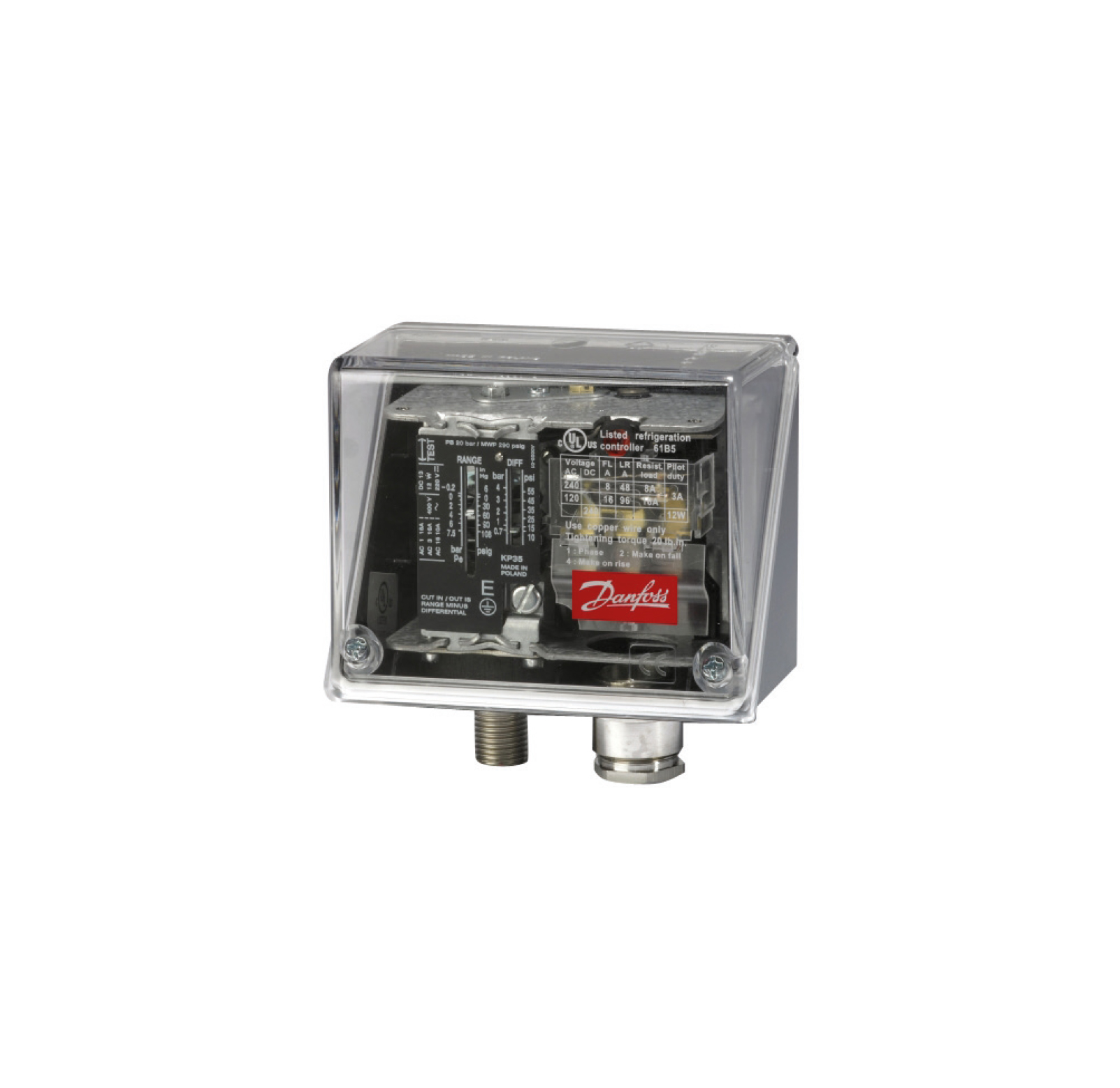

Danfoss Gas, Air and Liquid Pressure Switch

For industrial applications

	sku	model	price	info	add to cart
	00000R02530	PRESSURE SWITCH KP35 - 0,2 ÷ 7,5 bar	€267,96 Excl. Taxes	Physical data UM Base: NR Dimension: 12 × 13 × 7 cm Volume: 0.0012 m³ Weight: 0,50 kg Minimum Order Quantity: 1 Customs data Customs Code 90322000	Danfoss Gas, Air and Liquid Pressure Switch quantity Buy Info Request
	00000R02531	PRESSURE SWITCH KP36 - 2,0 ÷ 14,0 bar	€267,96 Excl. Taxes	Physical data UM Base: NR Dimension: 13 × 7 × 12 cm Volume: 0.0011 m³ Weight: 0,50 kg Minimum Order Quantity: 1 Customs data Customs Code 90322000	Danfoss Gas, Air and Liquid Pressure Switch quantity Buy Info Request

Pressure switch used for control, monitoring and alarm systems in a wide range of industrial applications.

Product features

wide range of settings
shock and shock resistant
the electrical contacts minimize vibrations, oscillations and wear and ensure long-term electrical and mechanical reliability
small size, compact size and easy panel installation
the electrical connection on the front of the unit facilitates rack mounting and saves space
suitable for alternating and direct current
equipped with a double position unipolar contact system
thanks to the manual trip function, electrical connections can be tested without tools or pressure changes in the application
mainly used for gaseous fluids

SKU	*R02528*	*R02529*
*ROOM TEMPERATURE*	- 40°C ÷ 65°C
*COMPATIBLE FLUIDS*	gaseous fluids
*MATERIALS*	bellows: phosphor bronze or stainless steel pressure connector: automatic steel (nickel plated) or stainless steel electrical contact: silver
*CONTACT SYSTEM*	unipolar double position
*DEGREE OF PROTECTION*	IP30 (not protected against the ingress of liquids, protected against the ingress of solid objects larger than 2,5 mm)
*CONNECTION*	1/4" M ISO 228-1
*PRESSURE RANGE*	- 0,2 ÷ 7,5 bar	2,0 ÷ 14,0 bar
*MANUFACTURE CALIBRATION*	0,7 ÷ 4,0 bar	0,7 ÷ 4,0 bar
*MAX WORKING PRESSURE*	17 bar
