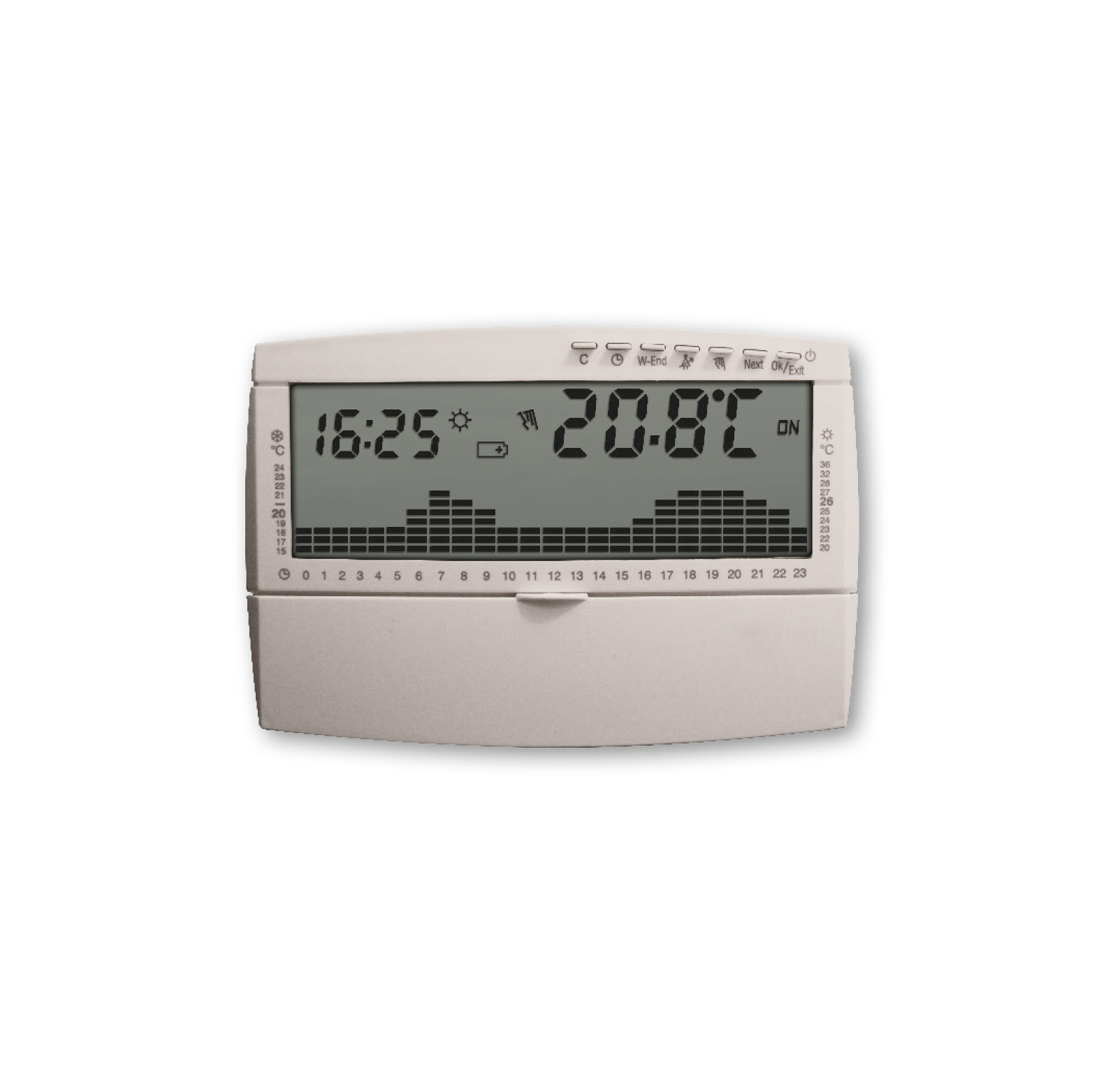

Daily and/or Weekly Digital Chronothermostat
Model UP&DOWN COMPACT
REFERENCE RULE FOR CE MARKING: LVD/EMC, EN60730-2-7 AND EN60730-2-9
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000080540 |
DAILY CHRONOTHERMOSTAT - Mod. UP%DOWN COMPACT |
€169,55 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000080542 |
WEEKLY CHRONOTHERMOSTAT - Mod. UP%DOWN COMPACT |
€175,65 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
The first chronothermostat is already programmed in the factory, for the time and standard time profile that can be modified later by the user.
Product features
- consumption counter
- display Lcd 4" 1/2
- 10 temperature levels + anti-freeze
- minimum programming 60 minutes
- temperature correction according adjustable according to product
positioning (winter / summer) - automatic daylight saving time change
- differential or modulating ON/OFF operation with control period of 7/10/15/20 minutes
- intelligent / eco / optimized operation
- permanent / temporary manual operation programmed in the factory
- autonomy 12 months
- equipped with suspension button for cleaning
- holiday program and pump activation program
- temperature setting lock
- keyboard lock
- password to protect access to the menu
- heating setting range: 15°C - 17°C - 18°C - 19°C - 20°C - 20,5°C - 21°C - 22°C - 23°C - 24°C
- cooling setting range: 20°C - 22°C - 23°C - 24°C - 25°C - 26°C - 27°C - 28°C - 32°C - 36°C

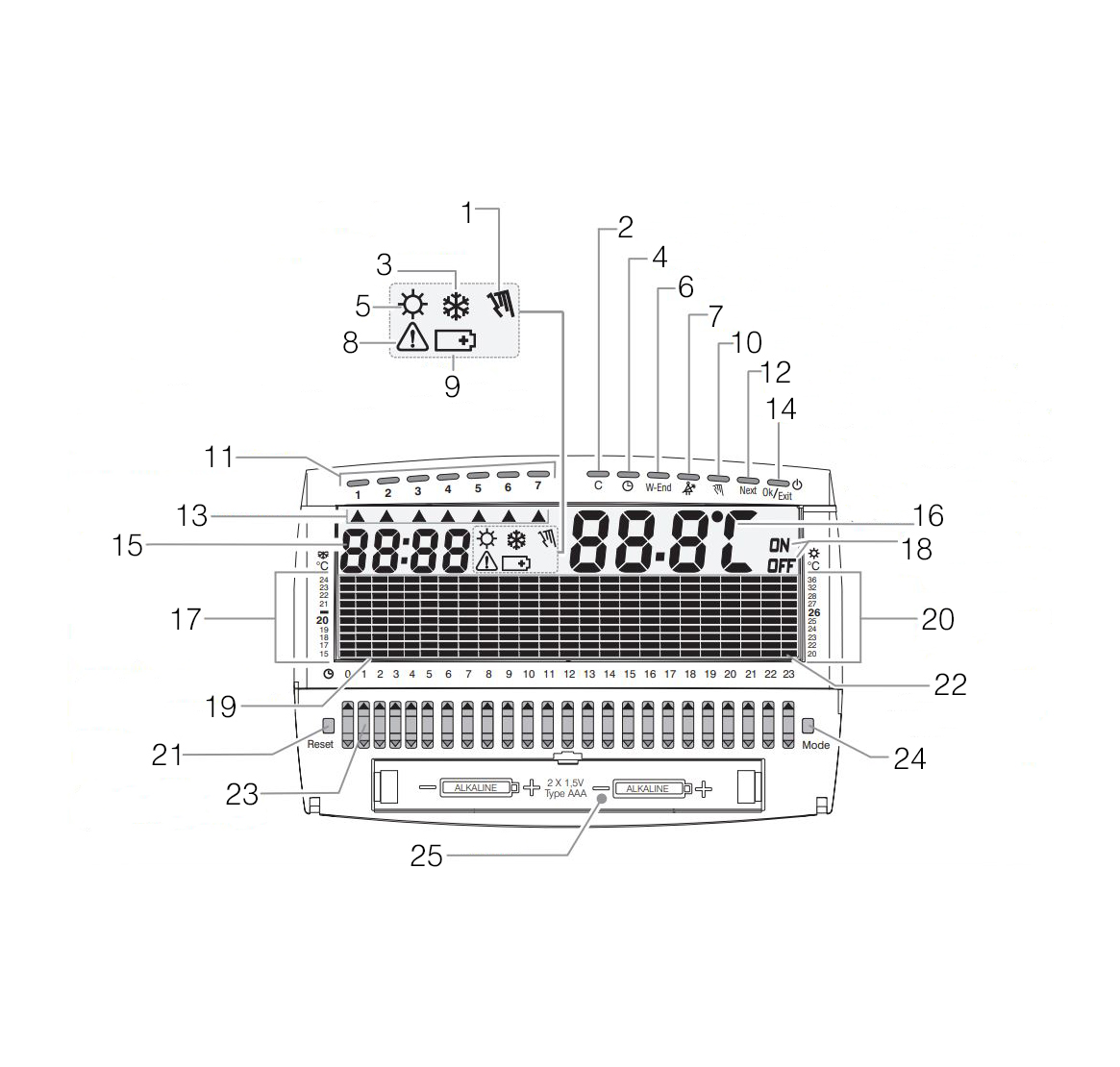

| FUNCTIONS OF BUTTONS AND SYMBOLS | |
|---|---|
| 1 |
manual override indicator - flashing = temporary manual - steadily lit = permanent manual |
| 2 | copy button / display number of operating hours |
| 3 | HEATING mode indicator ON |
| 4 | date and clock setting button / W-END setting |
| 5 | COOLING mode indicator active |
| 6 | W-END mode entry / exit button (count-down) |
| 7 | house cleaning suspension button (3 hours) |
| 8 |
"Auto" intelligent mode indicator - steadily lit = function activated - flashing = function active |
| 9 | low battery indicator (to be replaced within 30 days of notification) |
| 10 | manual override button |
| 11 | days of the week setting keys (only for weekly model SKU 80542) |
| 12 | button for passing to the next setting within the menu |
| 13 | weekday indicators (only for weekly model SKU 80542) |
| 14 |
button: - confirms some user settings - exit the mode menu - chronothermostat switch-off |
| 15 | clock |
| 16 | ambient temperature display |
| 17 | temperature scale for the heating program |
| 18 | connected utility status indicator (boiler) |
| 19 | 24h area with set temperature indications (thermal profile) |
| 20 | temperature scale for the cooling program |
| 21 | "RESET" button |
| 22 | "digit" (if flashing it indicates the current time) |
| 23 | UP-DOWN button, for temperature setting |
| 24 | "MODE" button, access to the programmable functions menu for adaptation to the type of system |
| 25 | battery compartment |
| Note: every time any button is pressed (with acoustic signal active), the chronothermostat emits an acoustic signal "beep" if the operation is correct, "boop" if an incorrect operation is being performed. | |
Technical Features
| POWER SUPPLY | 2 AAA 1,5 V mini stylus alkaline batteries |
|---|---|
| AUTONOMY | 1 year minimum |
| TYPE OF DISCONNECTION AND DEVICE | 1/B/U electronic |
| TYPE OF OUTPUT | relay with changeover contact NO / COM / NC, potential free - max 5(2)A / 250 Vac |
| SOFTWARE | class A |
| RATED IMPULSE VOLTAGE | 4 kV |
| REGULATION RANGE | 0°C ÷ + 50°C |
| THERMAL GRADIENT | 1°K / 15 min |
| TYPE OF INSULATION | class II |
| CLOCK ACCURACY | ± 1 sec / day |
| TEMPERATURE READING ACCURACY | ± 0,5°C |
| DEGREE OF PROTECTION | IP30 (not protected against the ingress of liquids, but protected against the ingress of solid objects larger than 2,5 mm) |

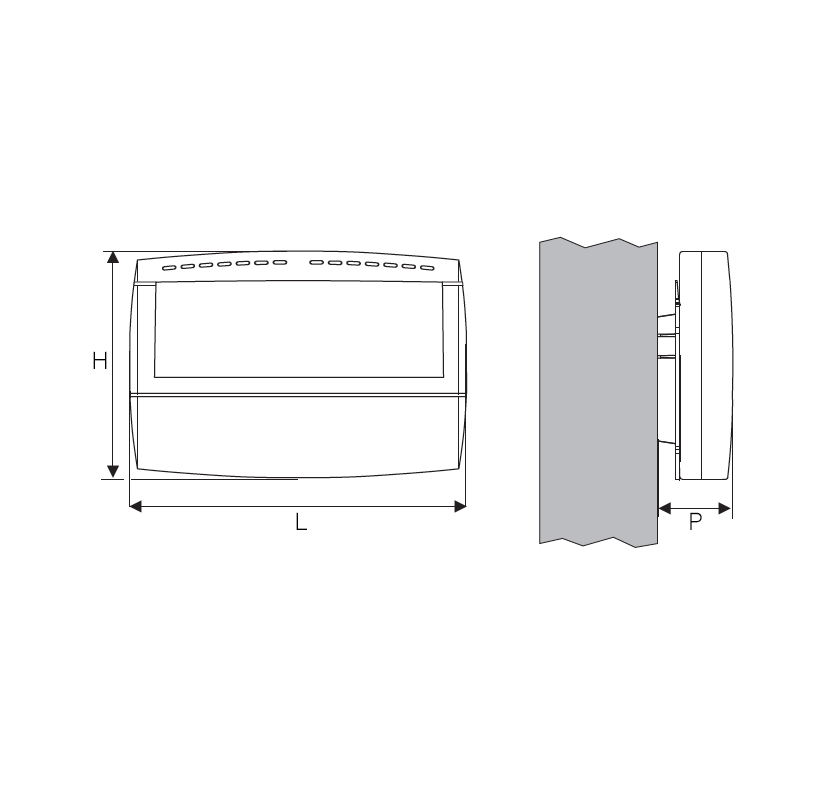

| DIMENSIONS | 133 x 26 x 90 mm (WxDxH) |
| COLOR | white |
