Cube vibration dampers
Model KUBLOCK
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000017420 |
 KUBLOCK VIBRATION DAMPERS - payload 100 kg - 4 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000017421 |
 KUBLOCK VIBRATION DAMPERS - payload 200 kg - 4 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

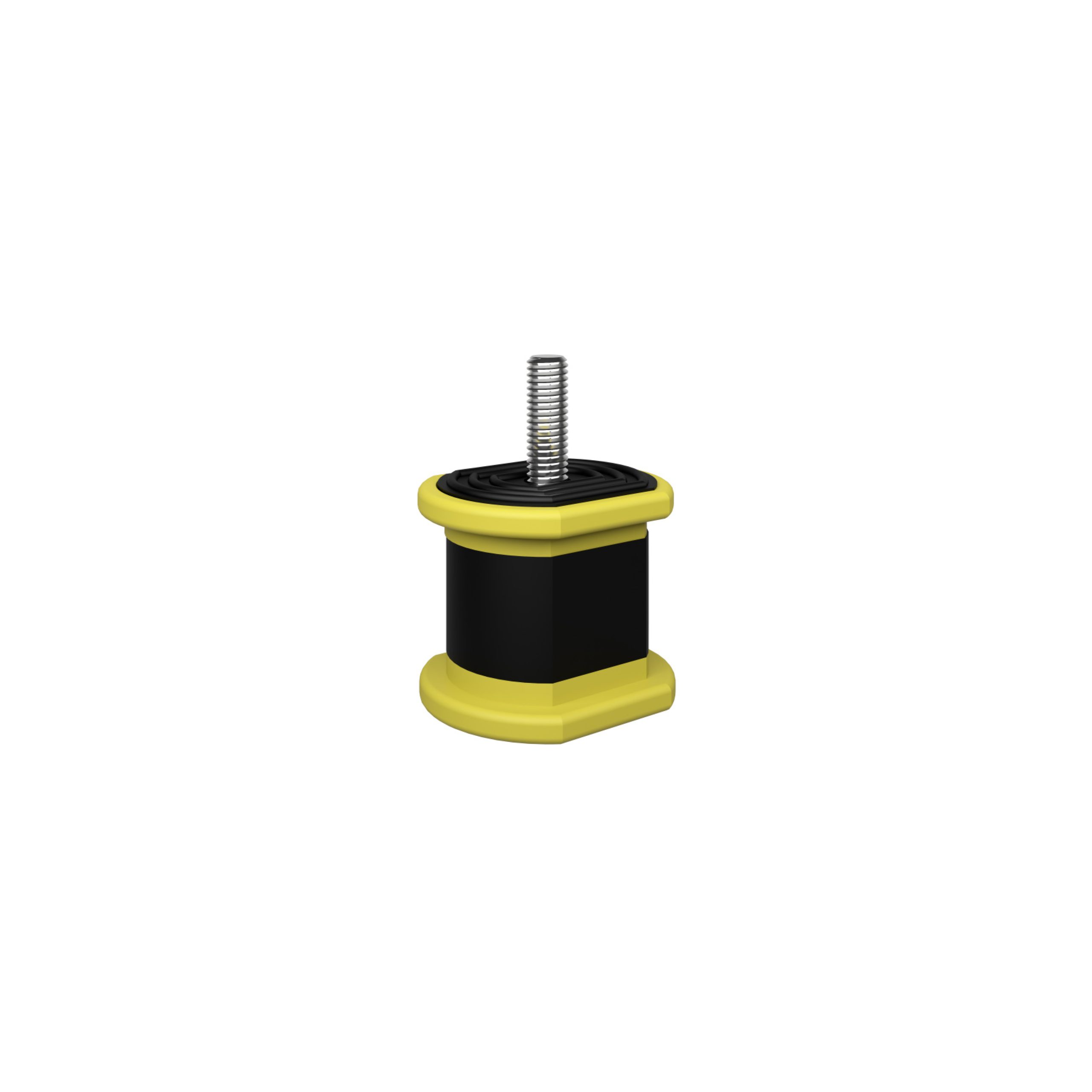

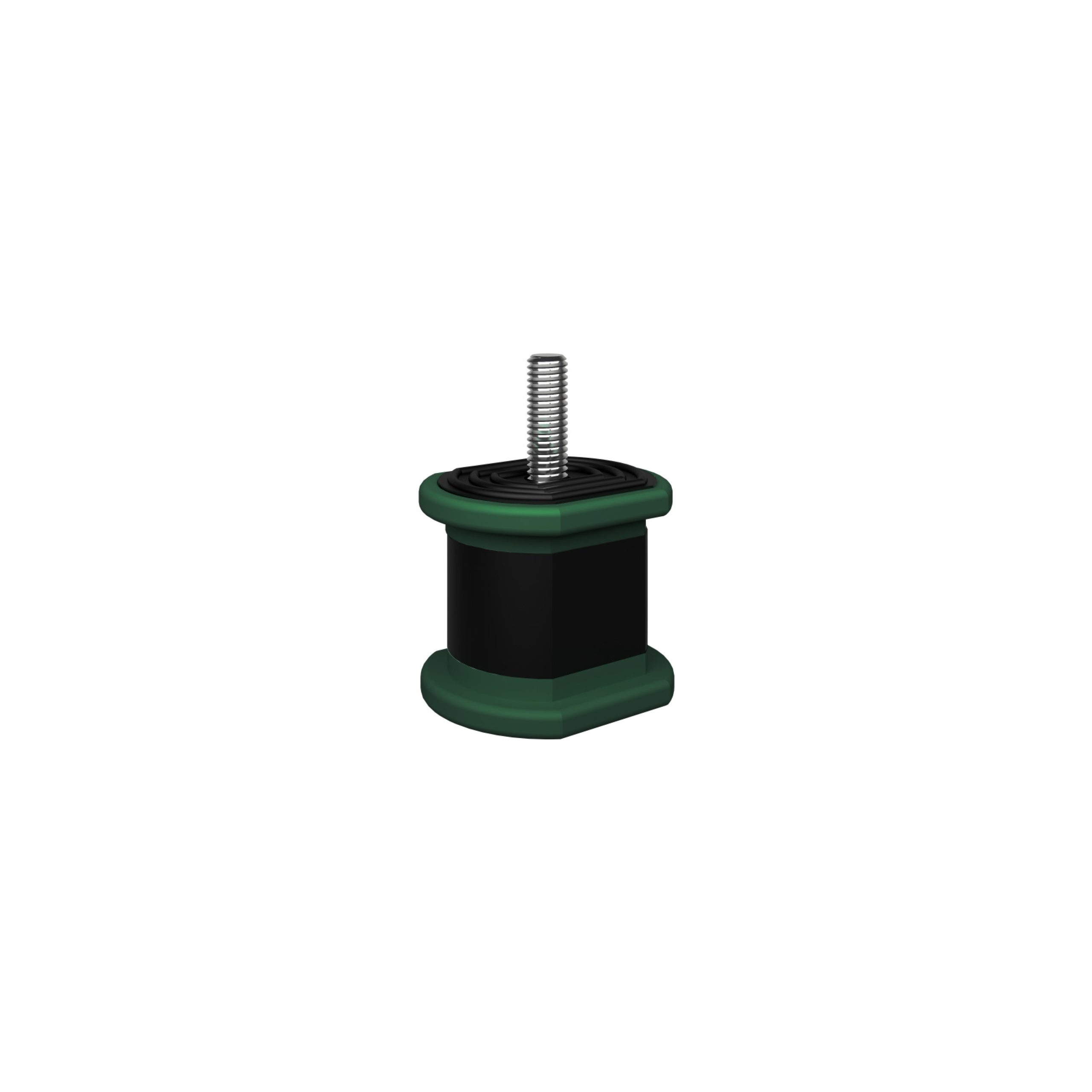

KUBLOCK, cube vibration dampers with reinforced thermoplastic lower and upper support.
Product features
- equipped with deformable relief surfaces for correct positioning and vibration-damping central body made of volume-elastomer that totally reduces vibrations
- made with different spring sections, corresponding to different hardnesses (identifiable by colour) in order to cover the widest range of applications
- resistant to atmospheric ageing and UV rays

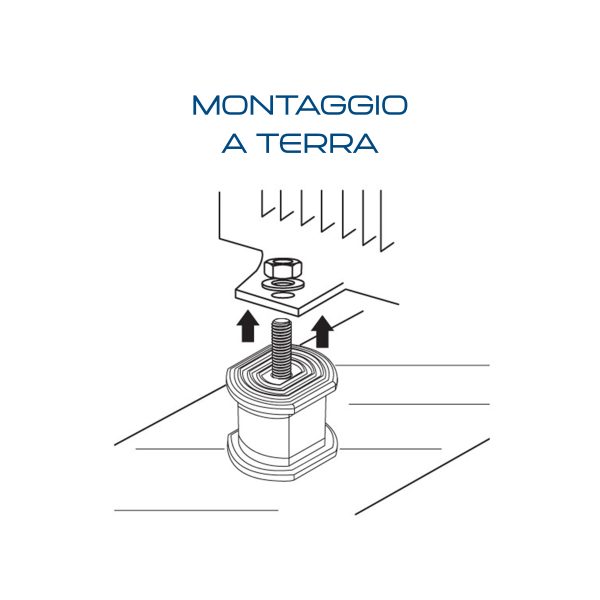

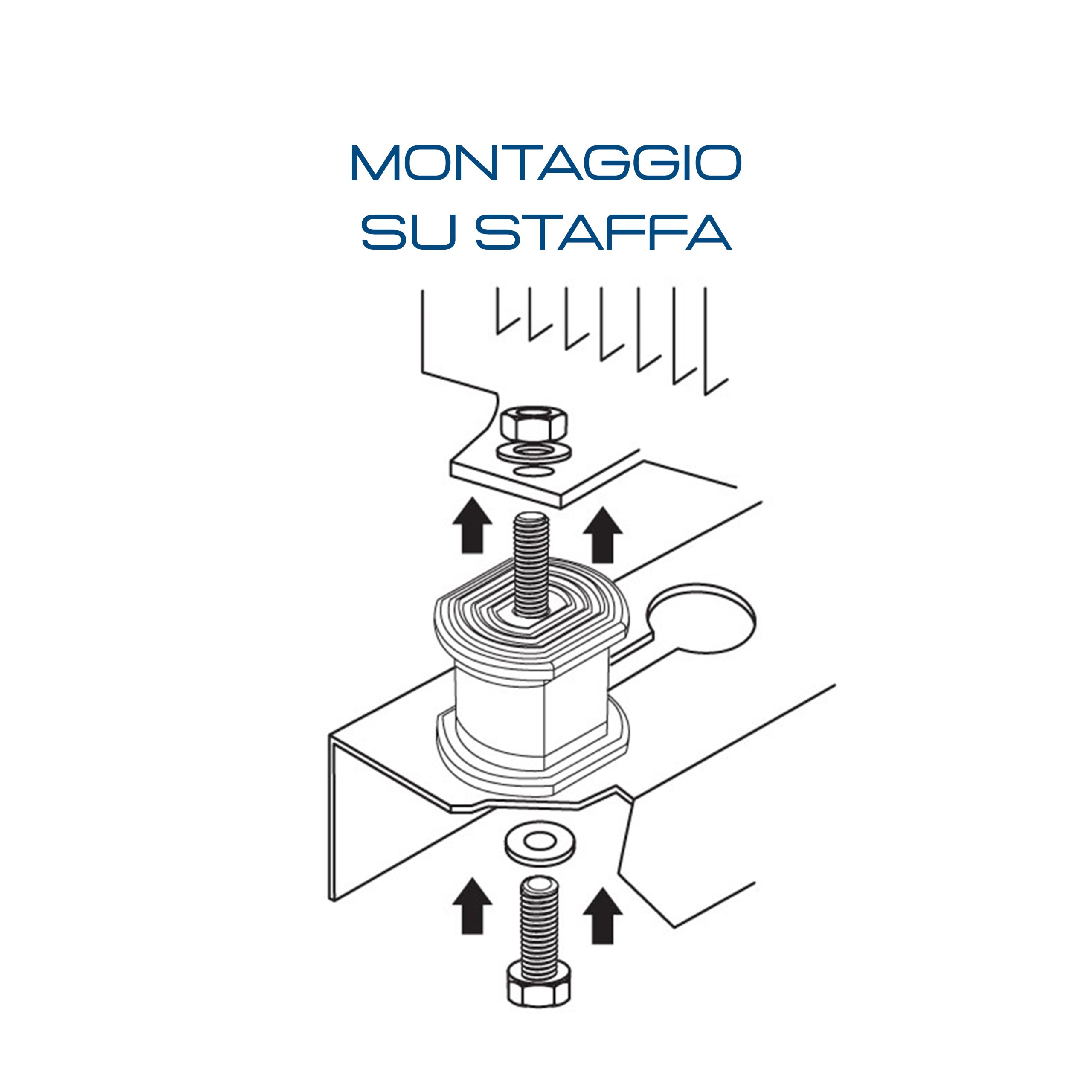

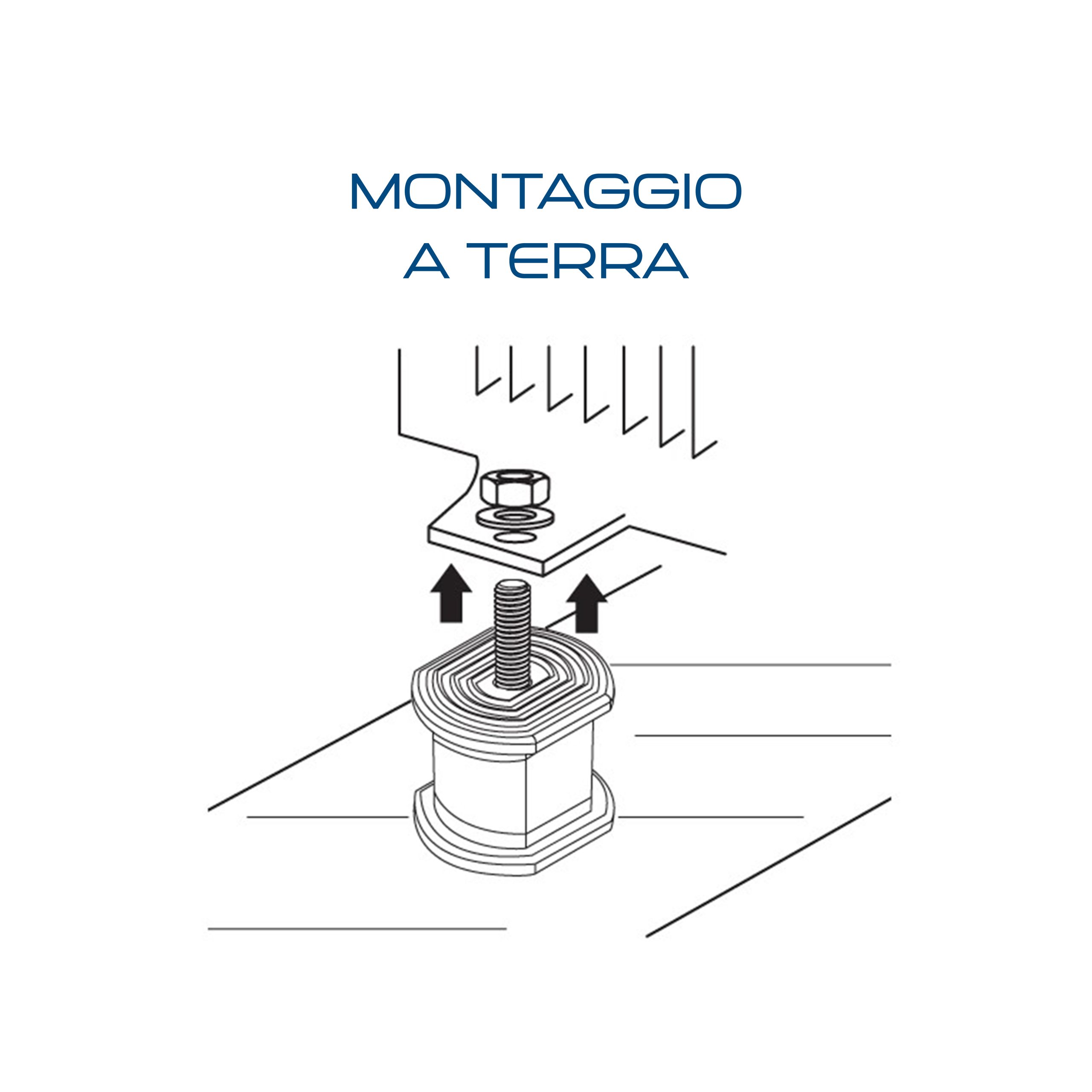

- supplied in sets of 4, complete with hardware for bracket or floor mounting
Technical Features
| SKU | PAYLOAD | DIMENSIONS | THREAD | TEMPERATURE RANGE |
|---|---|---|---|---|
| 17420 | for air conditioning units up to 100 kg | 62x40 mm (HxW) | M8 | - 5°C ÷ + 120°C |
| 17421 | for air conditioning units up to 200 kg |
