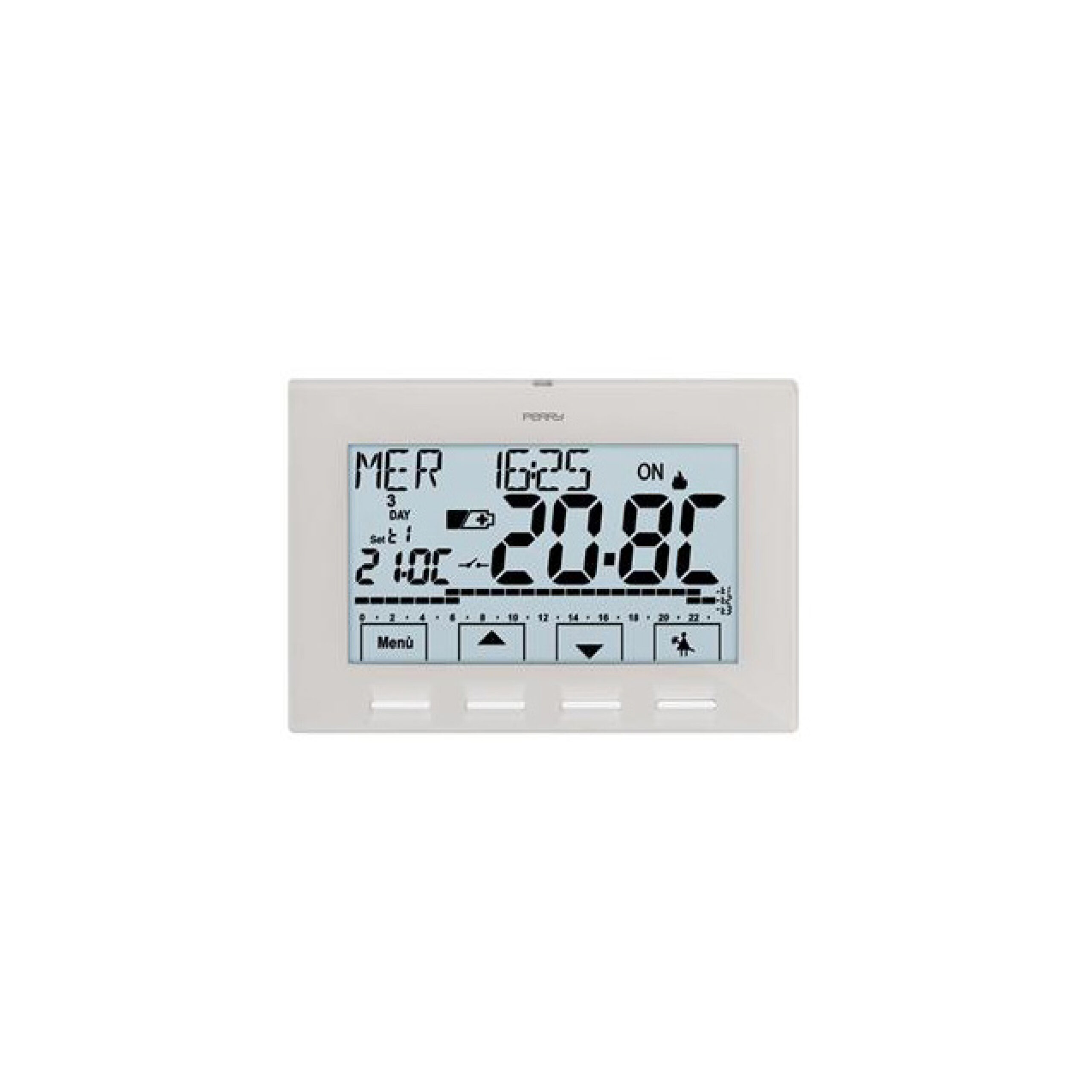

Weekly Digital Chronothermostat
CR028/B model
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000080534 |
WEEKLY DIGITAL CHRONOTHERMOSTAT - CR028/B MODEL |
€183,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
The weekly chronothermostat suitable for all heating and/or cooling systems, equipped with a backlit display to monitor all its functions in real time.
Product features
- pre-programmed at the factory for operation defined as standard
- easy to use thanks to menu navigation
- 2 winter and 2 summer programmes with 3 temperature levels + antifreeze are already set in its permanent memory
- the temperature scale is set in Centigrade (Celsius) with the possibility of calibrating the room temperature measurement by setting a correction value (- 3°C to + 3°C); by switching to Fahrenheit degrees, all temperature displays are updated according to the new scale
- offers the possibility to connect a separate removable temperature sensor (optional) and then set it according to your system requirements: remote, floor and external
- avoids energy waste thanks to its temporary or permanent manual override with autonomous temperature SET of the current weekly programme
- equipped with a 4.3" backlit touchscreen LCD display
- automatic summer time changeover
- suspension key for cleaning
- user and installer passwords
- timed backlighting
- relay status indication
- correction t detection depending on product wall mounting and/or semi-recessed
| DISPLAY LEGEND | |
|---|---|
| 1 | chronothermostat activation by remote control |
| 2 | set temperature display |
| 3 | temporary and permanent manual override |
| 4 |
currently active set temperature depending on the current programme:
|
| 5 | days of the week (visible in the PROGRAM menu) |
| 6 | current day, hour and minute |
| 7 | low battery warning |
| 8 | cooling mode (summer) active |
| 9 |
|
| 10 | heating mode (🔥 winter) active |
| 11 | detected room temperature |
| 12 | 24 hour time and temperature scale |
| KEY LEGEND | |
|---|---|
| A |
multifunctional key:
|
| B | key▲ menu navigation: allows you to increase the value of a setting |
| C | key▼ menu navigation: allows you to decrease the value of a setting |
| D |
multifunctional key:
|
Technical Features
| POWER SUPPLY | 2 x 1.5 V type AA alkaline batteries (LR6) |
|---|---|
| AUTONOMY | approximately 2 years |
| AUTONOMY WHEN THE FLASHING 'LOW BATTERY' SYMBOL LIGHTS UP ON THE DISPLAY | approximately 15 days |
| WHITE BACKLIGHTING OF THE DISPLAY | timed 6 sec. (default) / always off |
| TYPE OF ACTION, DISCONNECTION AND DEVICE | 1 / B / U / Electronic |
| OUTPUT TYPE | voltage free relay with COM/NO/NC, changeover contact - max. 5(3)A/250V |
| SOFTWARE | class A |
| NOMINAL IMPULSE VOLTAGE | 4 kV |
| CONTACT INPUT FOR REMOTE ON/OFF | for NO or NC contact free from potential |
| INPUT FOR REMOTE PROBE | probe may be set depending on use: remote, floor, external |
| TYPE OF INSULATION | class II |
| DEGREE OF PROTECTION | IP30 (not protected against the ingress of liquids, but protected against the ingress of solid objects larger than 2.5 mm) |
| NUMBER OF TEMPERATURE LEVELS |
|
| ROOM TEMPERATURE DISPLAY SCALE | - 5°C ÷ + 37,7°C (+ 23°F ÷ + 99,9°F) |
| FLOOR PROBE DISPLAY RANGE | - 0.0°C ÷ + 60.0°C (+ 32°F ÷ + 140°F) |
| EXTERNAL PROBE DISPLAY RANGE | - 9.9°C ÷ + 60.0°C (+ 14.2°F ÷ + 140°F) |
| RELAY SIGNALLING ON |
|
|
TEMPERATURE CONTROL MODES:
|
|
| OPERATING TEMPERATURE LIMITS |
|
| STORAGE TEMPERATURE LIMITS | 0°C ÷ + 45°C |
| DIMENSIONS | - 10°C ÷ + 60°C |
