Counterframes
for Delivery grill or Return air grill
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000066201 |
COUNTERFRAMES - 200 x 100 mm |
€11,85 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066202 |
COUNTERFRAMES - 200 x 150 mm |
€11,85 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066203 |
COUNTERFRAMES - 300 x 100 mm |
€11,85 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066204 |
COUNTERFRAMES - 300 x 150 mm |
€13,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066205 |
COUNTERFRAMES -300 x 200 mm |
€14,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066206 |
COUNTERFRAMES - 400 x 100 mm |
€13,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066207 |
COUNTERFRAMES - 400 x 150 mm |
€14,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066208 |
COUNTERFRAMES - 400 x 200 mm |
€16,70 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066209 |
COUNTERFRAMES - 400 x 300 mm |
€20,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066210 |
COUNTERFRAMES - 500 x 100 mm |
€14,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066211 |
COUNTERFRAMES - 500 x 150 mm |
€17,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066212 |
COUNTERFRAMES - 500 x 200 mm |
€19,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066213 |
COUNTERFRAMES - 500 x 300 mm |
€23,10 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066214 |
COUNTERFRAMES - 500 x 400 mm |
€25,80 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066215 |
COUNTERFRAMES - 600 x 150 mm |
€19,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066216 |
COUNTERFRAMES - 600 x 200 mm |
€20,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000066217 |
COUNTERFRAMES - 600 x 400 mm |
€28,95 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

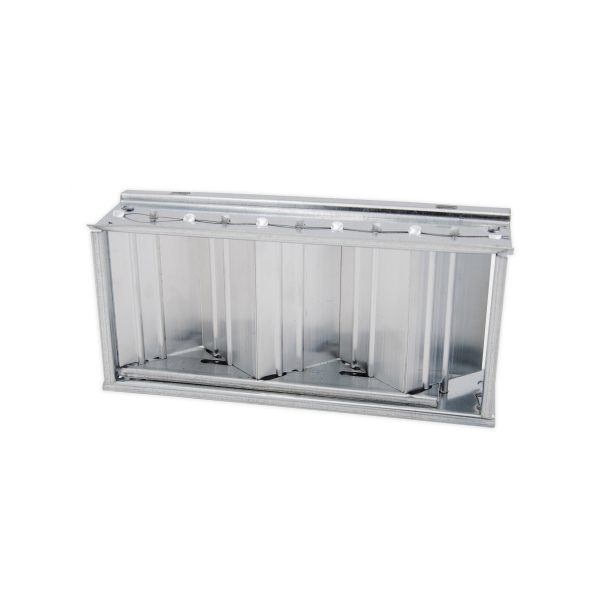

The counterframes is suitable for use with both supply and return air grilles and can be equipped with a balancing damper and an isolated plenum.
Technical Features
| GRID SKU | GRID DIMENSIONS | DAMPER SKU | COUNTERFRAME SKU | PLENUM SKU | Ø PLENUM CONNECTION |
|---|---|---|---|---|---|
| 66009 | 200 x 100 mm | 66039 | 66201 | 66050 | Ø 100 mm |
| 66010 | 200 x 150 mm | 66040 | 66202 | 66051 | Ø 150 mm |
| 66011 | 300 x 100 mm | 66041 | 66203 | 66052 | Ø 100 mm |
| 66012 | 300 x 150 mm | 66042 | 66204 | 66053 | Ø 150 mm |
| 66013 | 300 x 200 mm | 66043 | 66205 | 66054 | Ø 200 mm |
| 66014 | 400 x 100 mm | 66044 | 66206 | 66055 | Ø 100 mm |
| 66015 | 400 x 150 mm | 66045 | 66207 | 66056 | Ø 150 mm |
| 66016 | 400 x 200 mm | 66046 | 66208 | 66057 | Ø 200 mm |
| 66018 | 400 x 300 mm | 66048 | 66209 | 66059 | Ø 250 mm |
| 66019 | 500 x 100 mm | 66049 | 66210 | 66060 | Ø 100 mm |
| 66020 | 500 x 150 mm | 66100 | 66211 | 66061 | Ø 150 mm |
| 66017 | 500 x 200 mm | 66047 | 66212 | 66058 | Ø 200 mm |
| 66021 | 500 x 300 mm | 66101 | 66213 | 66111 | Ø 250 mm |
| 66022 | 500 x 400 mm | 66102 | 66214 | 66112 | Ø 300 mm |
| 66081 | 600 x 150 mm | 66103 | 66215 | 66113 | Ø 150 mm |
| 66082 | 600 x 200 mm | 66104 | 66216 | 66114 | Ø 200 mm |
| 66083 | 600 x 400 mm | 66105 | 66217 | 66115 | Ø 300 mm |
