Counter for Methane/GPL Meters

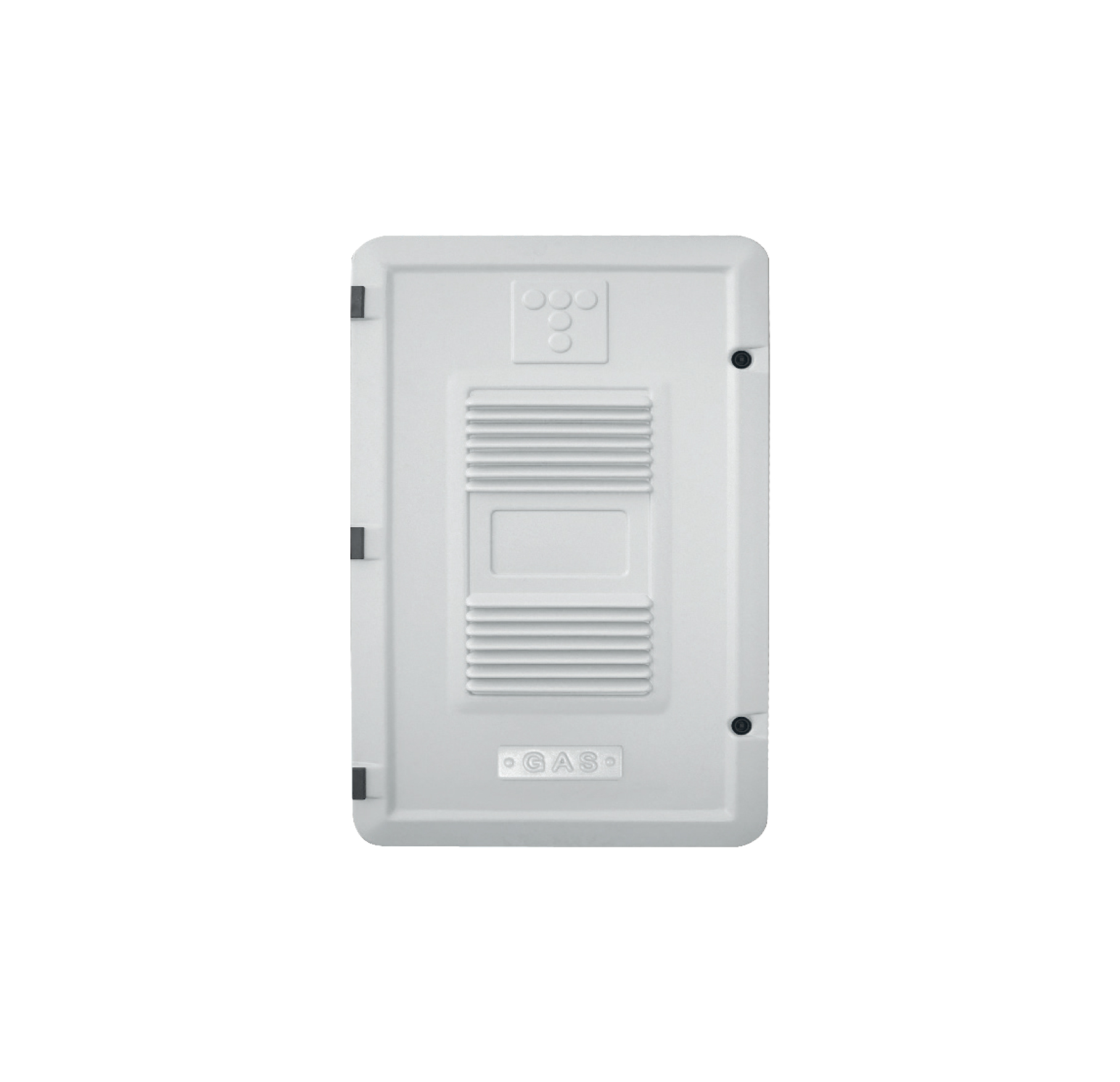

Door for methane/GPL meters in self-extinguishing ABS-PMMA, 3 users double closing

FOR MASONRY RECESS

COMPLIANT WITH UNI 9036:2015 RULE

sku model price info add to cart

00000020953

DOOR FOR METHANE/GPL METERS - 685 x 685 mm

265,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39259080

Buy
Info Request

Product informations

Door for methane/GPL meters in ABS-PMMA, G2.5 - G4 for 3 users double closing.



Product features

  • manufactured in self-extinguishing ABS-PMMA, in RAL 7038 gray colour
  • fixing to the concrete recess, using dowels (Fischer type) and polyurethane foam
  • hinge in PA reinforced with glass fiber in black color, rotation pin in stainless steel 303, in nickel-plated steel
  • stainless steel screws
  • nylon lock with zinc-plated steel lever, supplied with nylon opening key with metal insert with square seat
  • paintable externally with wall paints
  • equipped with door key, 7x7 square connection

Technical Features

EXTERNAL DIMENSIONS INTERNAL DIMENSIONS DOOR DIMENSIONS RECESS DIMENSIONS
685 x 685 mm 550 x 750 mm 595 x 785 mm 610 x 810 mm
