Condensation Discharge Pump NUVOLA 2.0
For nebulised condensate drain
REPLACE CONSUMABLES AT LEAST ONCE A YEAR
THE MAINTENANCE KIT IS ALSO COMPATIBLE WITH THE PREVIOUS "NUVOLA" VERSION
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011932 |
NUVOLA 2.0 CONDENSATING DISCHARGE PUMP |
€304,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011933 |
TRANSPARENT PIPE ROLL - 50 m - Ø 6x4 mm |
€147,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011934 |
TRANSPARENT PIPE ROLL - 10 m - Ø 6x4 mm |
€28,25 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000011935 |
MAINTENANCE KIT FOR NUVOLA PUMP |
€126,65 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

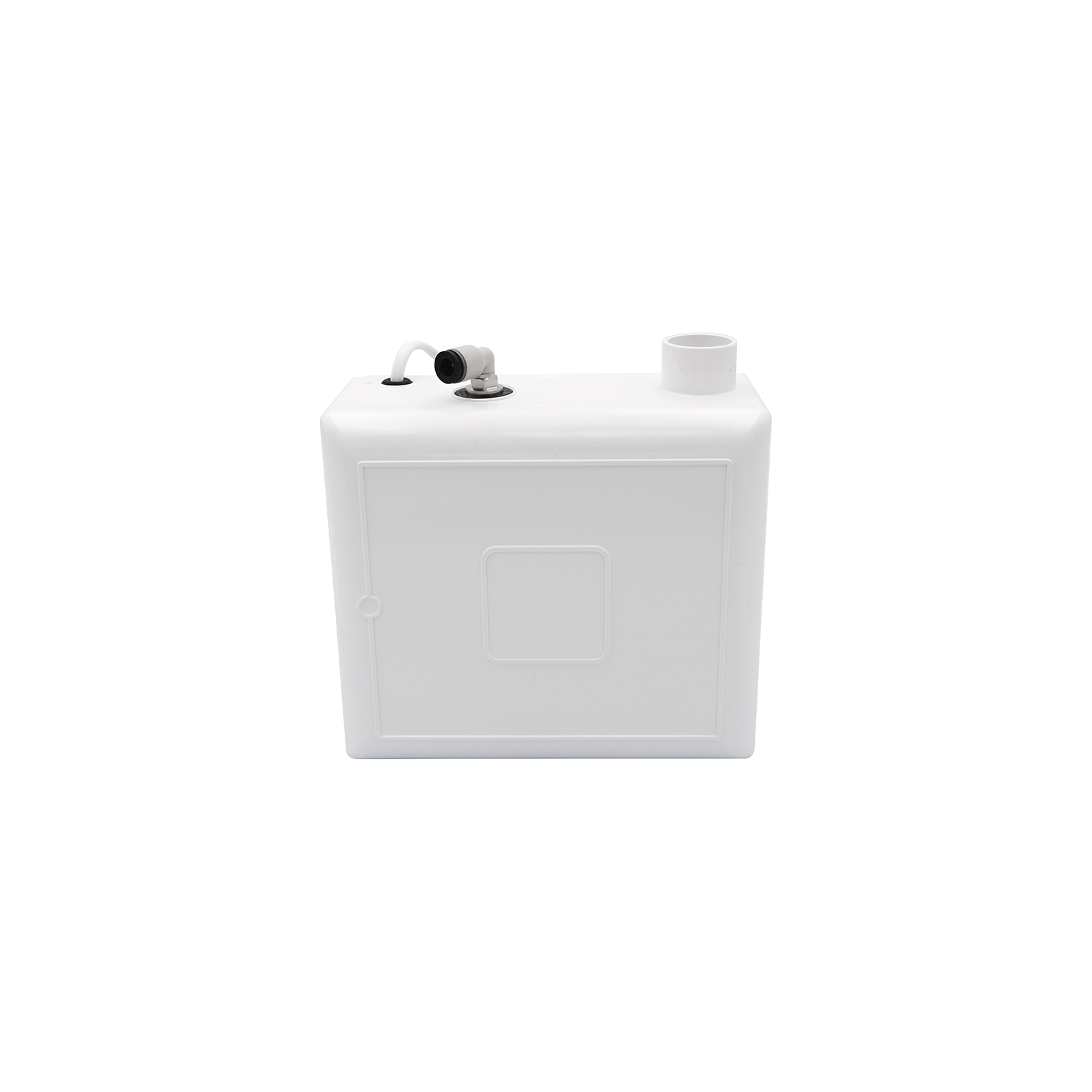

NUVOLA 2.0, the condensate drain pump that can be supplied with a nebulized drain that allows the condensation of the air conditioners to be disposed of towards the outside, by nebulizing the water into particles that dissolve in the air up to a distance of 50 m. Its operation does not require an exhaust system and is completely automatic, being equipped with a microprocessor it is able to adapt optimally to the operation of the air conditioner.
Product features
- easy installation
- permanently eliminates the problem of draining condensation generated by the air-conditioning system
- has a fully automatic operation, through the microprocessor it is able to optimally adapt to the operation of the air conditioner
- can be installed on the outdoor unit, as it is rainproof
- low consumption

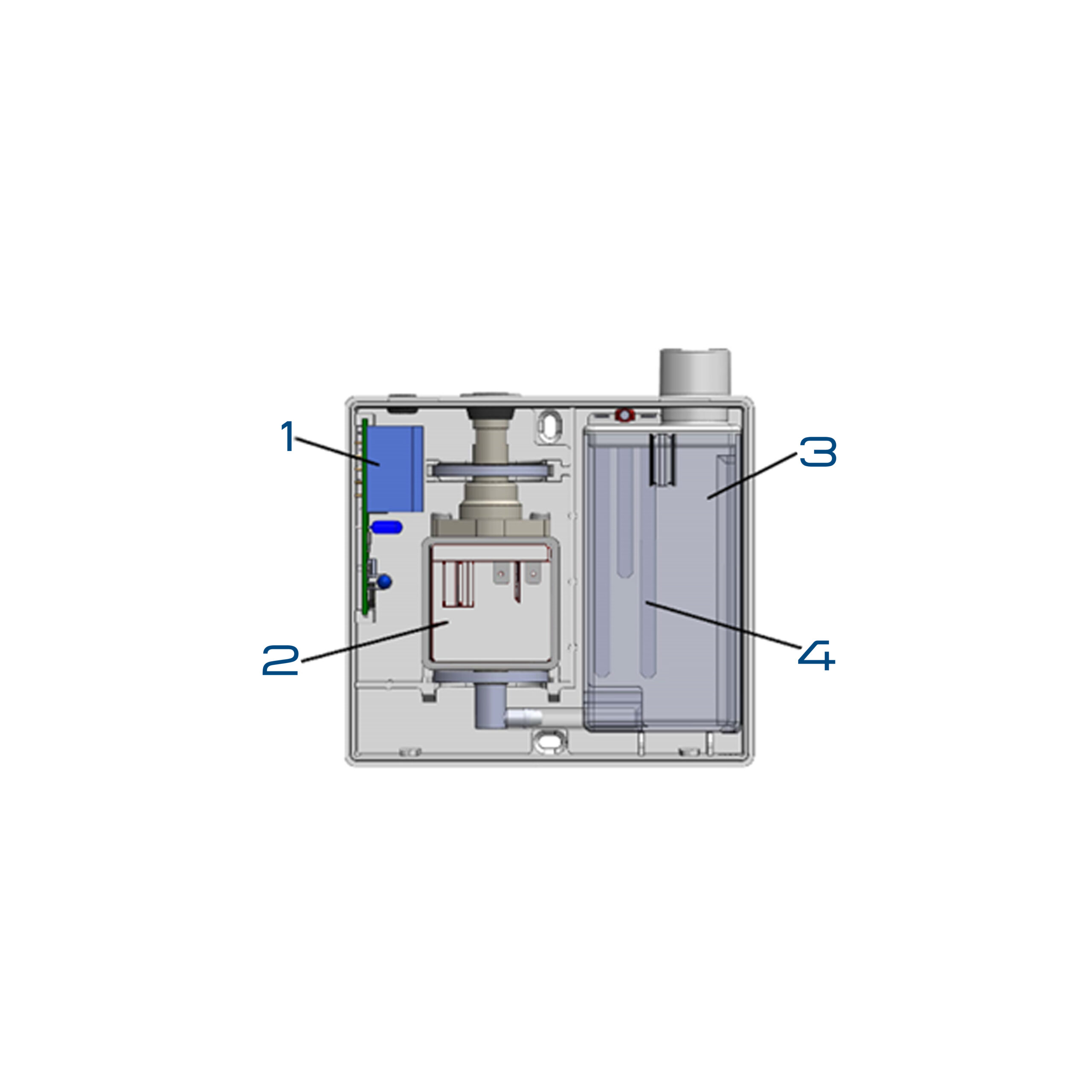

| PUMP STRUCTURE | |
|---|---|
| 1 | electronic control card |
| 2 | fireproof high pressure pump |
| 3 | storage tank |
| 4 | level sensor |

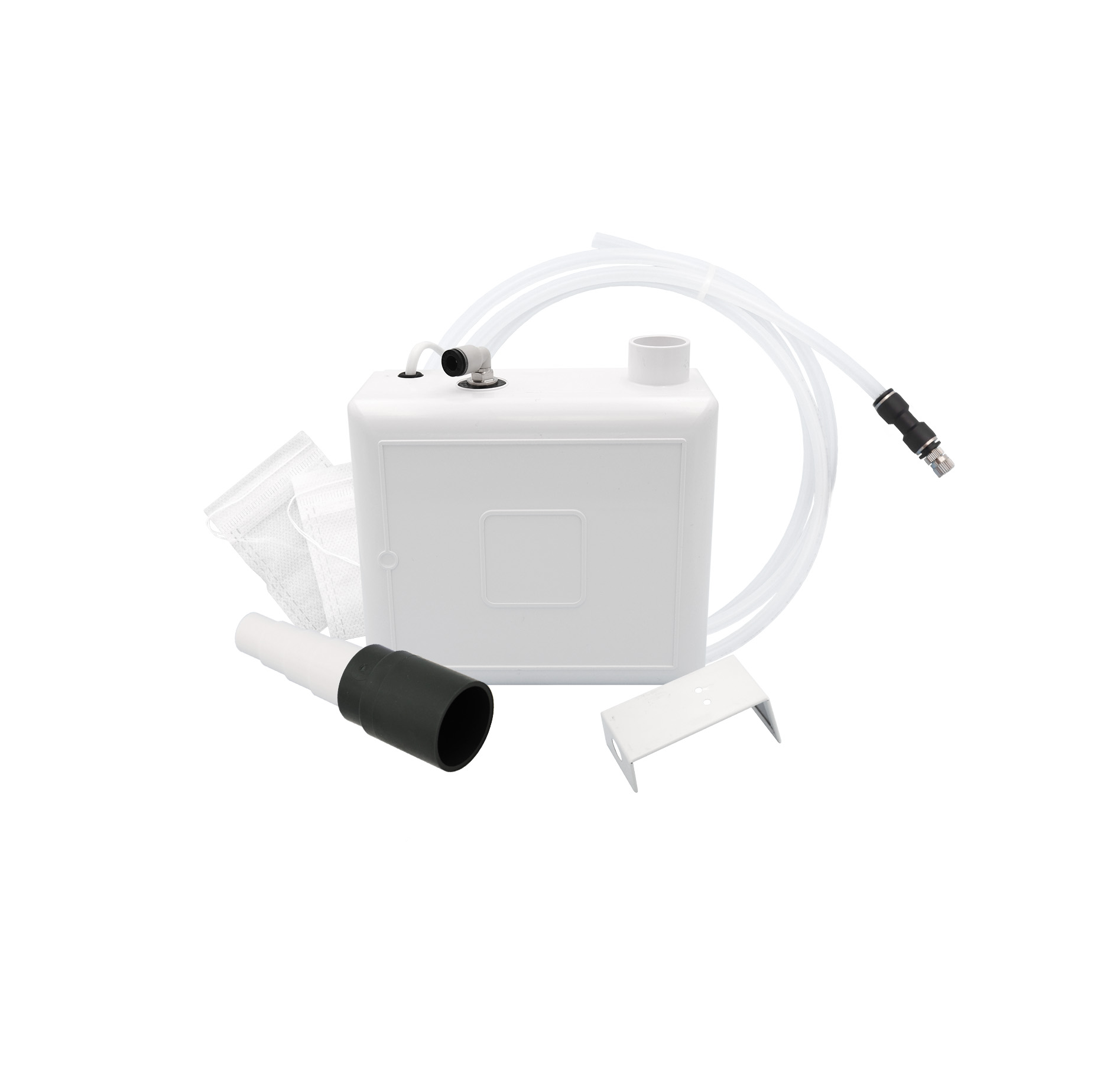

The kit includes
- NUVOLA 2.0 pump

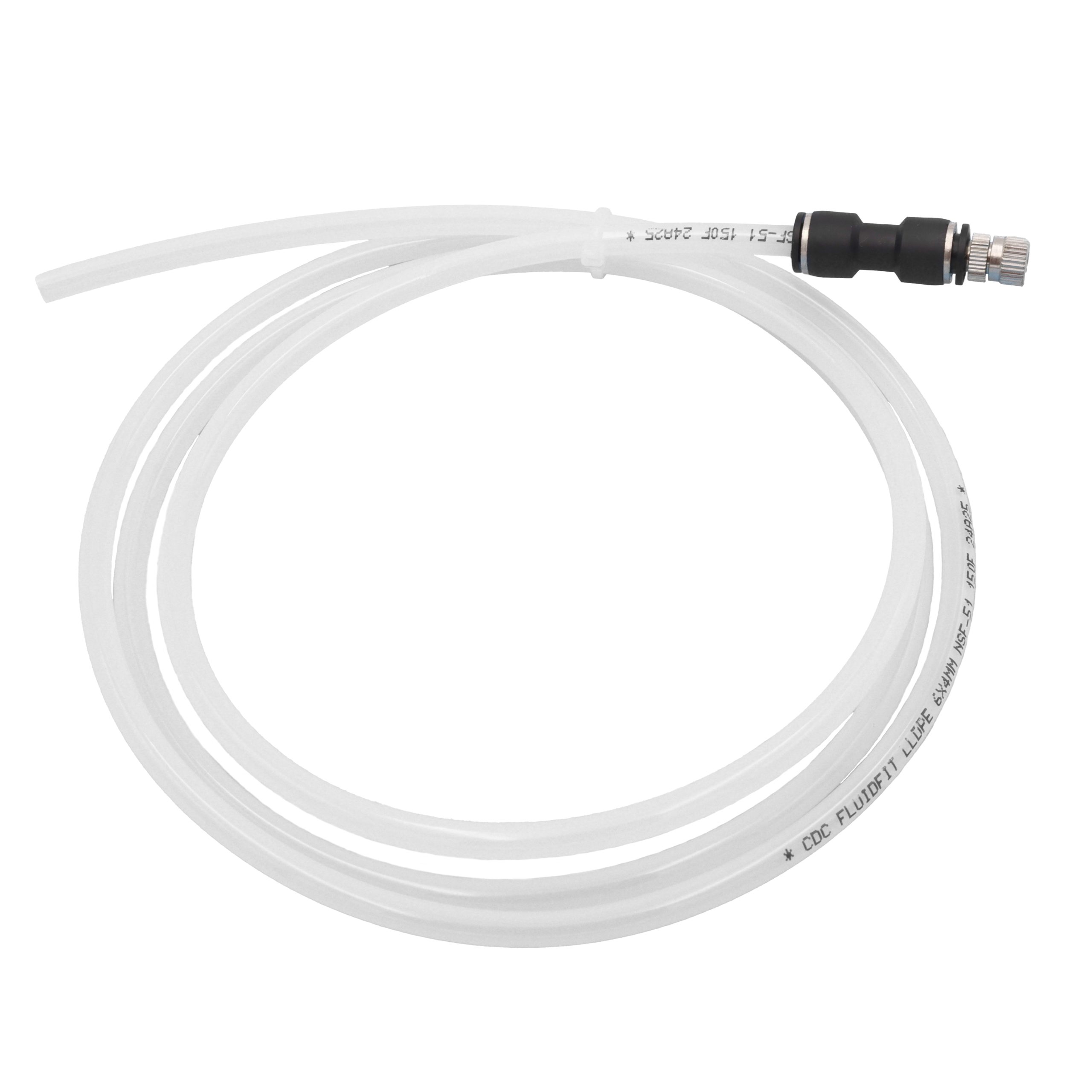

- inspectable nebulizer nozzle
- 1,5 m polyethylene pipe Ø 4,6 mm

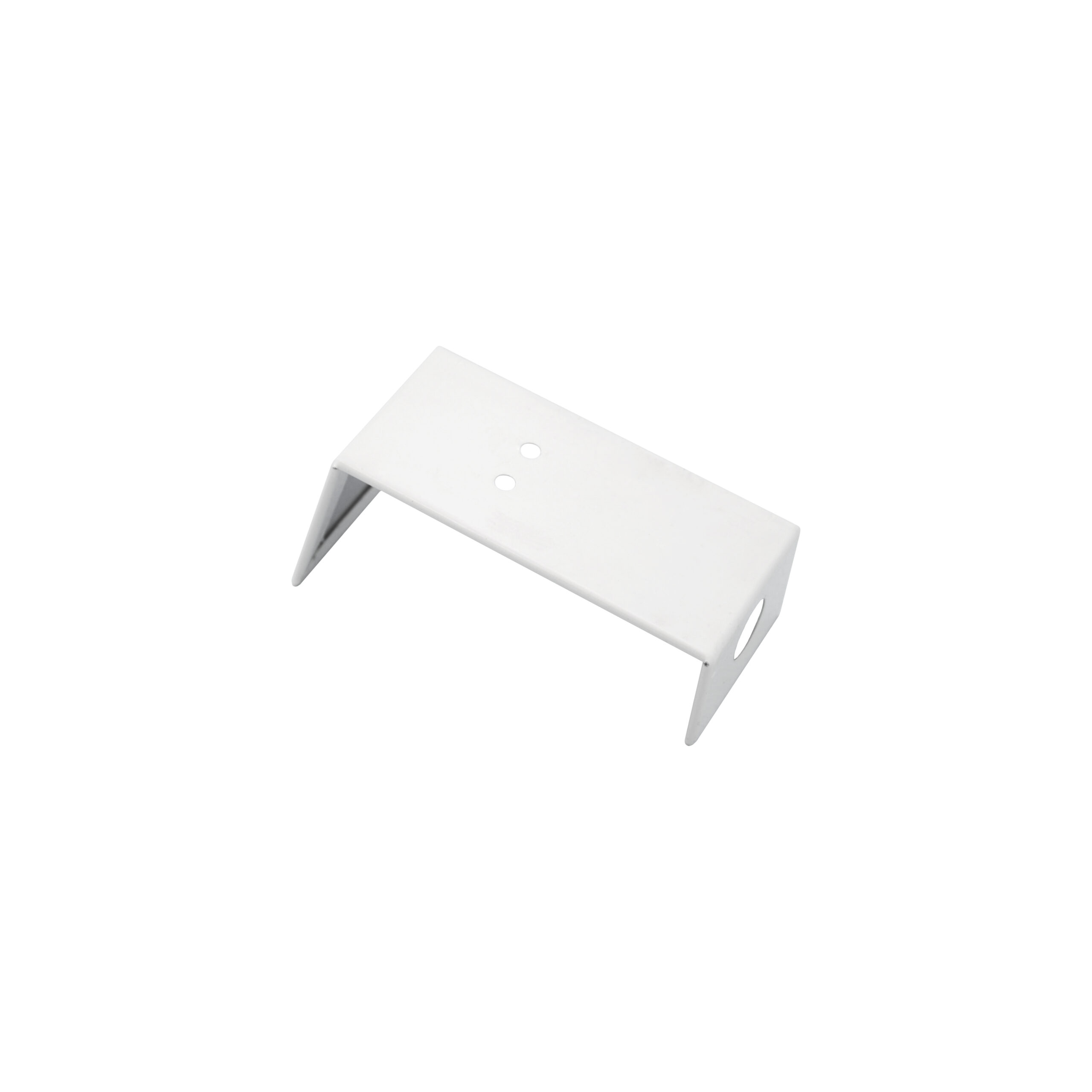

- bracket for nebulizer nozzle

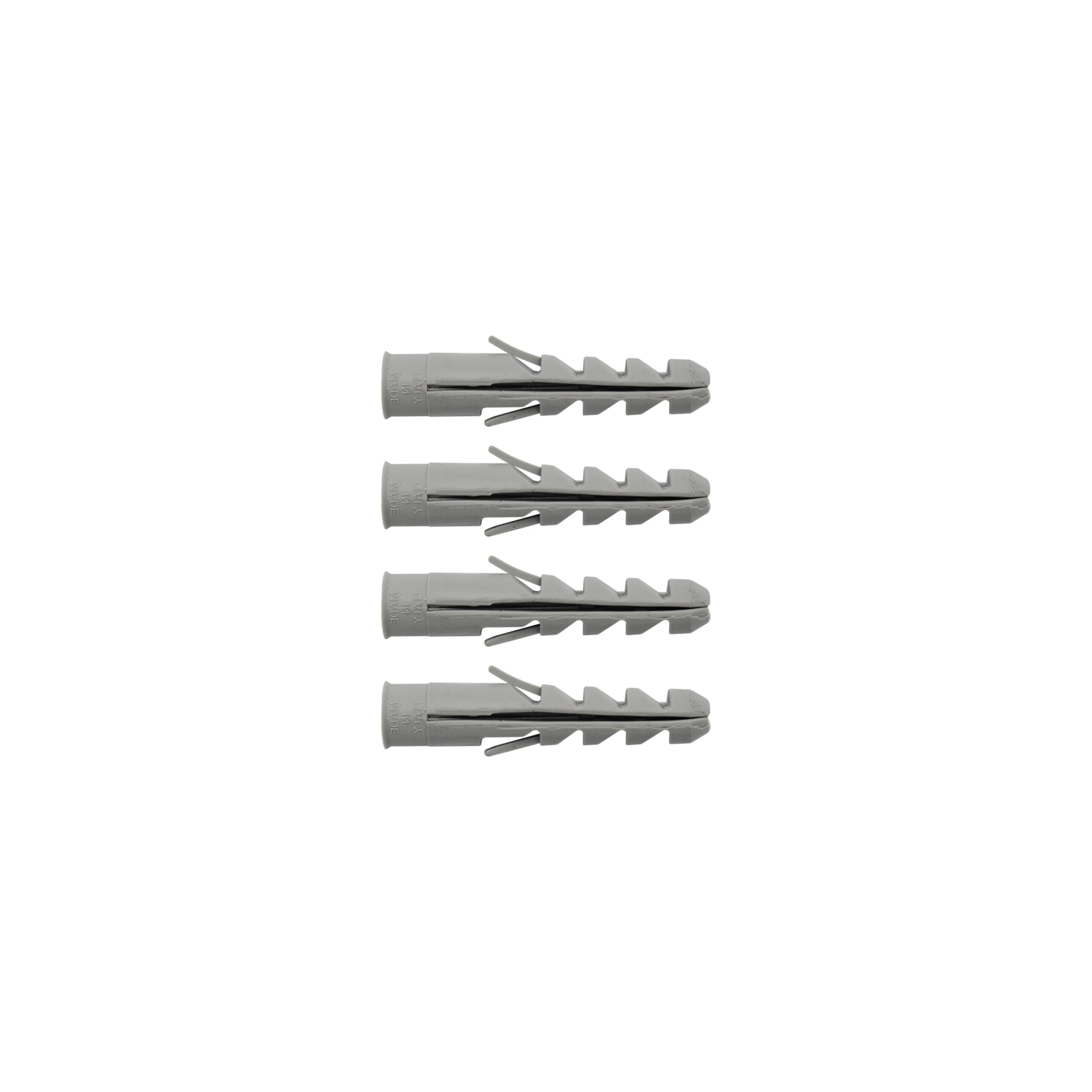

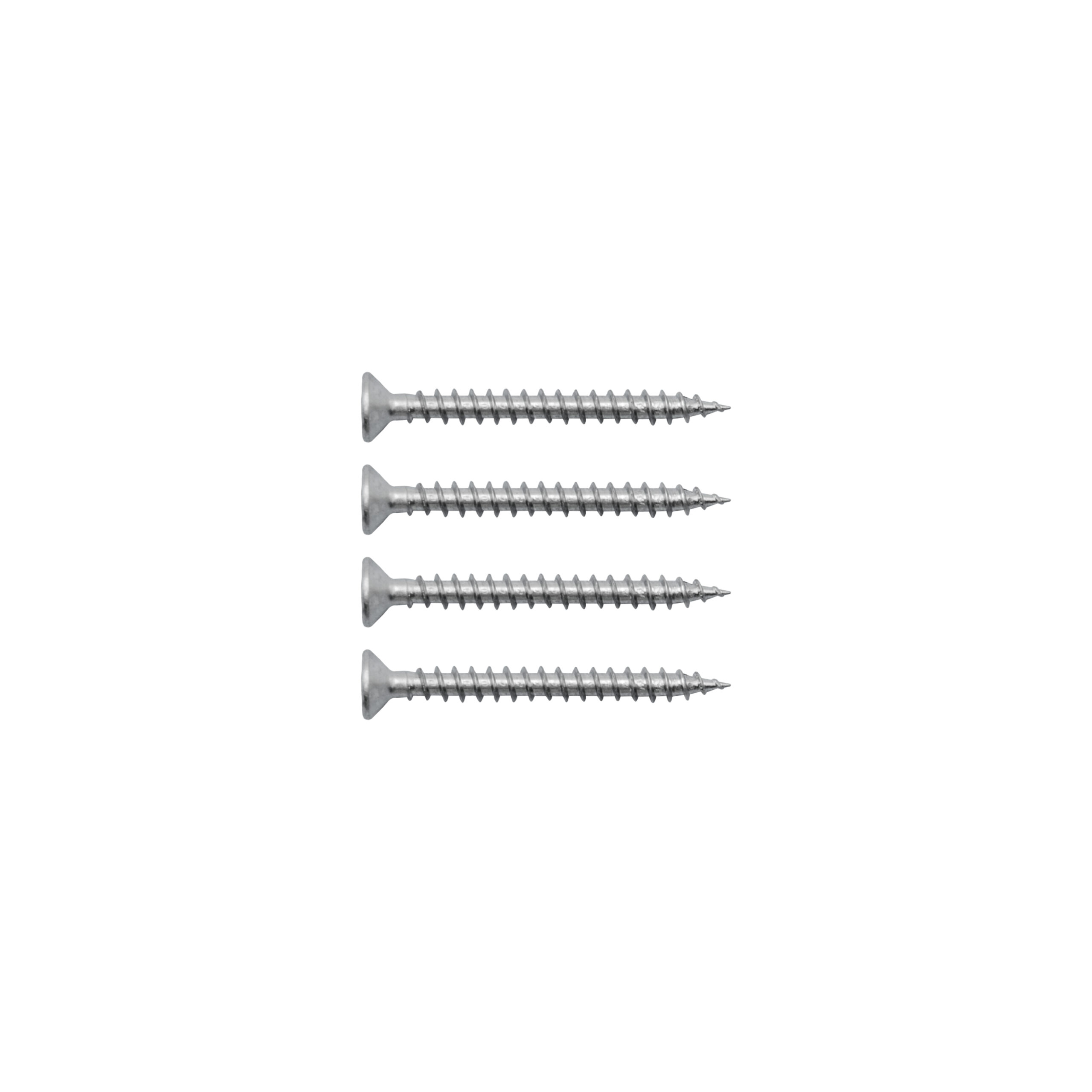

- wall plugs kit for wall mounting
- hose clamp 2,4 x 200 mm

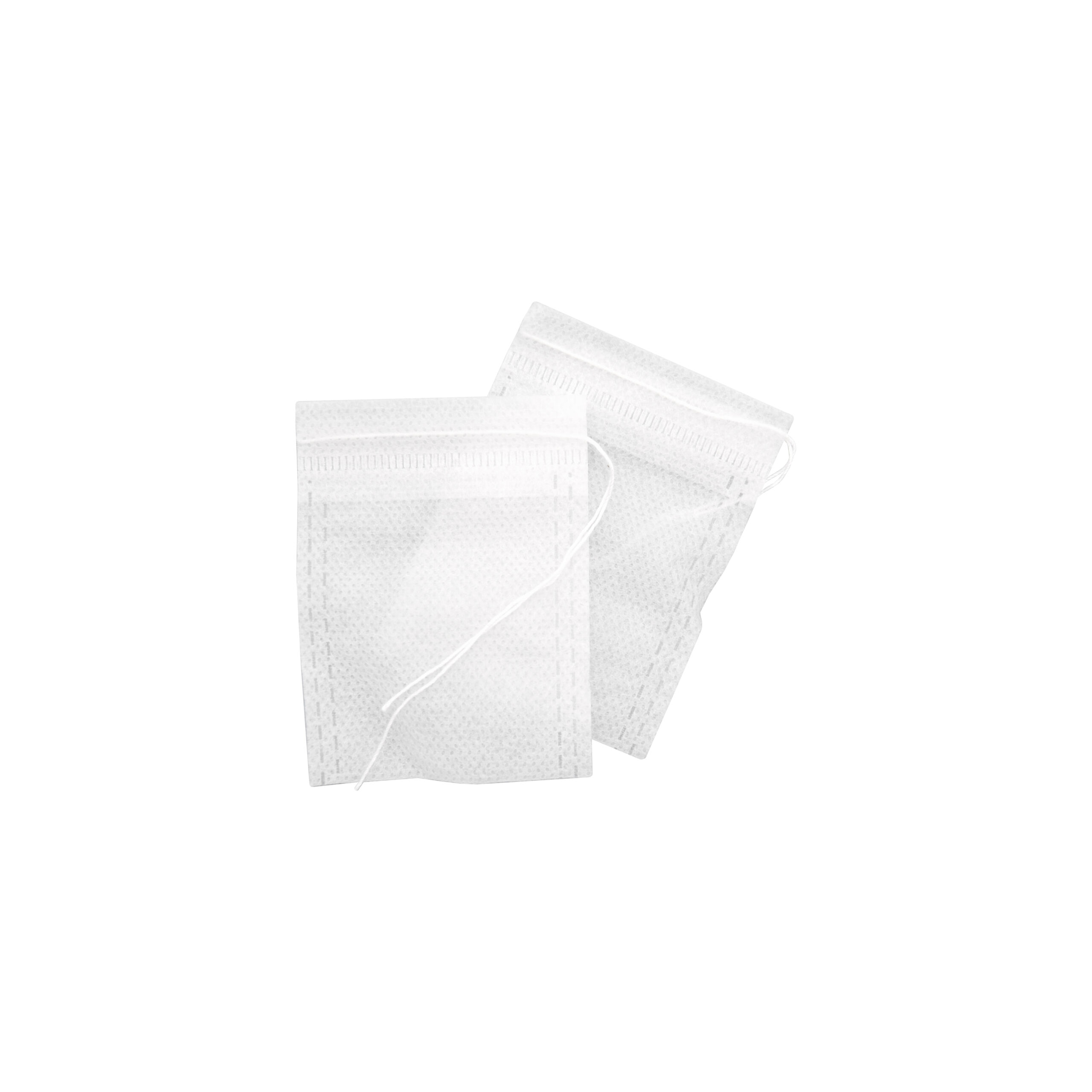

- anti-impurity filter (2 pcs)

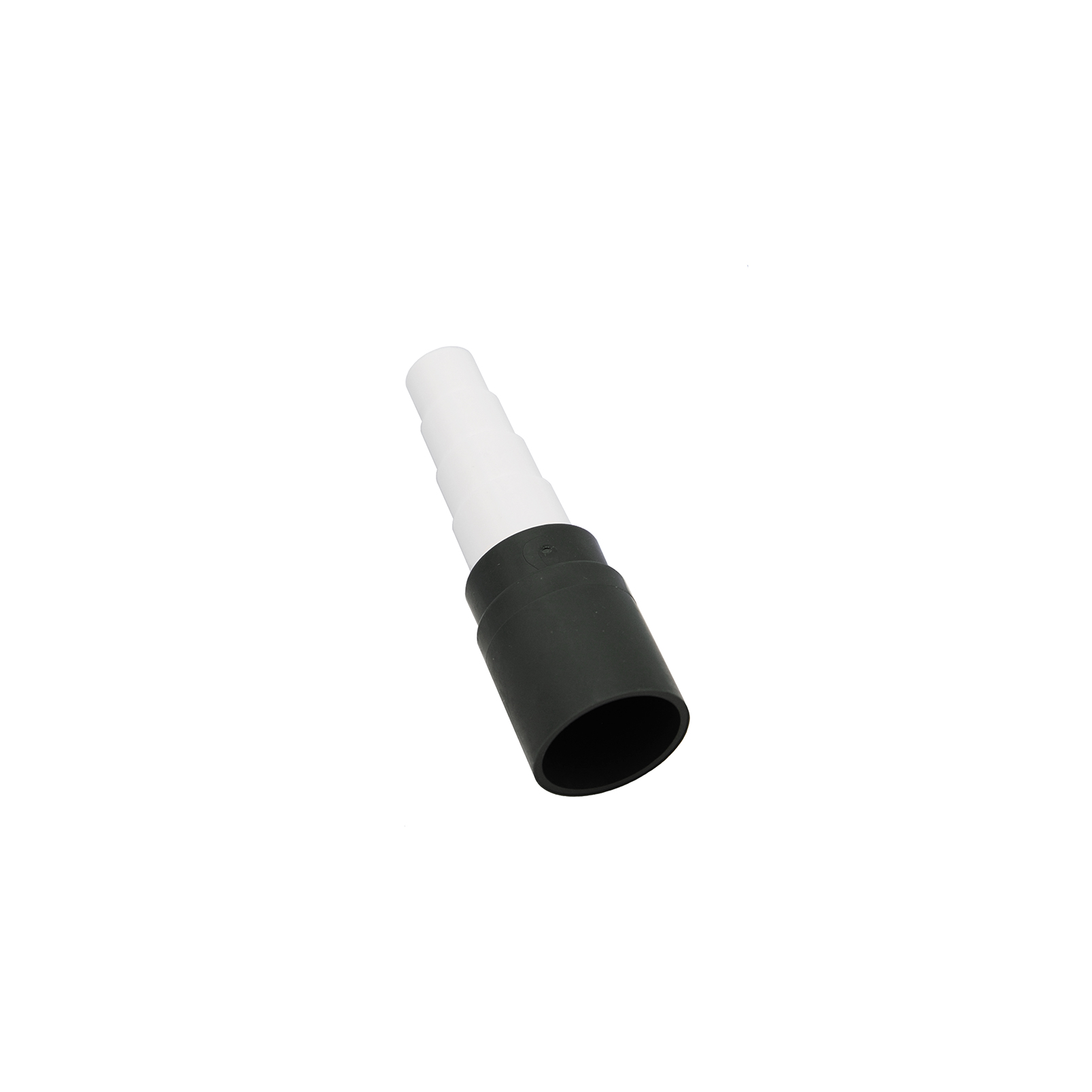

- adapter for corrugated pipe
MAINTENANCE KIT
A maintenance kit for restoring functionality is also available and includes:
- isophonic panel (1 pcs)
- inspectable metal nozzles (2 pcs)
- polyethylene pipe 6x4 (5 m)
- spare filter set (5 pcs)
- rotating elbow (1 pcs)
- pipe clamps (2 pcs)
Technical Features
| VOLTAGE/FREQUENCY | 220-240 V / 50 Hz |
|---|---|
| TYPE | pressure atomizing condensate dispenser |
| MAXIMUM TANK CAPACITY | 275 ml |
| USEFUL TANK CAPACITY | 219 ml |
| DISPENSING RATE | 2.5 l/h con ugello |
| MAXIMUM ATOMIZING PRESSURE | 8 Bar |
| WEIGHTED ENERGY CONSUPTION | 50 W cycle / 0.5 W standby |
| NOISE LEVEL | 60 dB(A) |
| MOTOR | vibration pump |
| INSTALLATION | free-standing installation |
| DIMENSIONS | 158 x 160 x 69 mm (LxHxW) |
| WEIGHT | 1340 g |
