Charge Valve

Complete of pins and cap

	sku	model	price	info	add to cart

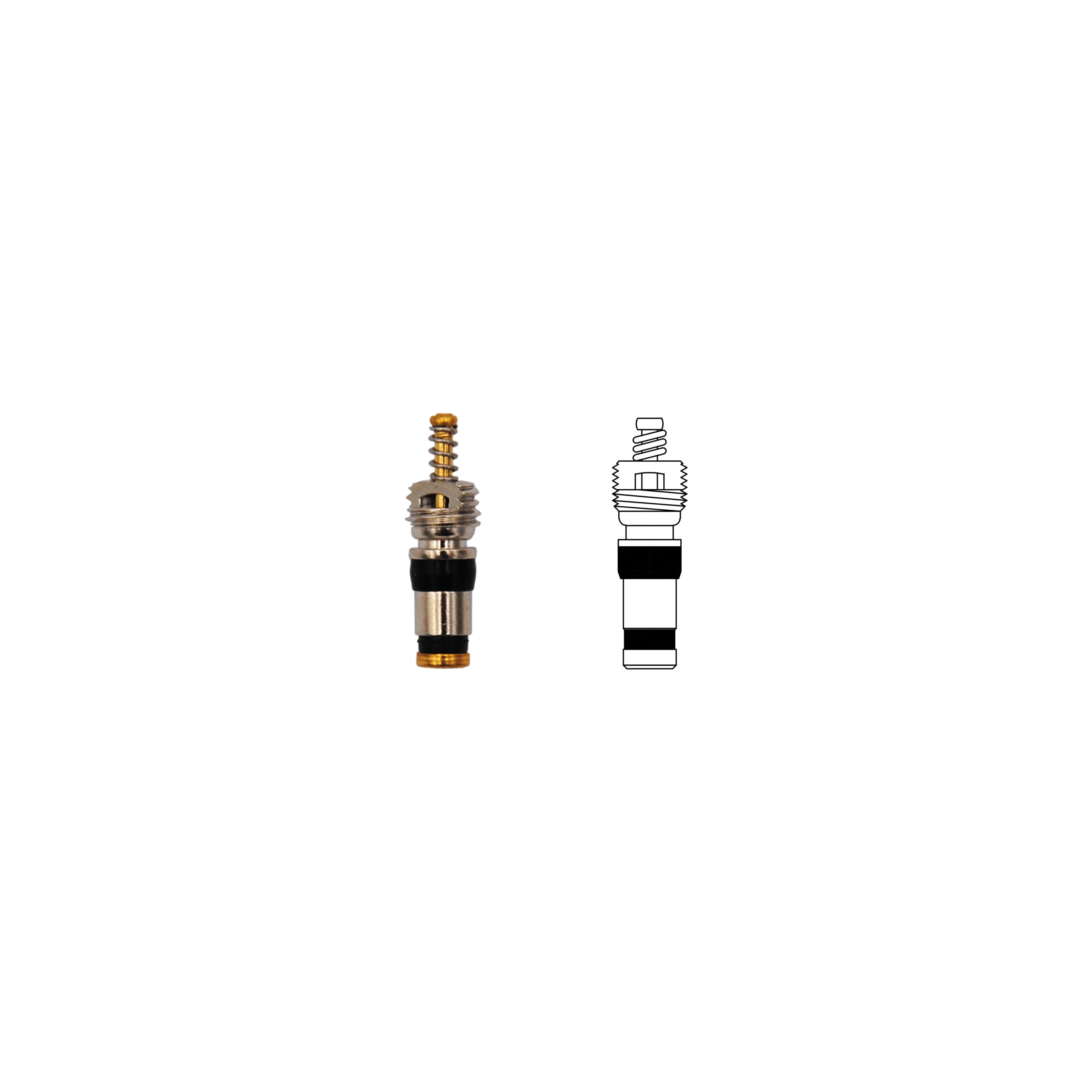

	00000011749	COMPLETE VALVE	€5,08 Excl. Taxes	Physical data UM Base: NR Dimension: 13 × 1 × 1 cm Volume: 0 m³ Weight: 0,03 kg Minimum Order Quantity: 1 Customs data Customs Code 74122000	Charge Valve quantity Buy Info Request

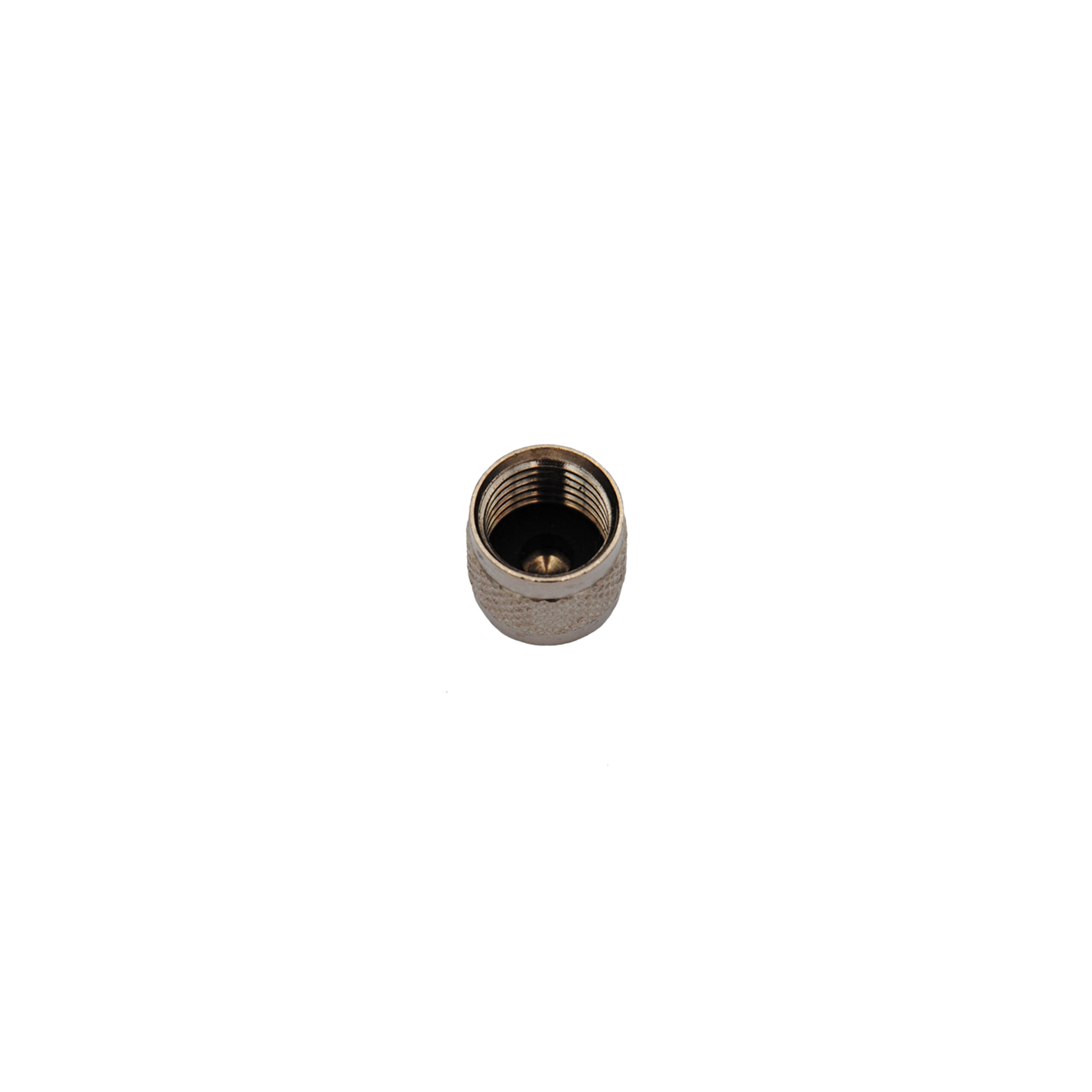

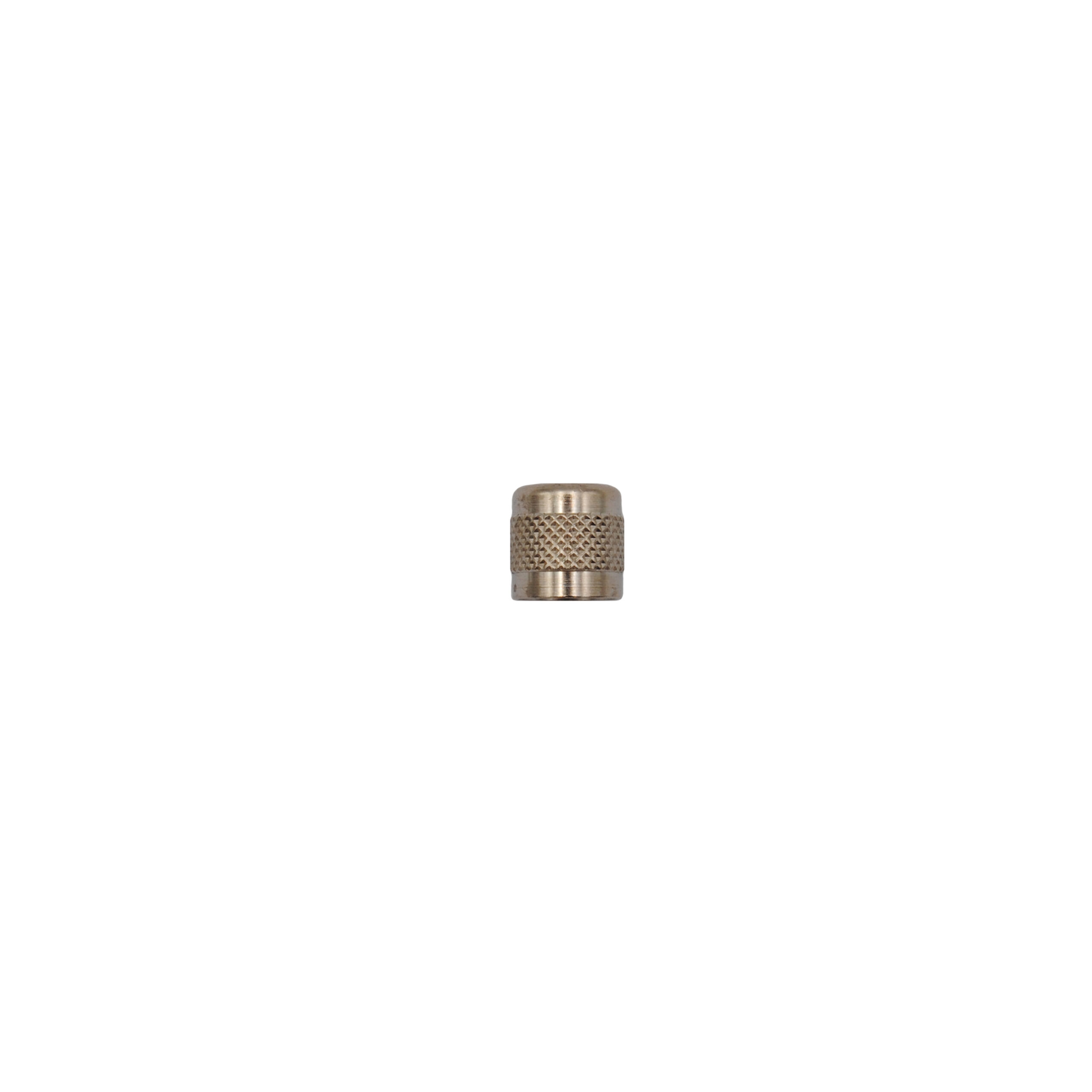

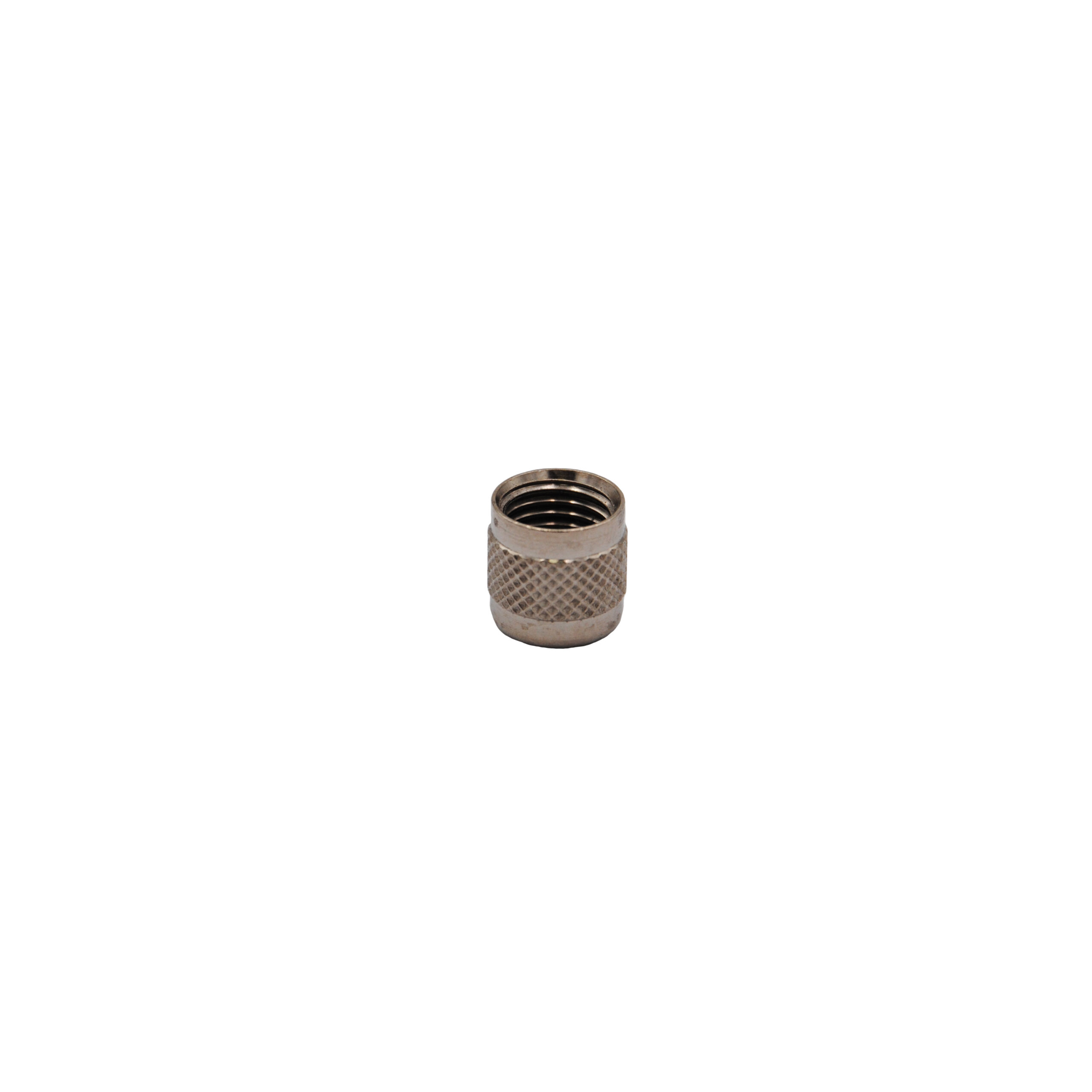

	0000011749C	REPLACEMENT SPARE CAP - 1/4" SAE	€0,98 Excl. Taxes	Physical data UM Base: NR Dimension: 1 × 1 × 1 cm Volume: 0 m³ Weight: 0,01 kg Minimum Order Quantity: 1 Customs data Customs Code 84159000	Charge Valve quantity Buy Info Request

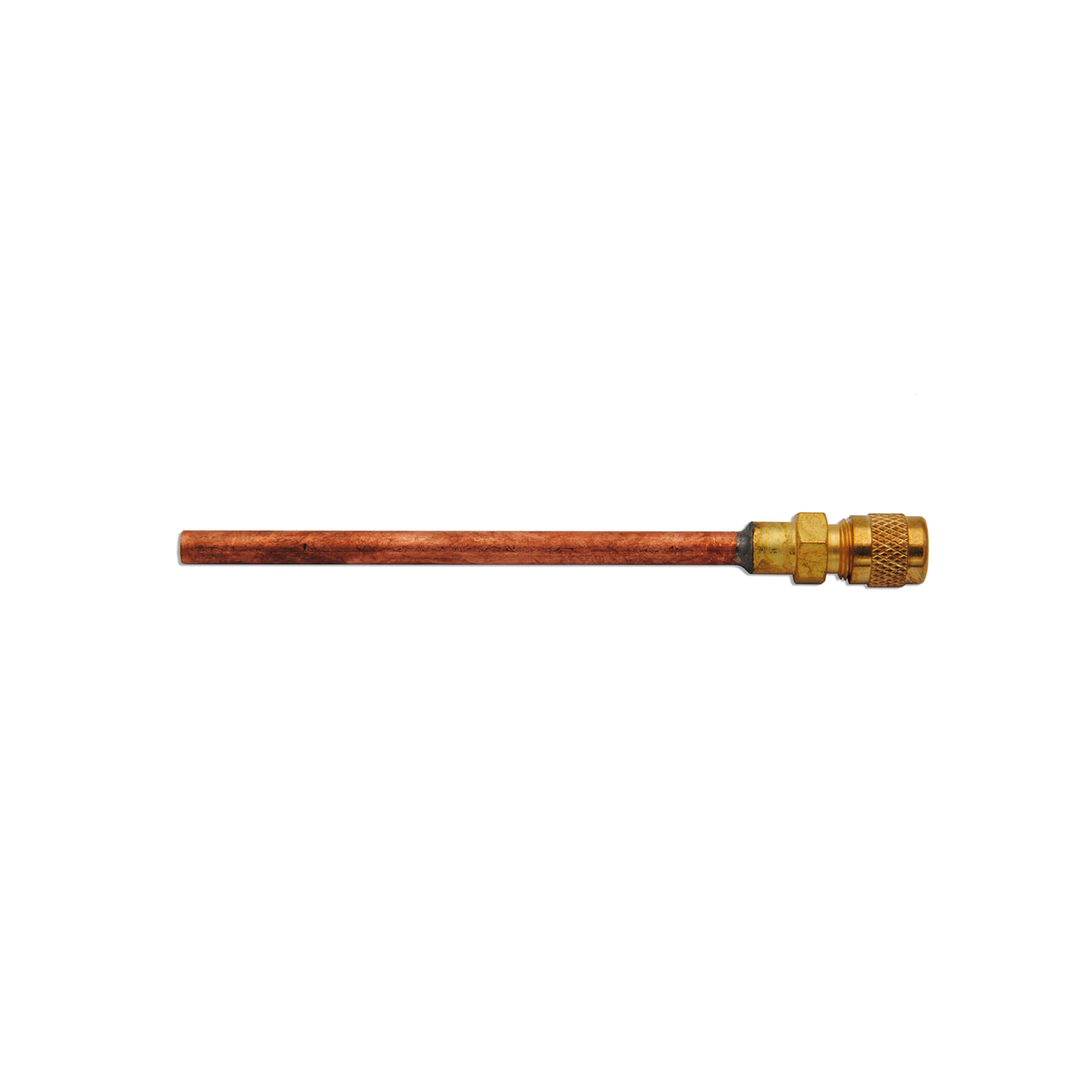

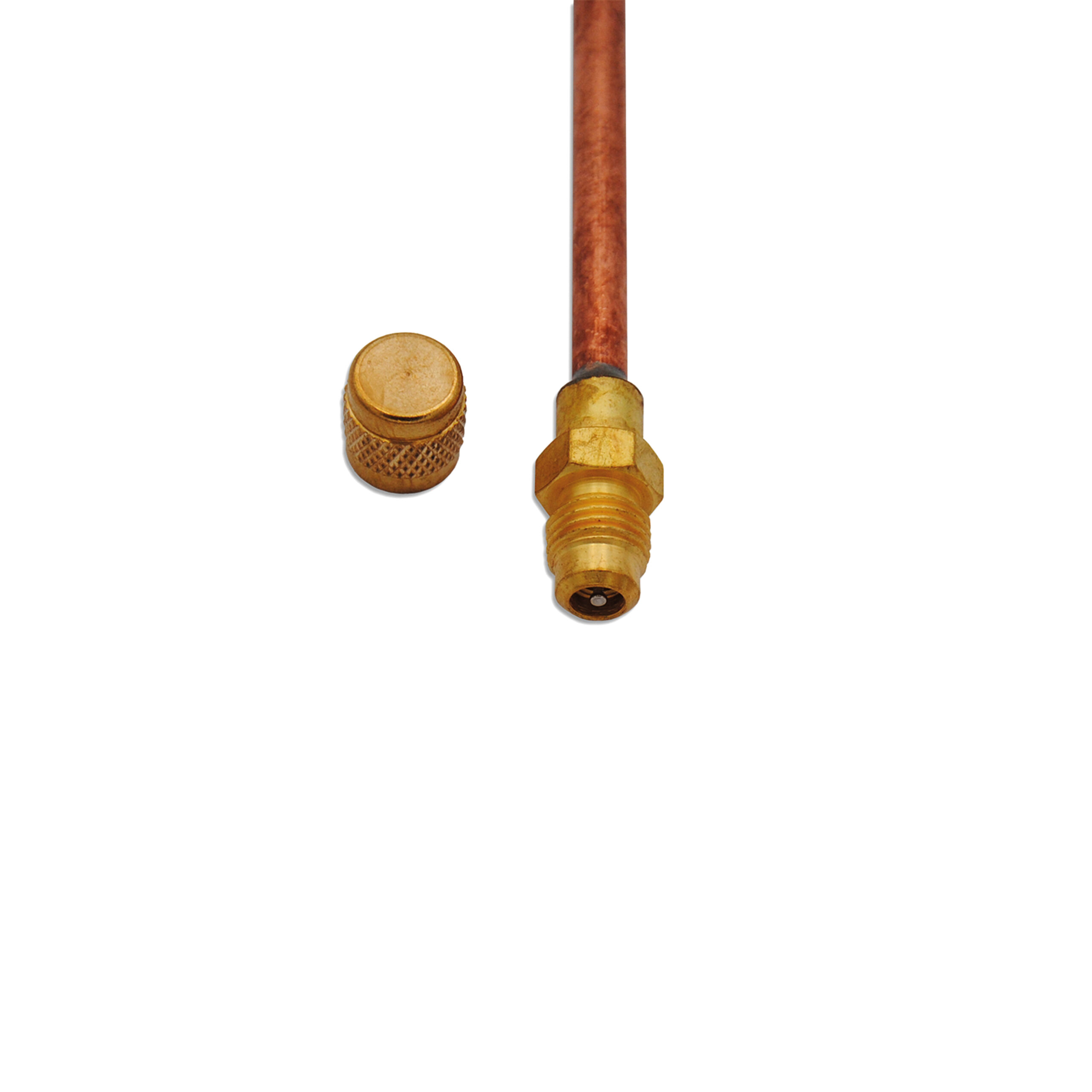

Charge valve complete of pins and cap.

Recommended fitting conditions

To prevent demage to the mechanism, remove the same before brazing

Pressure resistance

operating pressure is the maximum pressure under which the core plunger can be operated without being deteriorated during the opening-closing movement
static pressure is the maximum pressure under which the machanism can safely still in the closed position during its life; it may be called also working pressure

Refrigerants compatibility

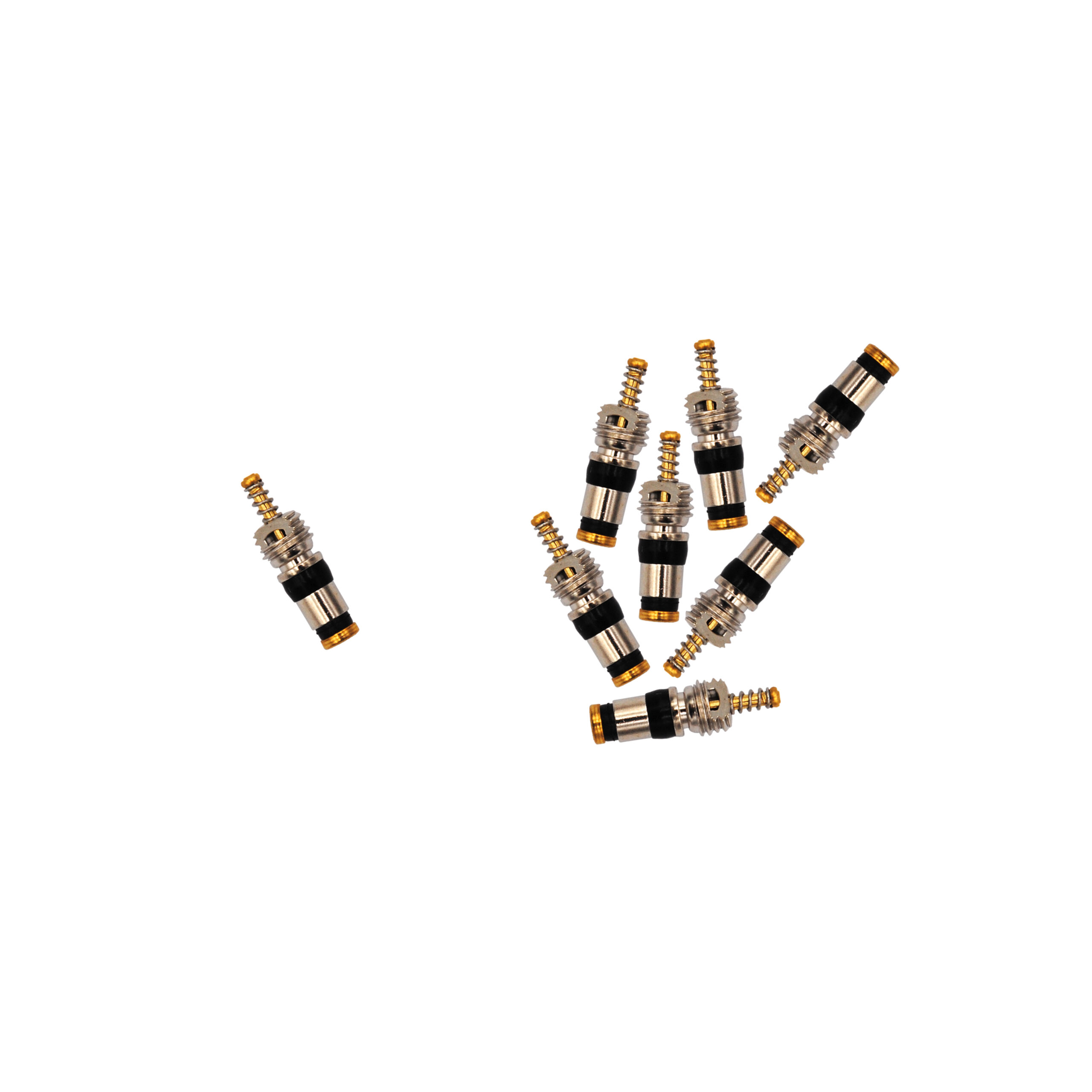

Internal mechanisms are suitable for refrigerants HCFC, HFC and R744.

Lubricants compatibility

Internal mechanisms are suitable for lubricants PAG, POE and MO (mineral oil).

Typical applications

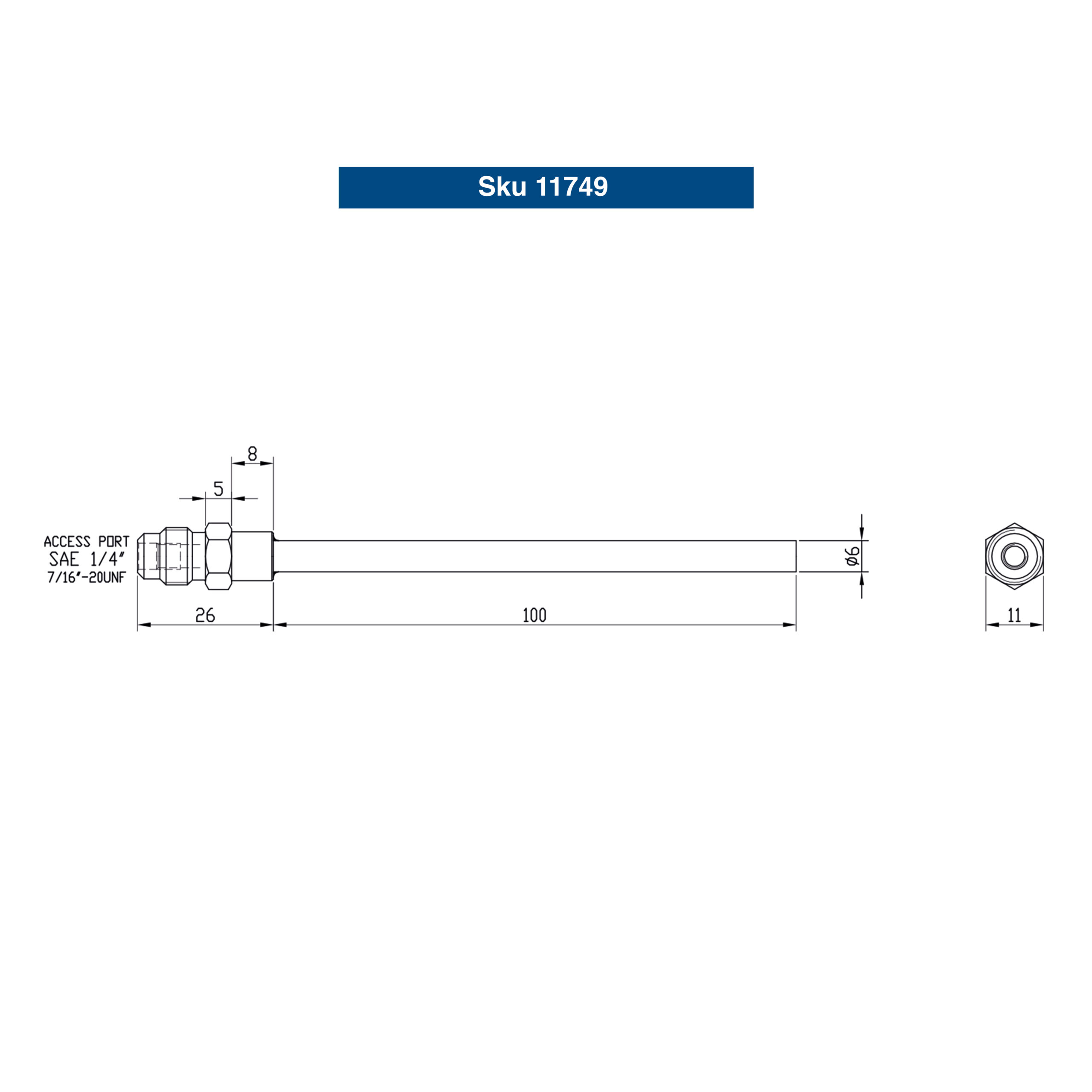

*SKU 11749*
*CONNECTION*	1/4" SAE
*PIPE LENGTH*	100 mm
*TOTAL LENGTH*	126 mm
*ANSI/ASME B1.1 THREAD (male)*	7/16" - 20 UNF - male 1/4"
*EXTERNAL DIAMETER OF THE COPPER PIPE*	6 mm
*TEMPERATURE RANGE*	- 40°C ÷ + 150°C
*MAX WORKING PRESSURE*	140 bar
*TIGHTENING TORQUE Nm*	11 ÷ 14

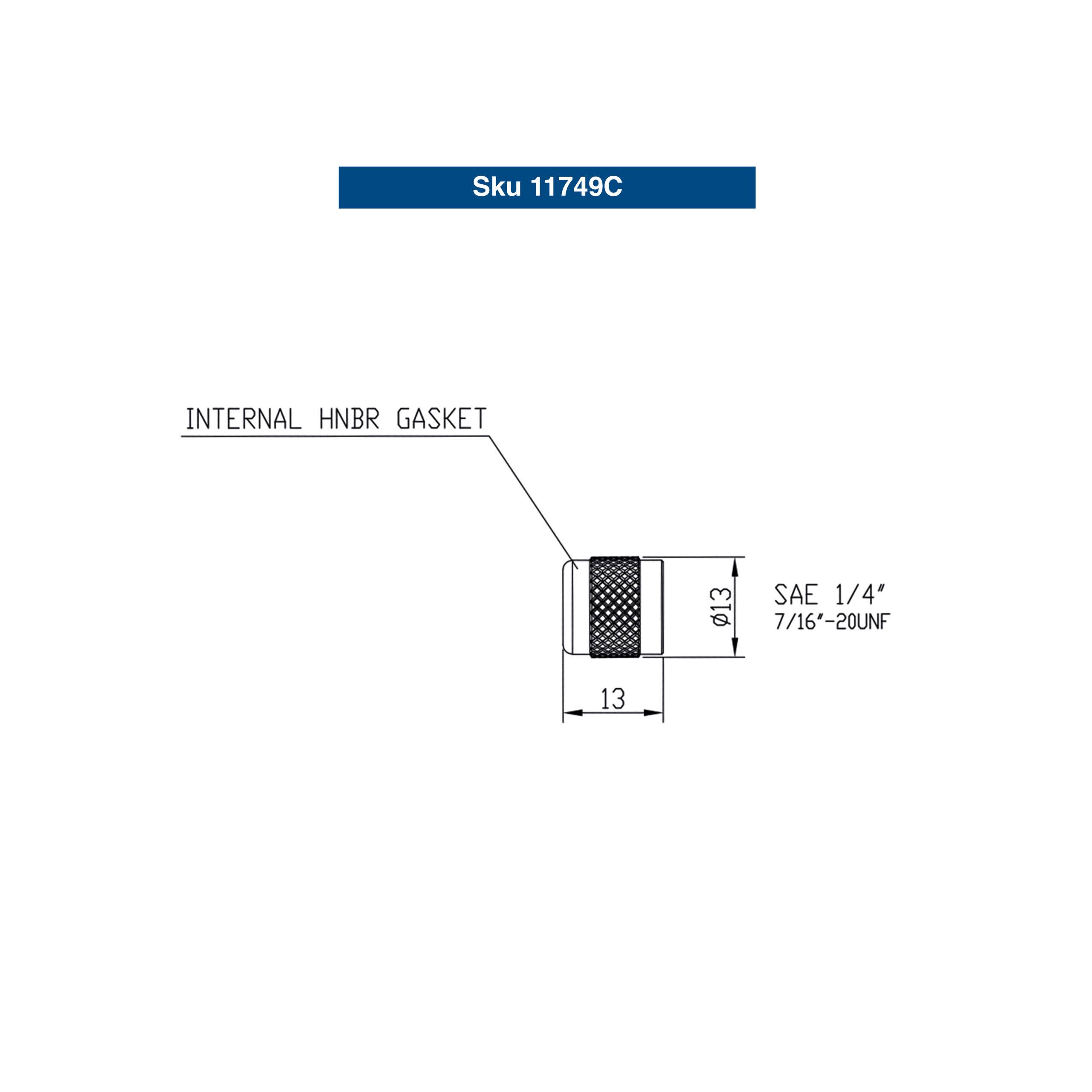

*SKU 11749C*
*THREAD ANSI/ASME B1.1*	7/16" - 20 UNF
*TIGHTENING TORQUE*	hand-tightened (without key for internal mechanism)
*MATERIAL*	nickel-plated brass, supplied with an internally premounted seal (not O-ring)
