Centrifugal Pump with High Flow Rates
Flowtank model
NOT FOR BOILERS
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011907 |
 FLOWTANK PUMP |
€187,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

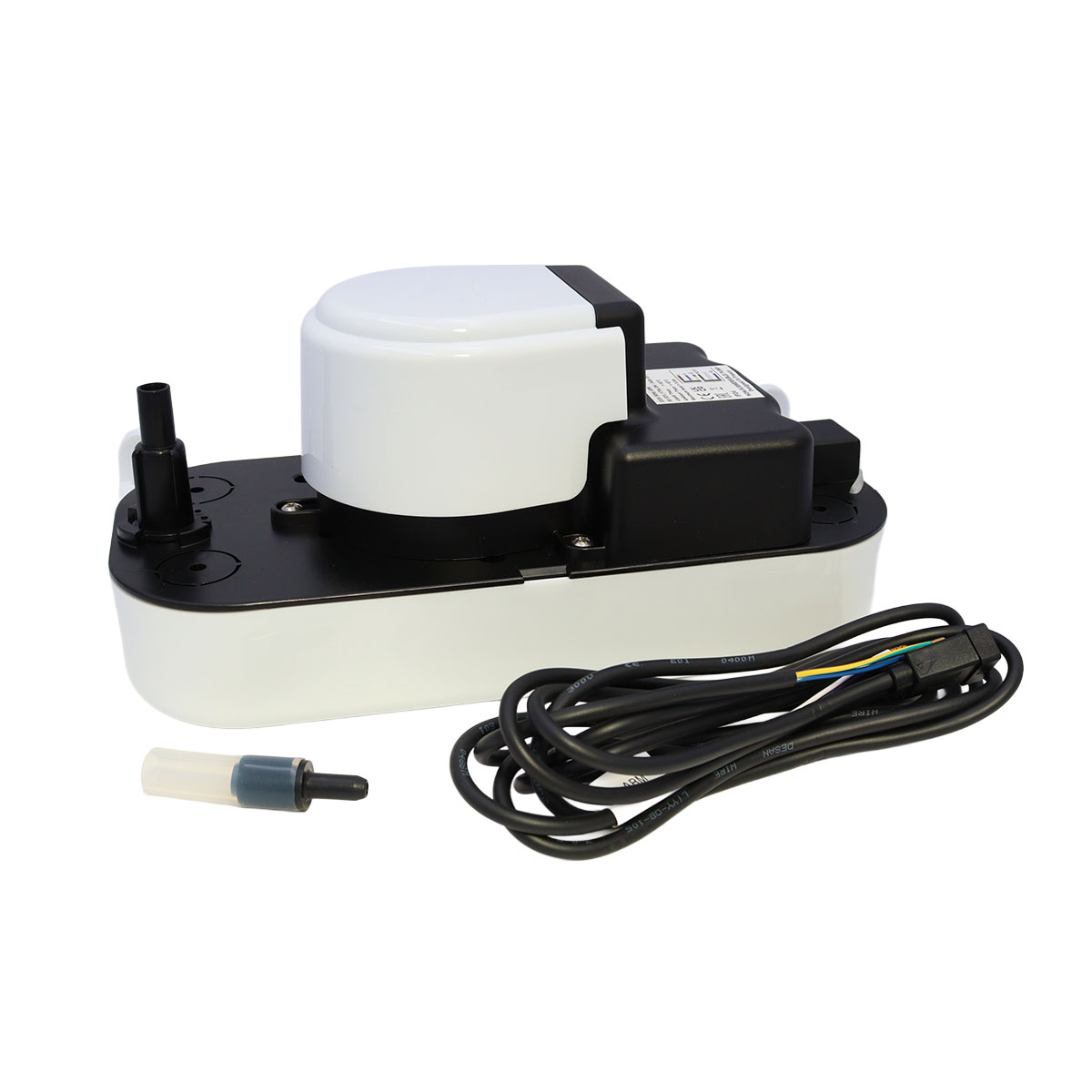

FLOWTANK, the centrifugal pump with high evacuation flow rates, designed for application in showcases, refrigerated counters and air conditioners with or without a collection tank, where the condensation water is particularly full of impurities.
Product features
- reversible tank that allows the installation of the pump in all configurations and compact for easy accommodation in small spaces
- with input adapter to avoid all problems of connecting the boiler to the pump
- high performance
- universal, disconnectable electrical connection for easy installation and maintenance
The kit includes
- FLOWTANK centrifugal pump

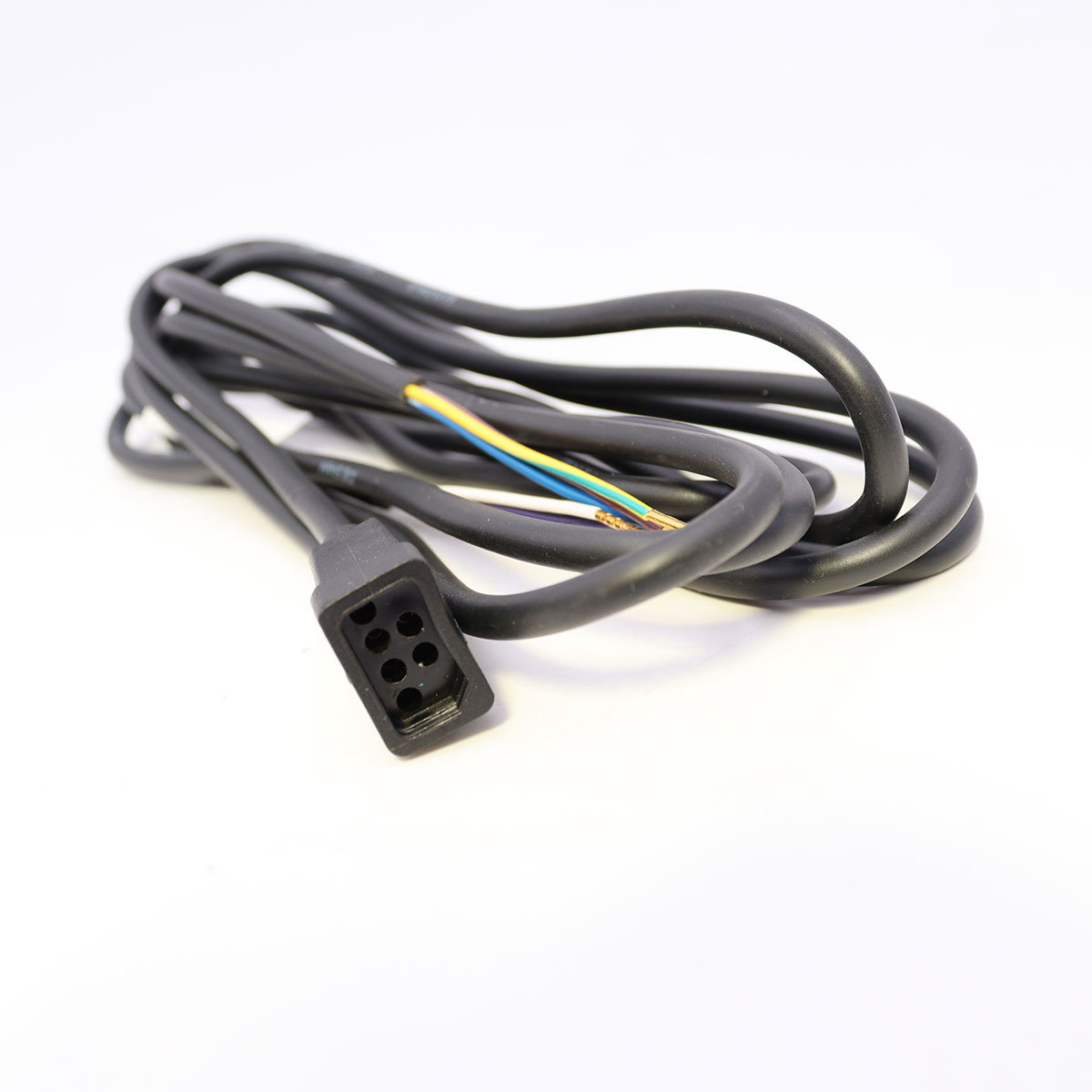

- power/alarm cable
- outlet adapter Ø 6/9 mm

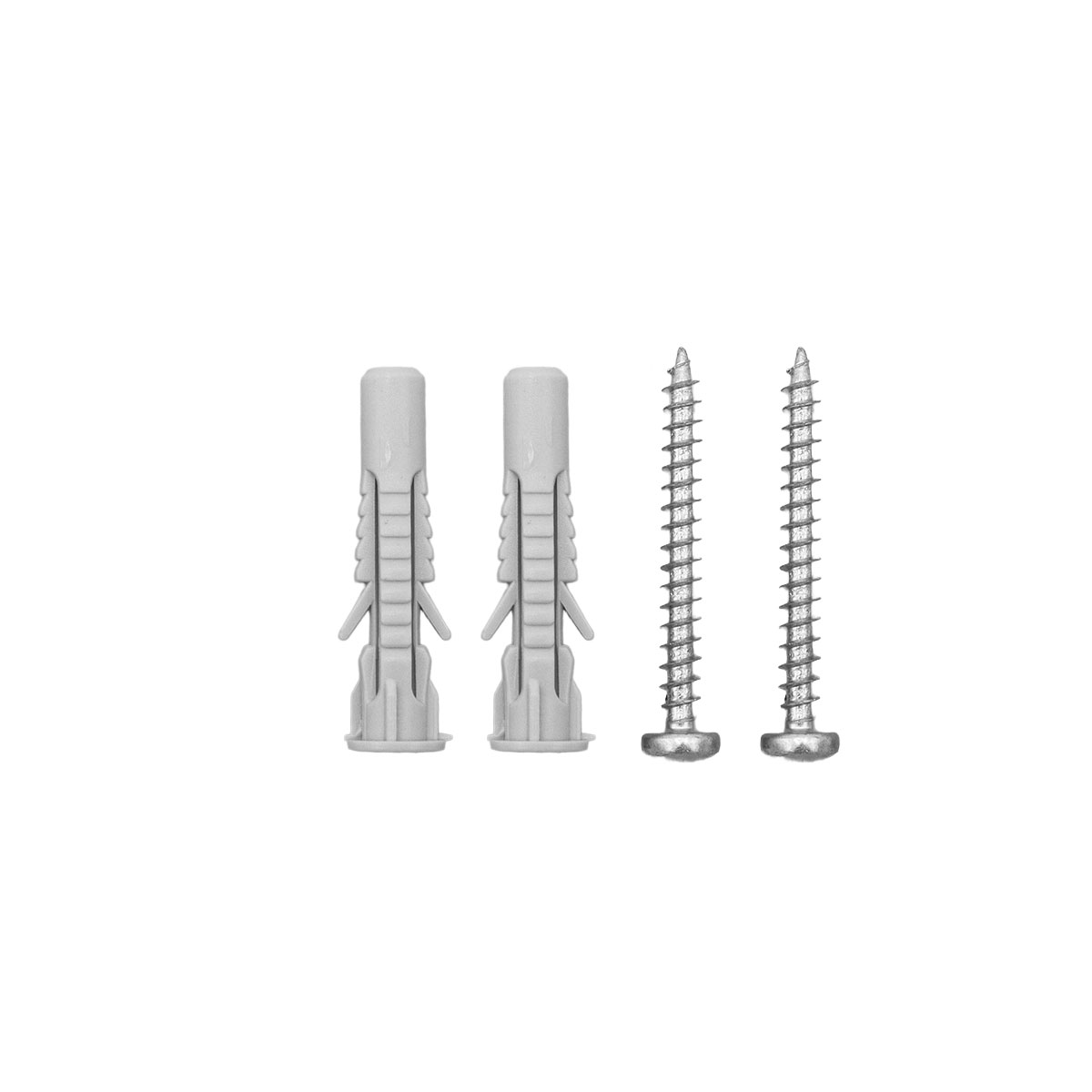

- screws and plugs
Technical Features
| POWER SUPPLY | 230 V 50 Hz 65 W |
|---|---|
| MAXIMUM FLOW RATE | 800 l/h |
| MAX DISCHARGE | 5,6 m |
| TANK | 1,2 l |
| MAXIMUM TEMPERATURE OF THE LIQUID | 60°C |
| PH RESISTANCE | > 2,5 |
| DEGREE OF PROTECTION | IP24 (splash-proof) |
| ALARM | integrated |
| OUTLET DIAMETERS |
|
| Non-return valve removable in ¼ turn | |
| PUMP DIMENSIONS | 280x130x129 mm (BxDxH) |
