Capillary Limiter Thermostat
With safety temperature limiter
CE, ENEC03, EAC, UL APPROVED
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000R03004 |
CAPILLARY LIMITING THERMOSTAT (INAIL) - L. 1500 mm (PVC coated) - MANUAL RESET - INAIL CERTIFICATE |
€27,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000R03005 |
CAPILLARY LIMITING THERMOSTAT - L. 1000 mm - AUTOMATIC RESET - INAIL CERTIFICATE |
€28,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

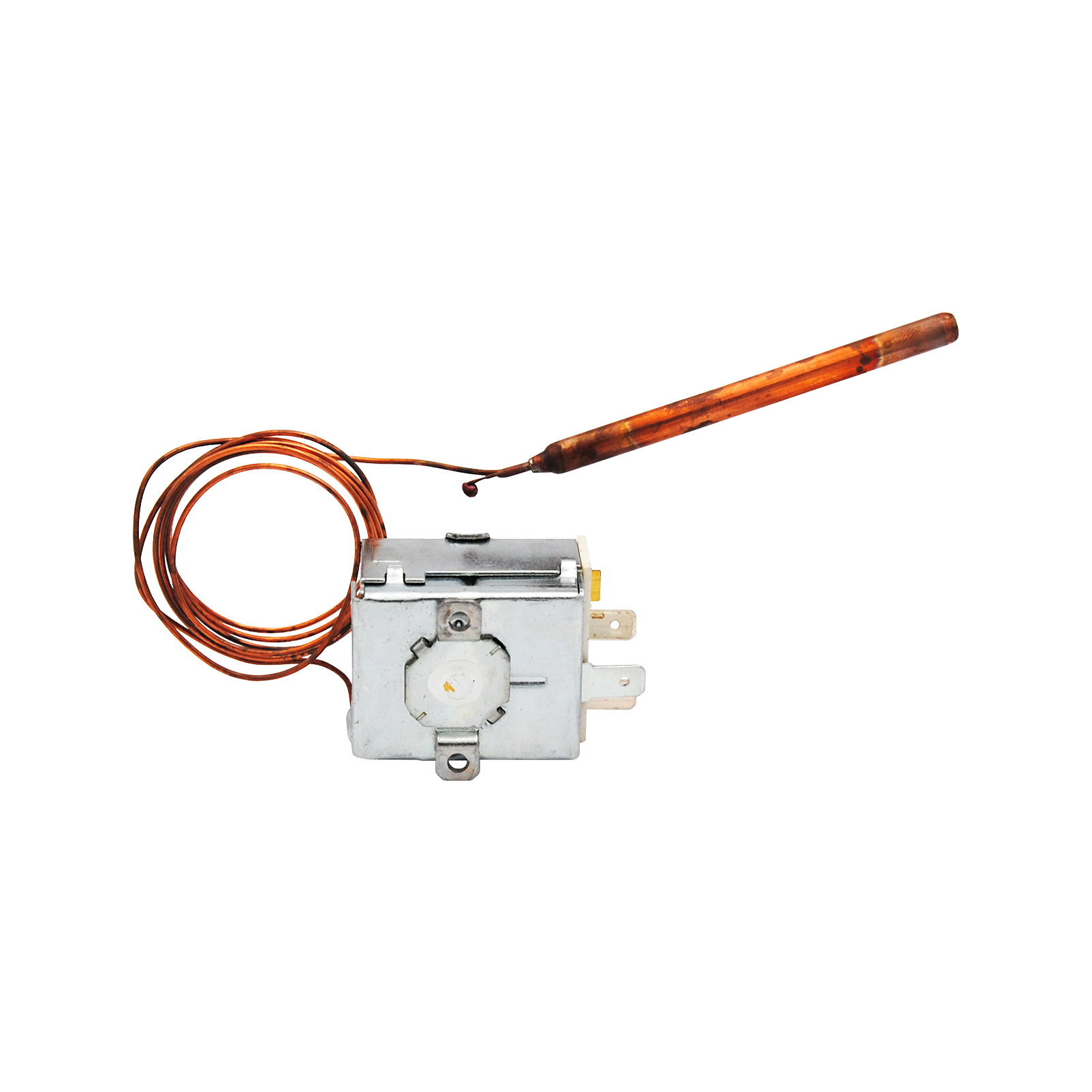

Capillary thermostat equipped with liquid expansion probe, unipolar, with safety temperature limiter; with manual or automatic reset equipped with positive safety in case of capillary breakage.
Technical Features
| CONTACTS | interrupted due to temperature increase |
|---|---|
| ELECTRICAL CONTACT CAPACITY |
|
| MAXIMUM HEAD TEMPERATURE | 85°C |
| MAXIMUM BULB TEMPERATURE | 125°C |
| MINIMUM RADIUS OF CURVATURE OF THE CAPILLARY | 5 mm |
| ADJUSTABLE TEMPERATURE | + 100°C |
| CAPILLARY LENGTH |
|
| RESET |
|
| BULB SIZE | Ø 6,5 x 95 mm |
