Brass Male Caps
For copper pipes
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|

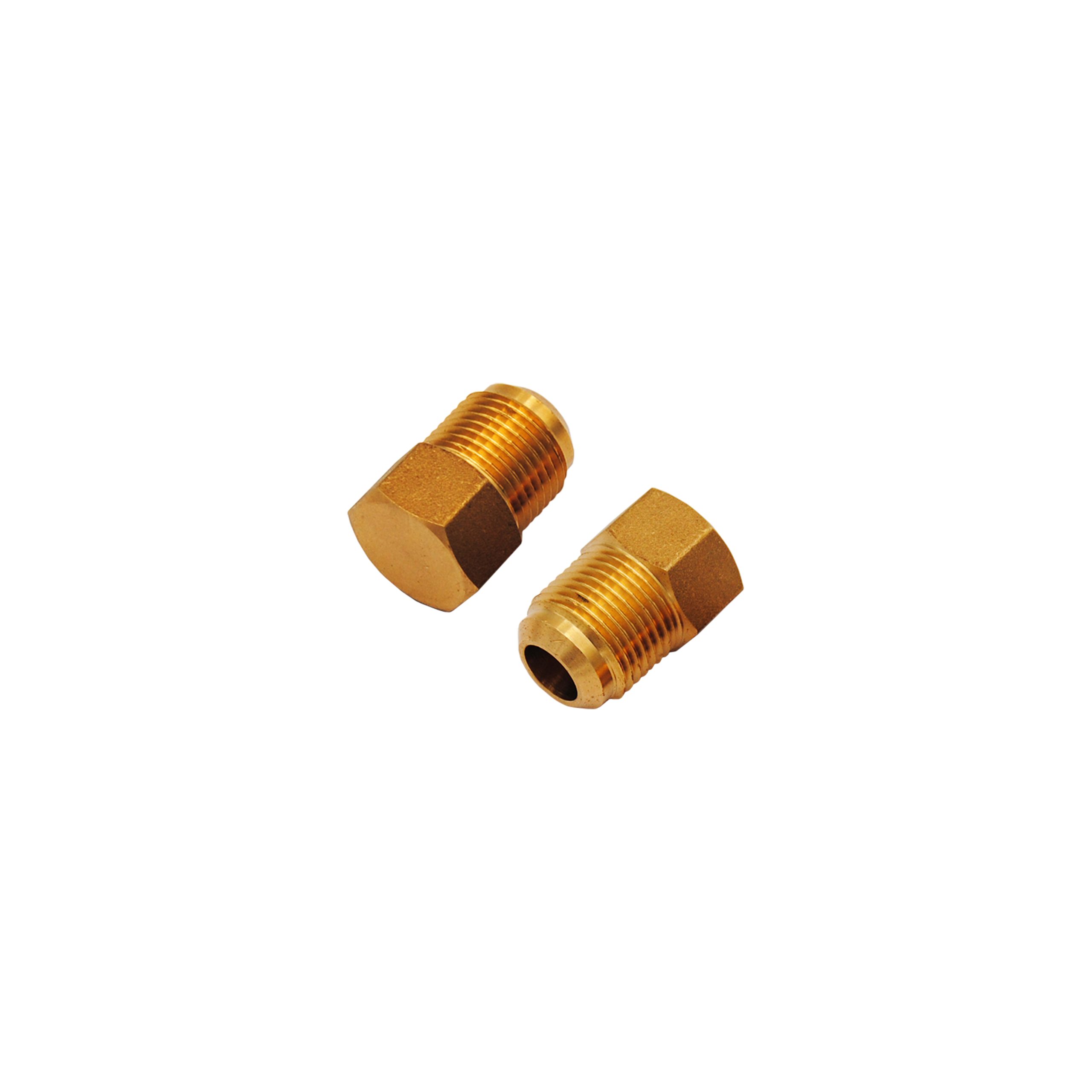

00000019105 |
 BRASS CAP - 1/4" SAE M. - 10 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|

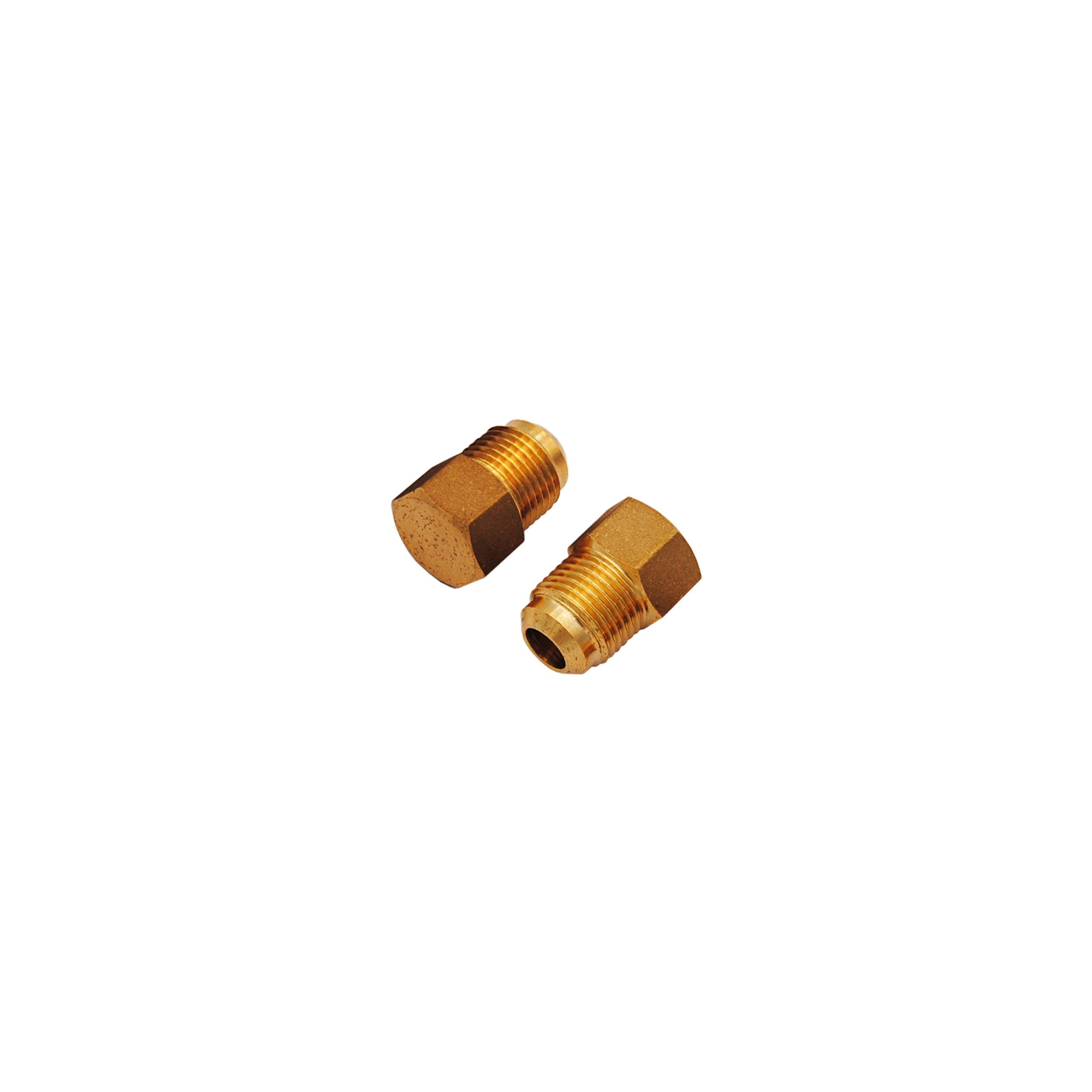

00000019106 |
 BRASS CAP - 3/8" SAE M. - 10 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|

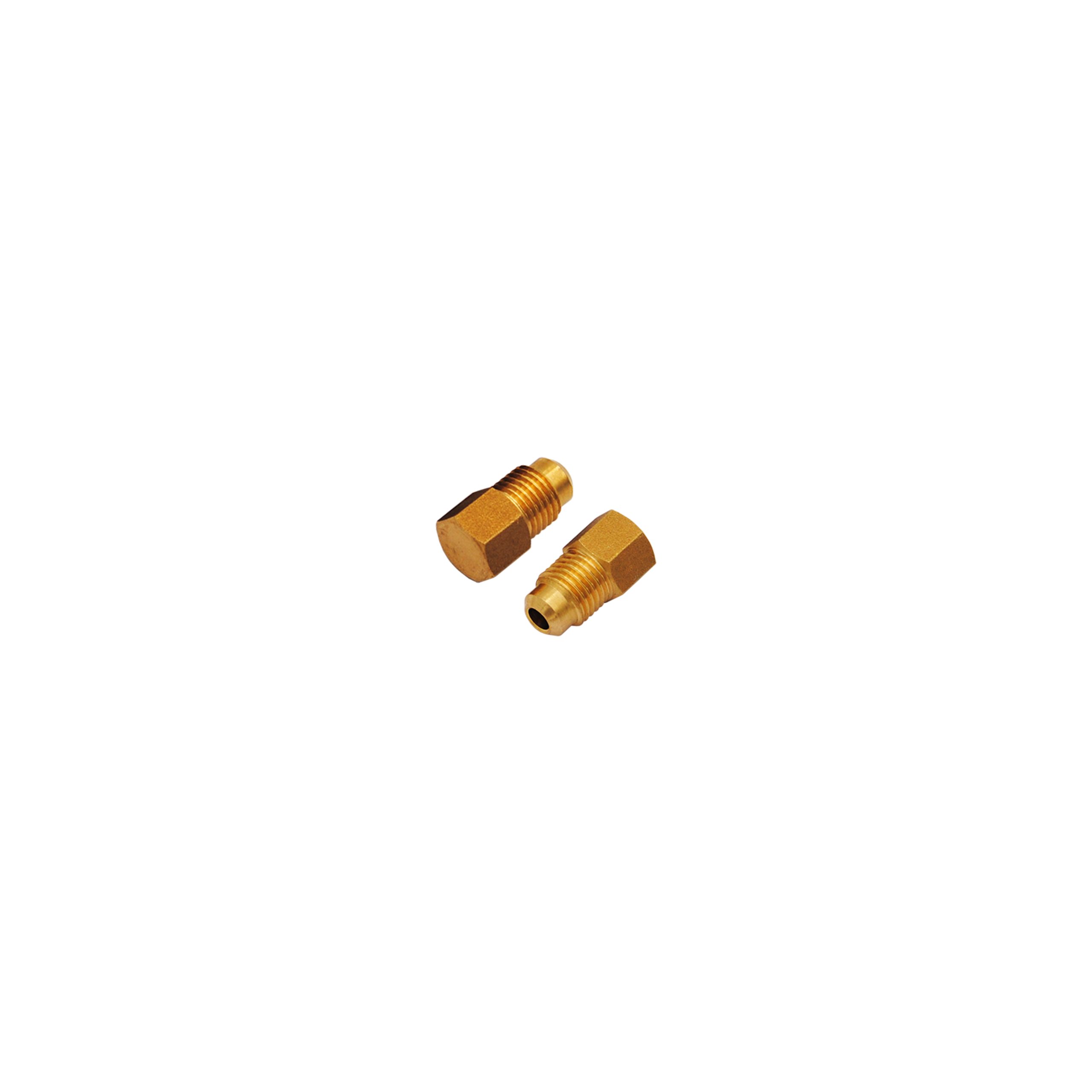

00000019107 |
 BRASS CAP - 1/2" SAE M. - 10 pcs. |
on request |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

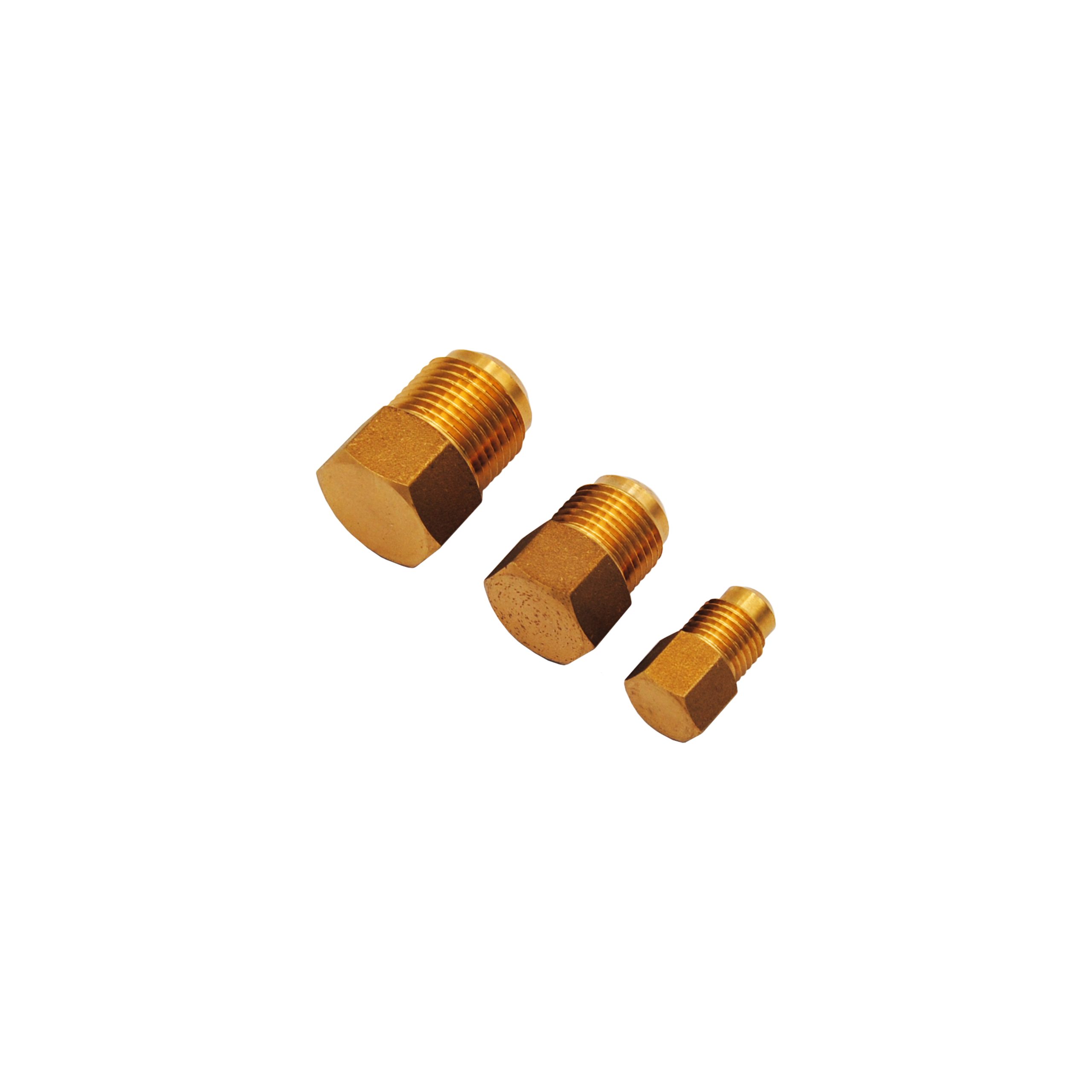

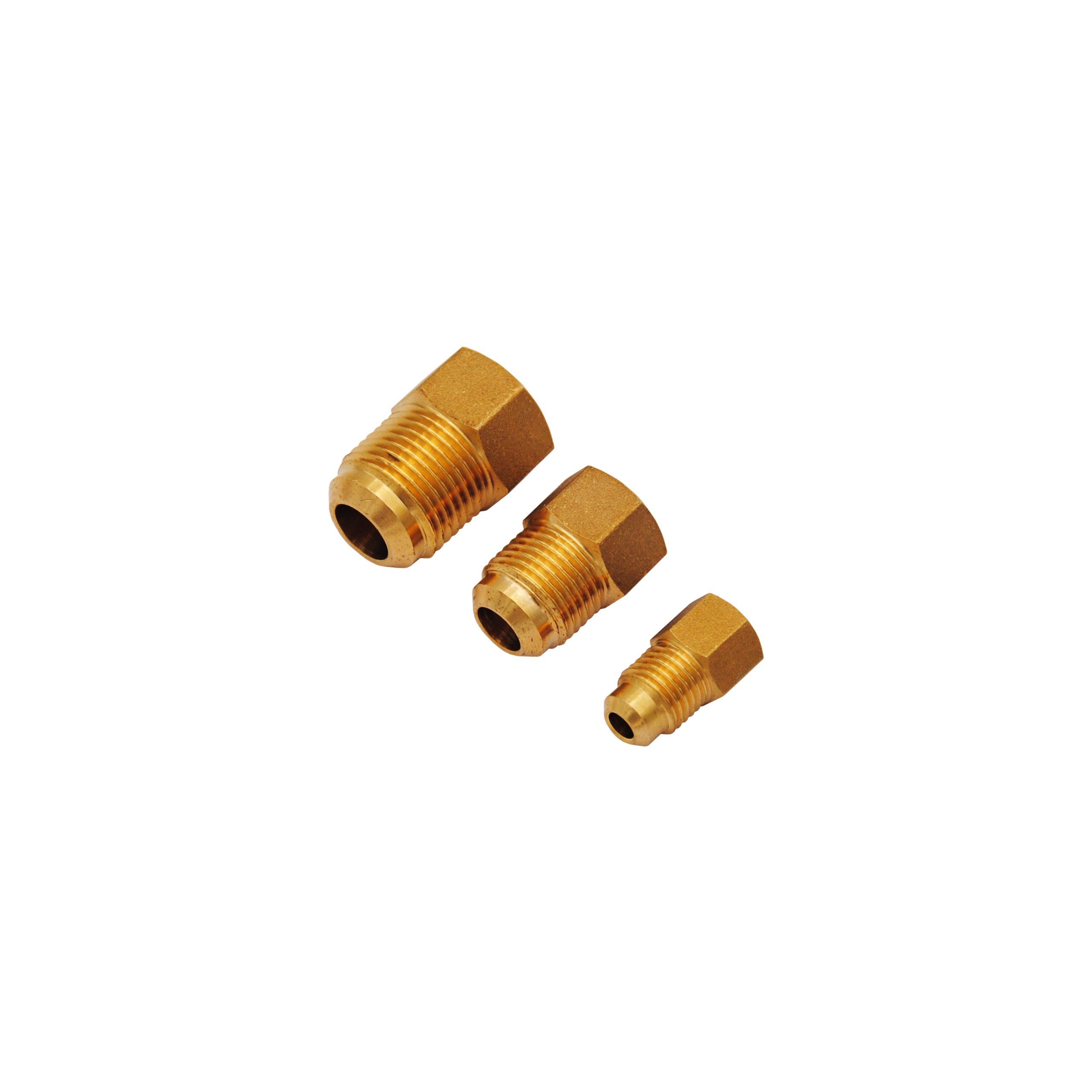

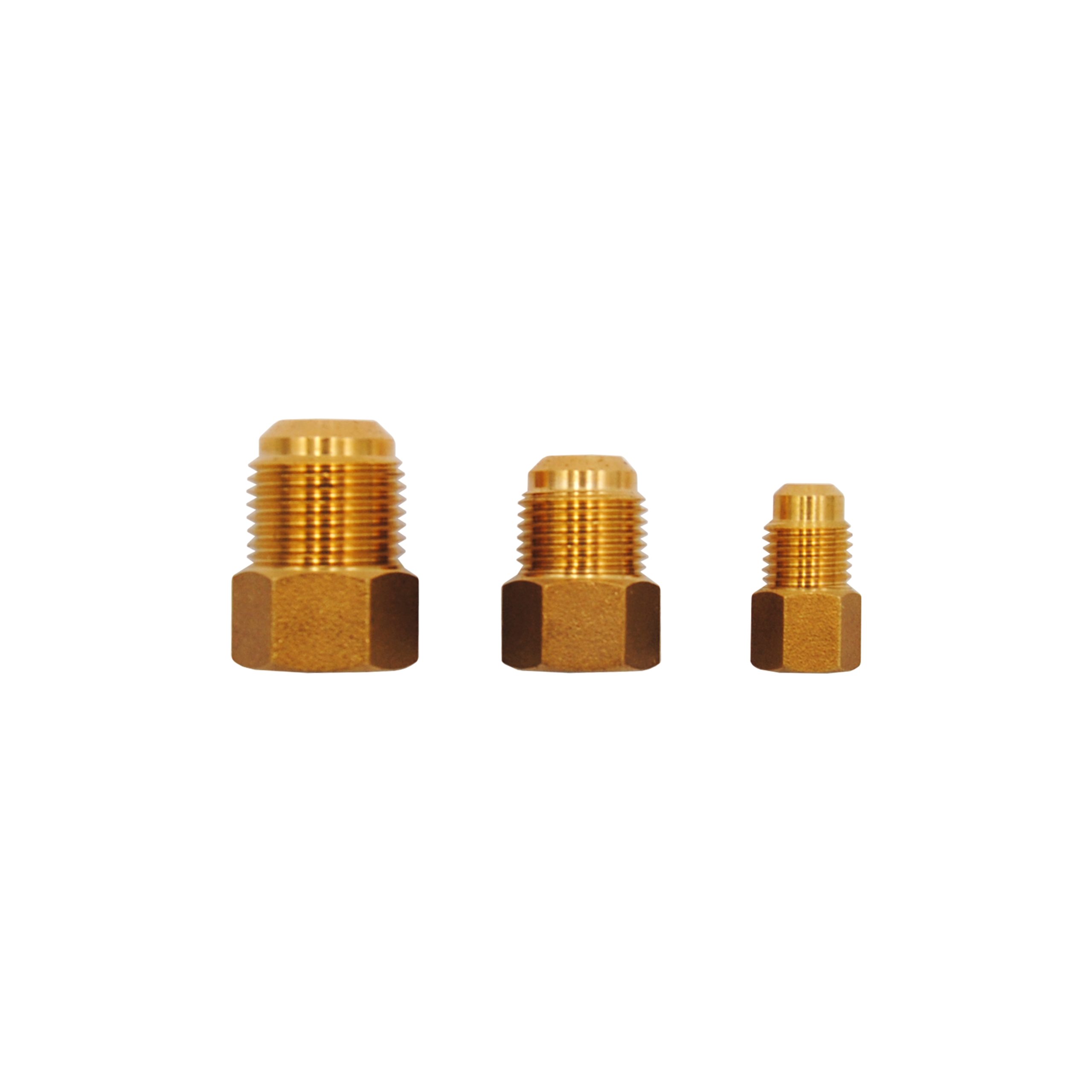

Brass male caps for copper pipes.
Product features
- forged from forged brass or drawn brass bar that eliminate the possibility of leakage due to porosity in the material
- low-roughness internal mechanical processing to ensure lower pressure drop and higher refrigeration flow rate in joints
- suitable for HCFC, HFC and R744 (CO2) refrigerants, not suitable for ammonia
Technical Features
| SKU | ANSI/ASME B1.1 THREAD (male) | CONNECTION | MAXIMUM RECOMMENDED PRESSURE | MATERIAL |
|---|---|---|---|---|
| 19105 | 7/16" - 20 UNF | 1/4" | 140 bar | brass |
| 19106 | 5/8" - 18 UNF | 3/8" | ||
| 19107 | 3/4" - 16 UNF | 1/2" |
