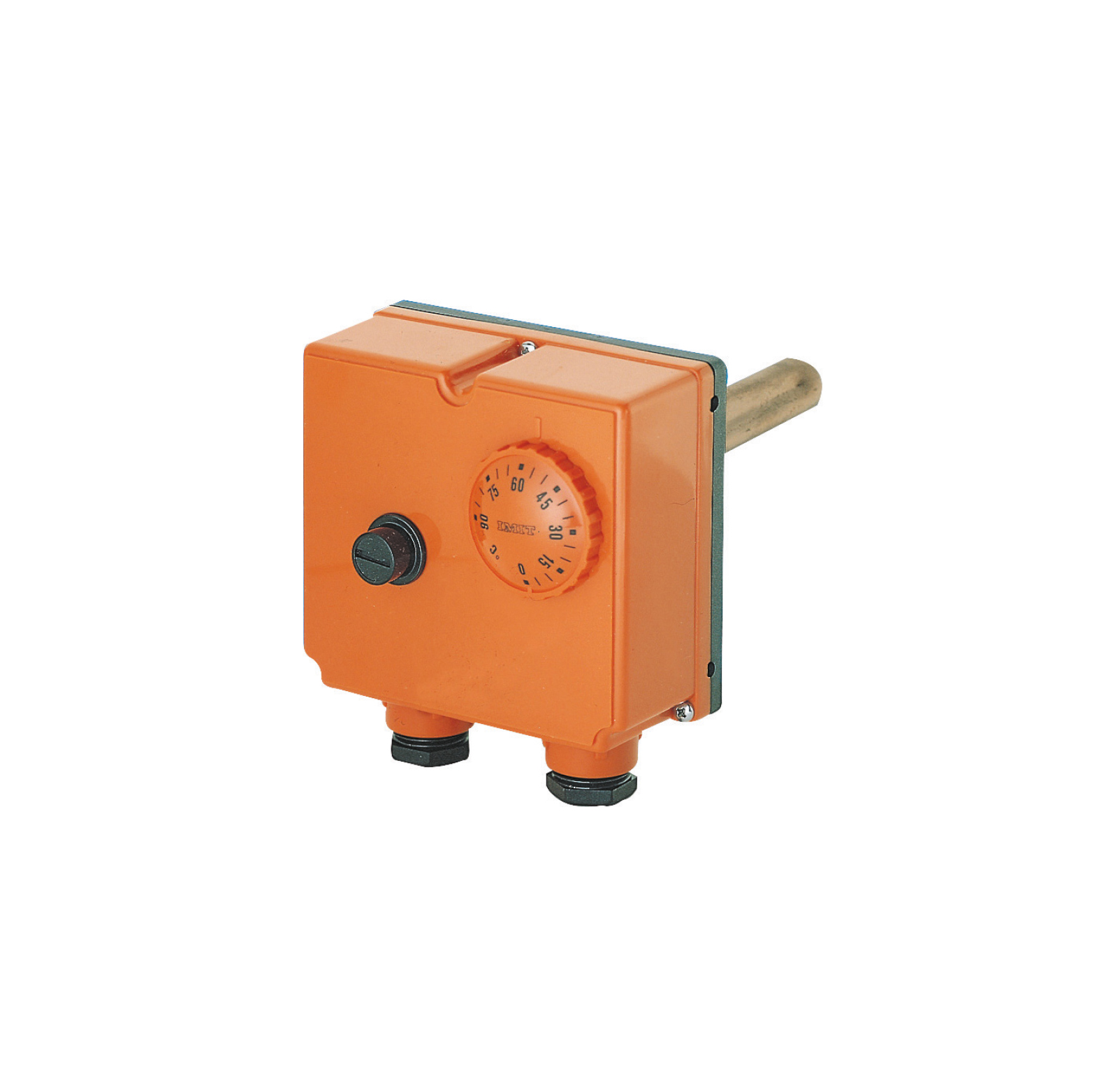

Boxed Immersion Bithermostat
Equipped With liquid expansion probe
CE, ENEC03, DIN, PED AND EAC APPROVED
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000R02909 |
REPLACEMENT COCKPIT FOR BITHERMOSTAT Mod. TLSC |
€25,95 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000R03097 |
BOXED IMMERSION BITHERMOSTAT WITH LIQUID EXPANSION PROBE - 0°C ÷ 90°C |
€97,65 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Double boxed immersion thermostat, with liquid expansion probes, unipolar, temperature regulator and temperature limiter, fail-safe for capillary breakage, complete with watertight protection sheath. Particularly suitable for appliances where temperature control and safety is required.
Technical Features
| ELECTRICAL CONTACT CAPACITY | 10 (2,5) A / 250 Vac |
|---|---|
| CONTACT | interrupted due to temperature increase or exchange |
| MAXIMUM HEAD TEMPERATURE | 80°C |
| MAXIMUM BULB TEMPERATURE | 125°C |
| TEMPERATURE RANGE | 0°C ÷ 90°C - safety 100°C |
| THERMAL GRADIENT | 1°K/min |
| DEGREE OF PROTECTION | IP40 (not protected against the ingress of liquids, but protected against the ingress of solid objects larger than 1 mm) |
| SHEATH CONNECTION | G1/2" |
| SHEATH LENGTH | 100 mm |
