Ball Tap with Thread for Pressure Point
Equipped with T-handle closing
COMPLIANT WITH UNI 7129/08 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000004240 |
GAS BALL TAP - 3/4" FF |
€37,80 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000004241 |
GAS BALL TAP - 1" FF |
€49,80 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

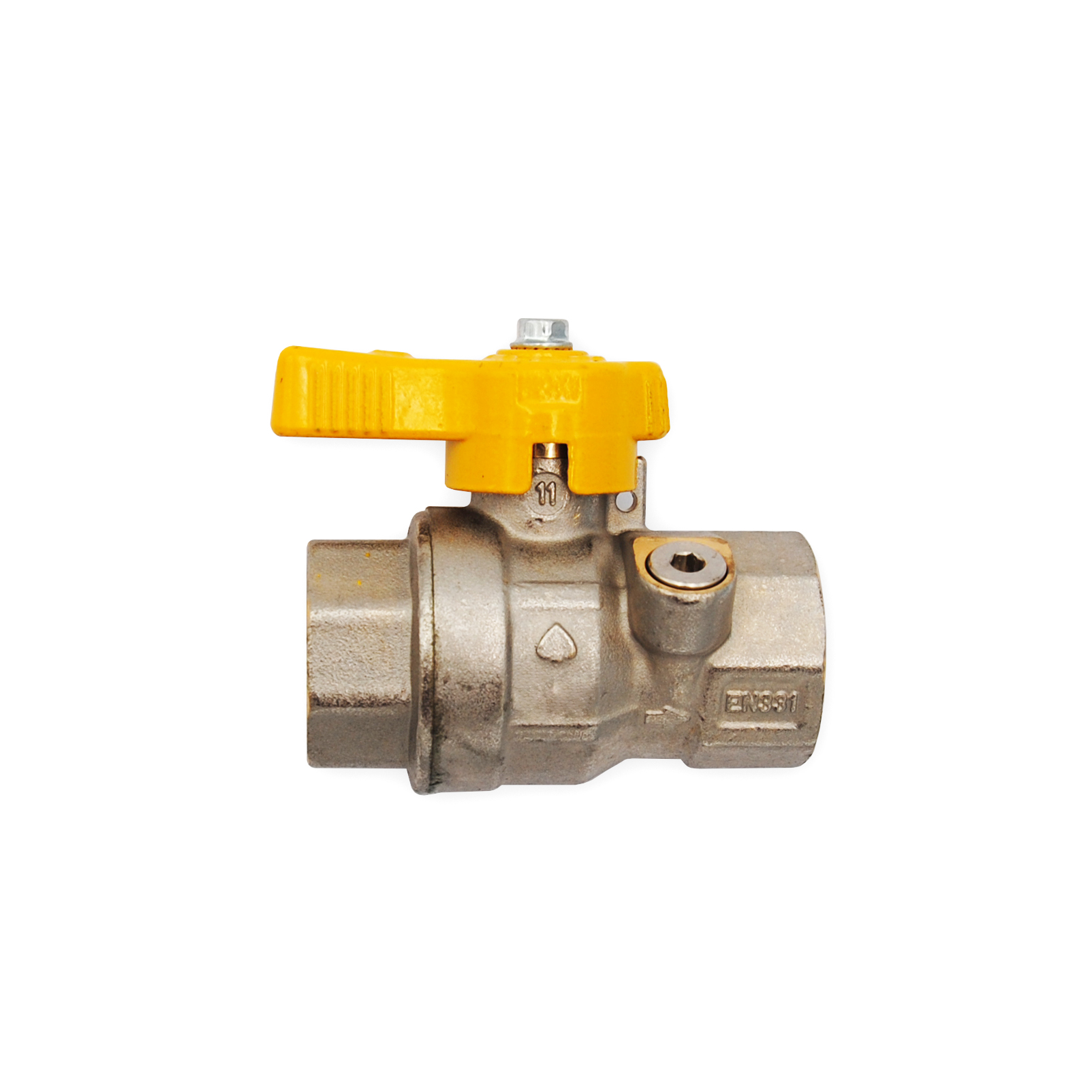

Ball tap for checking the internal system with sealable yellow asymmetric butterfly and full bore; equipped with a Ø 1/8" pressure tap thread put in the valve body.
Technical Features

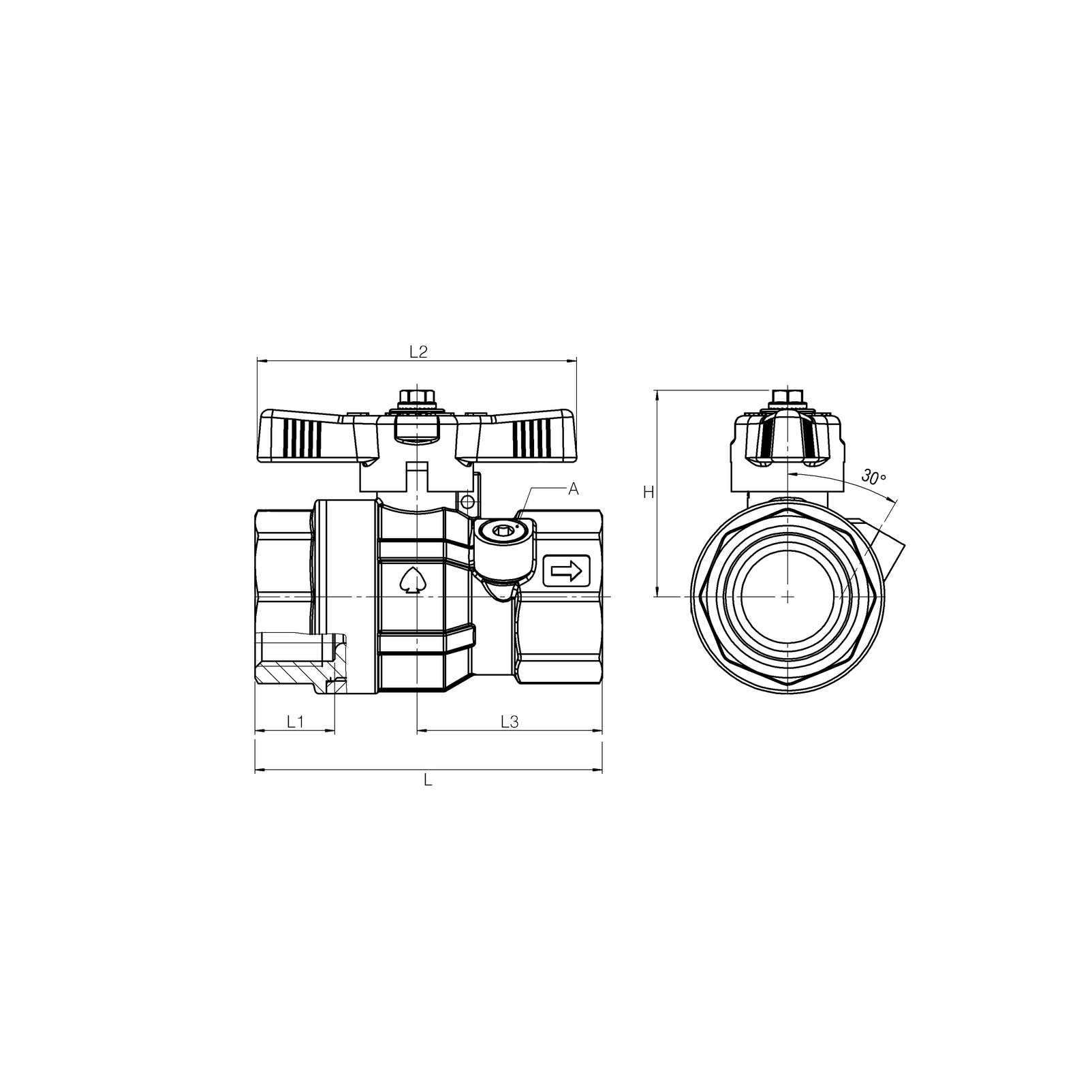

| SKU 4240 | SKU 4241 | |
|---|---|---|
| L | 71 mm | 82,5 mm |
| L1 | 16,3 mm | 19 mm |
| L2 | 56 mm | 76 mm |
| L3 | 38 mm | 44 mm |
| H | 47 mm | 49 mm |
| A | G 1/8" | G 1/8" |
| CONNECTION | 3/4" FF | 1" FF |
