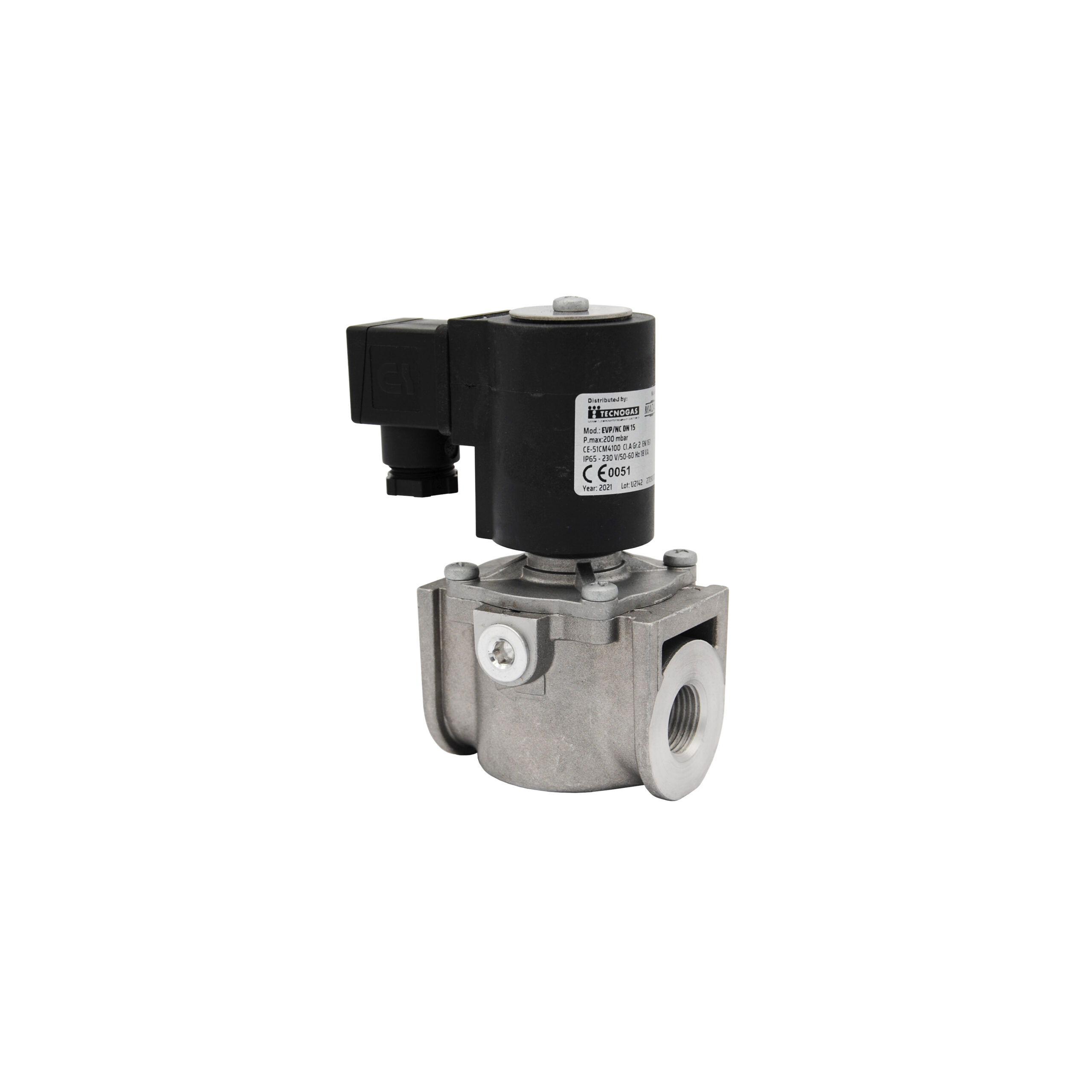

Automatic Threaded Solenoid Valve for Gas EVP – EVPC NC Type

Normally closed with fast opening, max. pressure 200 mbar

ALSO AVAILABLE WITH FLOW RATE REGULATOR, ASK OUR SALES OFFICE FOR A QUOTATION

sku	model	price	info	add to cart
00000050360	AUTOMATIC SOLENOID VALVE FOR GAS EVPC TYPE - 1" FF - 200 mbar	€145,30 Excl. Taxes	Physical data UM Base: NR Dimension: 15 × 12 × 8 cm Volume: 0.0014 m³ Weight: 0,86 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Automatic Threaded Solenoid Valve for Gas EVP - EVPC NC Type quantity Buy Info Request
00000050383	AUTOMATIC SOLENOID VALVE FOR GAS EVPC TYPE - 1/2" FF - 200 mbar	€118,00 Excl. Taxes	Physical data UM Base: NR Dimension: 15 × 12 × 8 cm Volume: 0.0014 m³ Weight: 0,98 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Automatic Threaded Solenoid Valve for Gas EVP - EVPC NC Type quantity Buy Info Request
00000050384	AUTOMATIC SOLENOID VALVE FOR GAS EVPC TYPE - 3/4" FF - 200 mbar	€118,00 Excl. Taxes	Physical data UM Base: NR Dimension: 15 × 12 × 8 cm Volume: 0.0014 m³ Weight: 0,90 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Automatic Threaded Solenoid Valve for Gas EVP - EVPC NC Type quantity Buy Info Request
9383	ELETTROV. AUTOMATICA EVP/TE NC CLASSE A DA 1/2" 230Vac 200mb	€107,00 Excl. Taxes	Physical data UM Base: NR Dimension: 15 × 12 × 8 cm Volume: 0.0014 m³ Weight: 0,98 kg Minimum Order Quantity: 1 Customs data Customs Code 84169000	Automatic Threaded Solenoid Valve for Gas EVP - EVPC NC Type quantity Buy Info Request

Product informations

Automatic solenoid valves for gas Mod. COMPACT, normally closed with fast opening; opens the gas flow when the coil is electrically powered and closes it when the voltage is cut off.

Available on request also the version for BIOGAS (+ 10% on the cost).

Technical Features

*USE*	not aggressive gases of the three families (dry gases)
*ROOM TEMPERATURE*	- 20°C ÷ + 60°C
*SUPPLY VOLTAGES*	230 V 50 - 60 Hz (only single-phase, the device does not work if powered with three-phase voltage)
*ELECTRICAL WIRING*	strain relief M20x1.5
*ABSORBED POWER*	230 V = 18 VA (SKU 50383 / 50384) 230 V = 30 VA / 9 VA (SKU 50360)
*MAXIMUM WORKING PRESSURE*	200 mbar
*N° CYCLES/HOUR*	1800 cycles/hour ON=1s OFF=1s (SKU 50383 / 50384) 1000 cycles/hour ON=1s OFF=1s (SKU 50360)
*OPENING TIME*	< 1 s
*CLOSING TIME*	< 1 s
*DEGREE OF PROTECTION*	IP65 (protected against jets of water pumped from any direction and completely hermetic against dust and fumes)
*CLASS*	A
*MATERIALS*	aluminum body
*MECHANICAL STRENGTH*	group 2
*FILTERING ORGAN*	wire mesh with 1 mm
*CONNECTIONS*	1/2" FF - 3/4" FF - 1" FF (according to EN 10226)
*COMPLIANCE*	Regulation (EU) 2016/426 (appliances that burn gaseous fuels) EMC Directive 2014/30/EU LVD Directive 2014/35/EU RoHS II Directive 2011/65/EU

Download

Download Product Data Sheet

Data Sheets

Data Sheet Scheda Tecnica Fiche Technique Ficha De Datos
