AIRLYTE

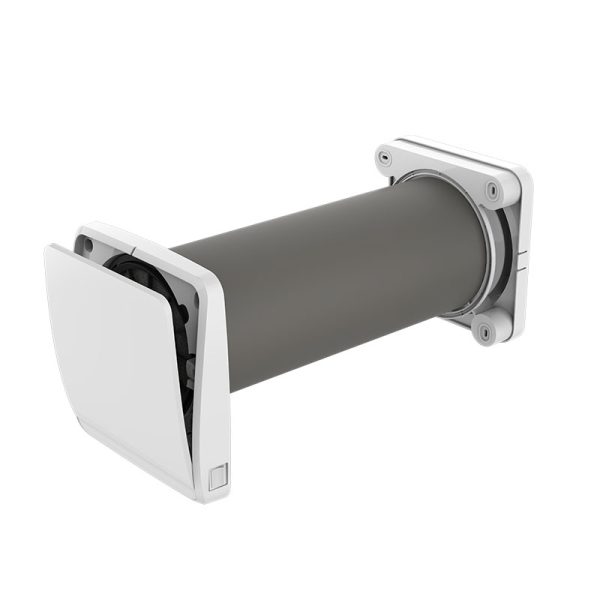

The single room system AIRLYTE si an aerator with ceramic heat recovery with efficiency up to 93%. It is ideal for single domestic applications, such as dining room, living room and bed room. The shutter prevents undesired external entry wihile tuned off. The front cover is in ABS.

SPECIFICATIONS
Heat recovery unit equipped with DC ball bearing motorimpeller, brushless with electronic commutation and separate dust filters. It is possible adjust air flow (speed) using a dedicated remote control.

OPERATION
The product is supplied with a ceramic heat exchanger that accumulates heat during the extraction of hot air coming from the room while, during the air intake from the outside, the device transfers to the inlet cold air, the thermal energy stored in the heat exchanger. The product runs 70 seconds in extraction and 70 seconds in intake reversing the cycle with open tilting front cover.

Available versions:
The AIRLYTE 1.0 version’s main technical features:
- ON/OFF
- Up to 3 speeds, adjustable via remote control;
- Possibility to control by remote (wall switch not supplied).
The AIRLYTE 2.0 version’s main technical features:
- Wire connection between master and slave units;
- PLUS remote control;
- Integrated humidity and twilight sensors which allow several automatic functioning modes (see remote control);
- Up to 16 units communicating in sequence in the same system in master/slave mode, through easy dip switches configuration;
- 3 adjustable speeds (plus night version).

Available accessories for AIRLYTE 1.0 and AIRLYTE 2.0
The AIRLYTE 1.0 model comes with a three-button remote control (SKU 14399) that allows you to switch the device on and off and adjust the three preset speeds.

The AIRLYTE 2.0 model comes with a remote control featuring several buttons (SKU 14417) that allow you to control various functions, including adjusting the airflow speed, controlling humidity, directing the airflow, selecting automatic or manual mode, and activating the night mode. Furthermore, it allows you to manage up to 16 devices in a master/slave system with simple configuration via DIP switches.

AIRLYTE 2.0 optional accessories
For the AIRLYTE 2.0 version only, you can optionally purchase a remote control with an LCD display (SKU 14415), which performs the same functions as the standard remote control, but features a more elegant and modern design. You can also purchase the remote control panel with display (SKU 14416), which includes the same functions as the remote control.
