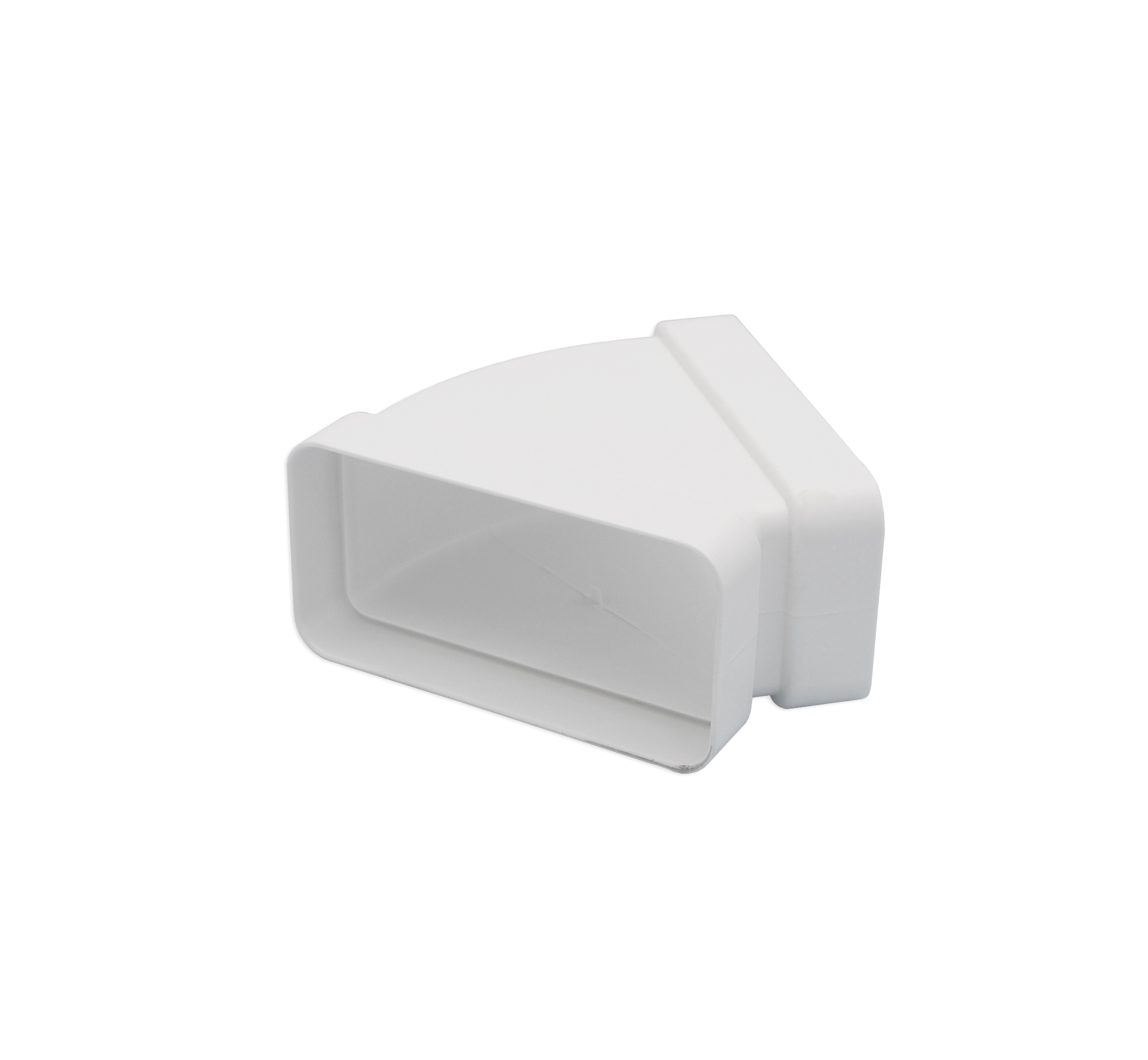

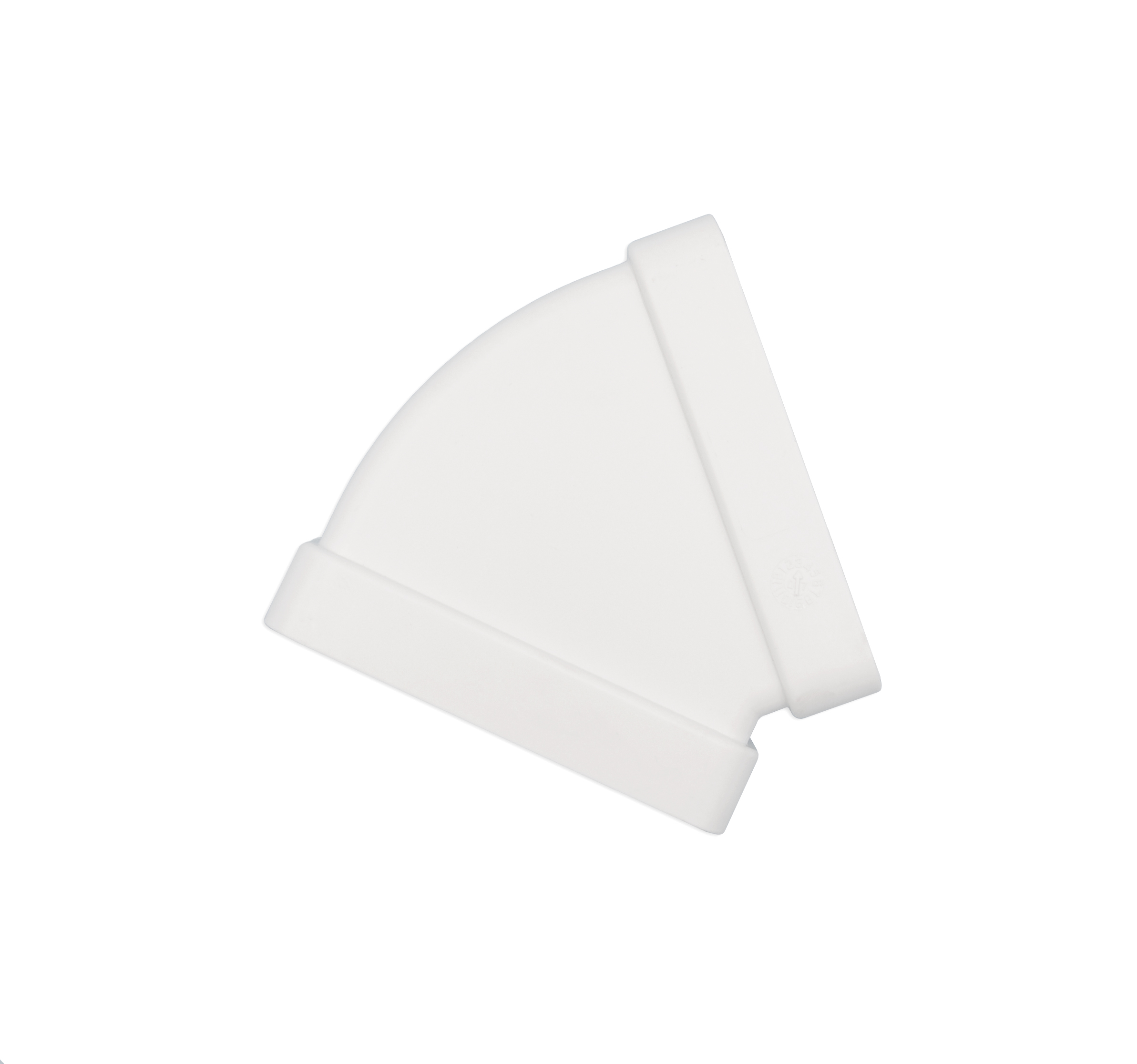

Rectangular/horizontal 45° elbow
for duct mod. AIR-FLOW
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000012647 |
 ELBOW 45° RECTANGULAR / HORIZONTAL AIR-FLOW - 55 x 110 mm |
€5,25 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Elbow 45° rectangular / horizontal compatible with AIR-FLOW duct Rectangular.
The installation is recommended for hygro-adjustable systems, VMC systems and for hood smoke evacuation, without the risk of damage caused by humidity.
Technical Features
| MATERIAL | self-extinguishing thermoplastic material V0 |
|---|---|
| MAXIMUM USE TEMPERATURE | 80°C |
| USE | on VMCs with flow < to 300 m3/h the Ø 100 mm and < to 600 m3/h the Ø 125 mm |
| AVAILABLE DIMENSIONS | 55 x 110 mm |
